Suzuki TS125X Service & Repair Manual, 1984–1987

This Suzuki TS125X service manual contains the TS125XE base material and separate factory service-data sections for the TS125XF (1985), TS125XG (1986), and TS125XH (1987). The XG and XH data sheets are labeled TS125X/XU.

PDF Bookmarks and Wiring Detail

Search, navigation, and legibility: PDF text search is not available. Nine embedded bookmarks provide access to the main sections and the combined model-year data block. Small wiring labels require enlargement, and some remain difficult to distinguish in densely labeled areas.

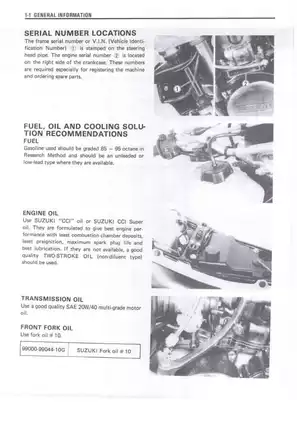

The ZIP download contains one printable, 186-page PDF: 168 pages of base-manual material and six pages each of XF, XG, and XH service data. The total includes the group index, section dividers, and a duplicate of printed page 7-6.

Engine Overhaul, CCI Testing, and Chassis Service

The following are selected contents, rather than a complete table of contents. Other topics include air-cleaner maintenance and cylinder, cylinder-head, and muffler decarbonizing.

• Engine and transmission: Step-by-step instructions for engine removal, disassembly, crankcase separation, crankshaft and transmission inspection, clutch repair, and reassembly.

• Carburetor and CCI lubrication: Mikuni VM24SS circuit descriptions, overhaul, needle-valve inspection, float adjustment, oil-pump cable synchronization, bleeding, and discharge testing.

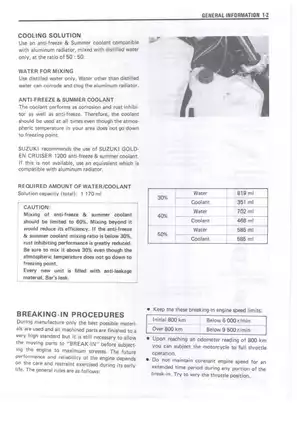

• Cooling system: Radiator leak and cap tests, thermostat bench testing, water-pump repair, coolant replacement, air bleeding, and temperature-sender inspection.

• Brakes and suspension: Drum-brake service, E-18 front disc-brake repair, fork overhaul, steering-stem service, wheel inspection, and full-floating suspension bearing replacement.

• Electrical diagnosis: CDI ignition and charging-system tests, battery service, switch and meter checks, market-specific wiring diagrams, and harness routing views.

• Workshop reference: Troubleshooting charts, component-specific torque data, wear limits, model-year service tables, and a 43-item special-tool index with factory part numbers.

Its repair depth is suited to experienced mechanics and advanced DIY owners who are comfortable using pullers, precision measuring instruments, electrical test equipment, and hydraulic-brake service tools.

Model-Year Data and Coverage Limits

The TS125XE material forms the main body of the manual. The XF section directs readers back to the base chapters for information it does not repeat. Year-specific tables distinguish carburetor, cooling, electrical, battery, brake, and wheel specifications.

The XH section revises the CCI pump drive and output specifications, clutch-release adjustment, drive-chain designation, and portions of the electrical data. These distinctions help match inspection and adjustment data to the machine being serviced.

Page coverage: Printed pages 7-2, 7-8, 7-16, 7-20, 7-24, 8-4, and 8-7 are absent. The model-year pages are not consistently arranged in numerical order; these gaps and ordering issues matter when following chapter references.

Engine, Crankshaft, and Clutch Repair

Inspection coverage includes bearings and oil seals, connecting-rod condition, crankshaft runout, shift forks and gear grooves, clutch plates and springs, cylinder-head distortion, cylinder bore, piston rings, piston-pin fit, and reed-valve clearance.

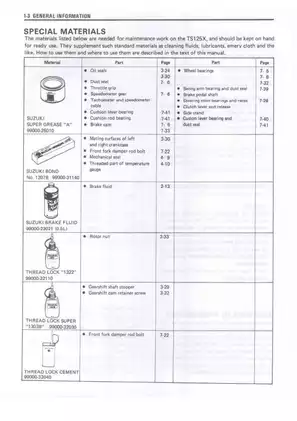

Oversize piston information, sealing materials, assembly references, and component-specific tightening data accompany the repair work. Transmission and clutch exploded views identify component positions, while reassembly notes distinguish the nearly identical shift forks and explain gearshift indexing.

The crankshaft cautions explain how hammering it into the crankcase can disturb its alignment. The tool index identifies the 09920-13120 crankcase separating tool and 09910-32812 crankshaft installer used for this work.

Fuel, Lubrication, and Cooling Diagnosis

The VM24SS section explains the slow, main, starter, and float circuits, connecting fuel-flow descriptions with inspection of overflow and fuel-level problems. Cleaning and reinstallation instructions accompany the overhaul material.

CCI output testing uses the 09900-21602 CCI oil gauge. Cooling illustrations show the circulation layout and water-pump assembly; the accompanying procedures address mechanical seals, sealing surfaces, and the temperature sender’s resistance response.

Electrical Tests and Market-Specific Wiring

Ignition and charging schematics accompany stator, pickup-coil, ignition-coil, generator-output, and regulator/rectifier tests. Separate checks cover combination-meter continuity, the water-temperature meter, switches, lamps, and battery charging.

Three wiring sheets cover E-02/E-18, E-04, and E-15/E-17/E-22 configurations. Main-harness, cable, hose, and breather routing views support component reconnection. Troubleshooting charts connect starting, running, transmission, clutch, carburetor, cooling, battery, and brake symptoms with possible causes.

Brakes, Forks, and Full-Floating Suspension

E-18 illustrations show the caliper and master-cylinder assemblies. Chassis work also covers wheel bearings, rim inspection, steering-head bearings, rear brakes, fork oil-level setup, and full-floating suspension bearings. The tool list includes the 09940-50112 fork oil-seal installer.

The brake-cam warning explains how excess grease can contaminate the linings and cause brake slippage. Safety material also addresses gasoline, hot coolant, battery charging, glycol-based brake fluid, and air bleeding after hydraulic-brake repair.

Selected Float-Height and CCI Test Specifications

The VM24SS float-height specification is 22.1 ± 1.0 mm for the XE base material and the XG/XH tables; the XF table specifies 26.0 ± 1.0 mm. The adjustment section identifies the measurement condition as the float arm just contacting the needle valve, with the gasket removed.

With the pump lever fully open, CCI discharge is specified as 2.1–2.5 ml over two minutes at 2,000 r/min for XE/XF/XG. The XH data instead specifies 1.4–1.7 ml under the same test conditions.
