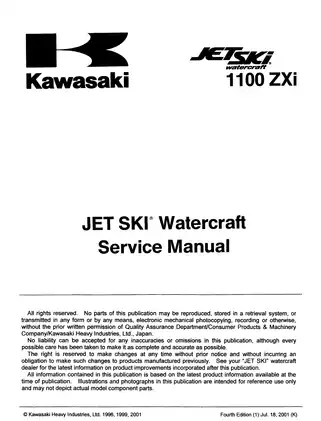

Kawasaki Jet Ski 1100ZXi 1996–2002 Service Manual (P/N 99924-1195-04)

Kawasaki’s factory service manual covers the 1996–2002 Jet Ski 1100ZXi, with the base procedures and integrated model-year supplements. P/N 99924-1195-04, Fourth Edition (1), is dated July 18, 2001.

PDF Search, Navigation and Wiring Detail

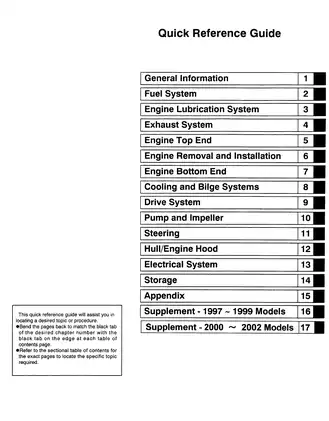

Search and diagram access: PDF text search and embedded bookmarks are not available. The printed quick reference guide and chapter contents provide navigation; small wiring-diagram labels require zooming for comfortable reading.

The ZIP contains one printable, English-language PDF with 236 pages, including six opening pages, five blank divider pages, and the rear model-application page. The integrated 1997–1999 and 2000–2002 supplements account for 37 and 9 pages of that total.

Engine, Jet-Pump and Trim Service

The following selected contents highlight the repair and diagnostic coverage rather than reproduce the full table of contents. Further topics include battery activation and hull-replacement preparation.

• Fuel system: Carburetor synchronization, removal, disassembly and inspection, plus throttle and choke adjustment for the original and later CV configurations.

• Oil injection: Oil-pump bleeding, delivery testing, removal and installation, with oil-tank and filter service.

• Engine repair: Step-by-step procedures for top-end disassembly and assembly, engine removal and installation, crankcase splitting, and crankshaft inspection.

• Drive and jet pump: Drive-shaft holder service, pump disassembly and assembly, bearing and seal replacement, and impeller inspection.

• Steering and trim: Cable adjustment and replacement, handlebar and steering service, electric-trim inspection, and Kawasaki Automatic Trim System troubleshooting.

• Electrical diagnosis: Model-specific wiring diagrams, charging and ignition tests, starter-motor service, and temperature, speed and fluid-level sensor checks.

• Cooling and seasonal care: Cooling and bilge flushing, hose inspection, exhaust-system service, storage preparation, and return-to-service checks.

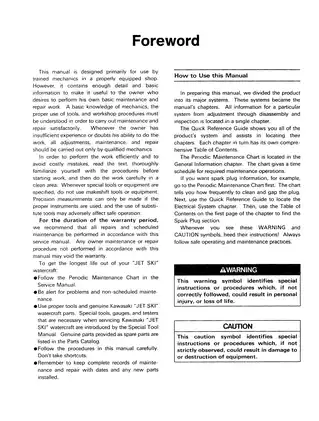

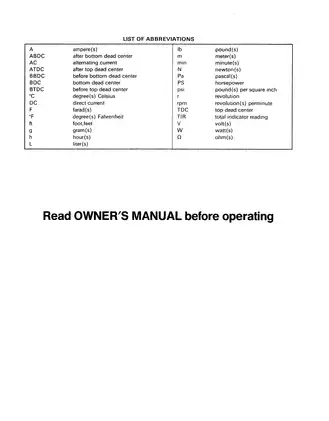

Written primarily for trained mechanics in a properly equipped shop, the manual also supports owners performing basic maintenance and repair who understand mechanics, tools, and workshop procedures.

Model Supplements and Fuel-System Differences

The supplement chapters must be used with the preceding sections: they document changes rather than repeat every service operation. The later fuel-system material covers the vacuum piston, diaphragm, jet needle, and check-valve assembly used by the CV carburetors.

The 2000–2002 specifications distinguish the N6PA jet needle on JH1100-A5 from the N6PD on JH1100-A6/A7. Separate hose-routing illustrations identify the A5/A6 and A7 arrangements, helping match the service information to the installed configuration.

Fuel, Lubrication and Engine Repair

Beyond carburetor overhaul, the fuel chapter covers mixture and idle adjustment, high-altitude calibration, float-arm inspection, reed valves, flame-arrester cleaning, and fuel-tank and filter work. Fuel-pump removal and replacement are covered; the pump unit is not intended to be disassembled.

Oil-injection coverage includes pressure and vacuum bleeding methods and a measured pump-output test. These procedures distinguish an oil-delivery problem from a general engine-performance complaint.

Engine inspection includes compression testing, cylinder wear, piston-to-cylinder clearance, boring and honing, piston rings, connecting-rod alignment and clearance, main-bearing condition, and crankshaft runout. Internal crankshaft disassembly is outside the procedure coverage; the manual directs assembly replacement or rebuilding by a properly equipped shop.

Drive-Shaft Alignment and Jet-Pump Wear

Drive-shaft holder installation includes coupling-alignment considerations, seal orientation, and shaft-runout checks. The pump chapter separates impeller damage, pump-case wear, and excessive clearance as possible causes of poor propulsion even when the engine runs properly.

Steering coverage includes cable and boot inspection, ball-joint adjustment, bushings, and steering-shaft installation. The later supplement identifies the cable-nut installation requirements.

Electrical Tests and KATS Diagnosis

Electrical coverage includes battery charging, starter-relay checks, starter-motor brush and commutator inspection, charging and exciter coils, regulator/rectifier testing, ignition coils, CDI testing, switches, and fuses.

KATS information distinguishes the original system’s 2,000-rpm threshold from the 1997–1999 system’s 4,000-rpm threshold and added level-sensing switch. Diagnostic trees cover the trim-meter LED, control unit, main harness, trim motor, handlebar switch, igniter output, and trim-angle sensor.

The CDI test specifies Hand Tester 57001-1394; an unsuitable high-energy meter can damage the igniter. The trim-sensor inspection also warns that forcing the sensor plate beyond its permitted travel can damage the sensor.

Cooling, Exhaust and Hull Service

Cooling and bilge coverage includes breathers, filters, hose routing, and flushing. Exhaust procedures cover the expansion chamber, manifold, and water-box muffler, including inspection for carbon deposits, corrosion, and heat damage.

Hull material covers bumpers, rubber parts, air-intake ducts, and Kawasaki Air Induction System (KAIS) inspection. Storage instructions address fuel, engine protection, battery care, lubrication, and recommissioning.

For cooling-related service and testing, the manual warns that inadequate cooling water can severely damage the engine and exhaust, while excessive auxiliary-water flow can flood the cylinders and cause hydraulic lock.

Workshop Drawings and Special Tools

Reference illustrations include the Fuel System Diagram, Cable, Wire and Hose Routing, model-specific Wiring Diagrams, Crankshaft Assembly Specifications, pump exploded views, and KATS Troubleshooting charts. Exploded views identify torque, lubrication, sealant, and locking-agent locations.

Tool callouts include Compression Gauge 57001-221 with M14 × 1.25 Adapter 57001-1159, Flywheel Holder 57001-1313, Coupling Holder 57001-1230, Bearing Driver Set 57001-1129, and Oil Seal & Bearing Remover 57001-1058. Later steering work specifies the 27 mm Box Wrench 57001-1451; sealant references include Kawasaki Bond 56019-120 and Liquid Gasket-Black 92104-1003.

A Preview of Compression and Wear Specifications

Cylinder compression has a usable range of 657–1,040 kPa (95–151 psi), measured with the engine warmed and throttle fully open. Top and second piston-ring end gaps are specified at 0.25–0.40 mm, with a 0.70 mm service limit.

Crankshaft runout is specified below 0.04 mm TIR, with a 0.10 mm service limit at either illustrated measuring location. Jet-pump impeller clearance is 0.15–0.30 mm, with a 0.60 mm service limit.
