Kawasaki ZR-7S (ZR750-H1–H5) Service Manual, 2000–2005 (P/N 99924-1269-05)

This Kawasaki ZR-7S Motorcycle Service Manual covers ZR750-H1 through H5. It is the fifth edition, dated January 25, 2005, corresponding to Kawasaki P/N 99924-1269-05.

PDF Search, Bookmarks, and Page Order

Search and diagram detail: OCR text is searchable across most pages, with gaps in illustration labels. Three bookmarks identify file parts rather than chapters. Small wiring labels require enlargement, and some diagrams show text from the reverse side. From PDF p. 289, the Appendix runs backward, followed by the remaining Electrical System pages in reverse order.

The ZIP contains one printable, English-language 358-page PDF, including six front-matter pages, five blank pages, and one electrical placeholder page.

Carburetor, Engine, and Chassis Repair

These selected repair topics provide a preview rather than a full contents list. Additional sections cover air-cleaner servicing and fuel-tank and fuel-tap inspection.

• Fuel system: Keihin CVK32 carburetor synchronization, float and service fuel-level adjustment, carburetor disassembly, and reassembly of the carburetor bank.

• Engine repair: Engine removal and installation, cylinder-head disassembly, camshaft timing, valve-clearance inspection, valve-guide replacement, and piston-ring inspection.

• Drivetrain service: Crankcase splitting, wet multi-disc clutch service, transmission disassembly, and starter-clutch repair.

• Brakes and front end: Brake-caliper and master-cylinder rebuilding, brake bleeding, front-fork overhaul, and steering-stem bearing replacement and adjustment.

• Electrical diagnosis: Battery-condition checks, alternator-output testing, regulator/rectifier diagnosis, IC igniter operation checks, and starter-motor inspection.

• Routing and wiring: 20 pages of cable, wire, and hose routing diagrams show harness placement and control, brake, and emissions routing; separate wiring diagrams identify regional configurations.

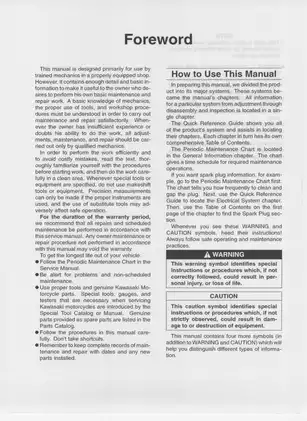

Written primarily for trained mechanics in a properly equipped shop, the manual also supports basic owner maintenance and repair when the reader understands mechanics, tools, and workshop procedures.

Market-Specific Maintenance and Fuel Equipment

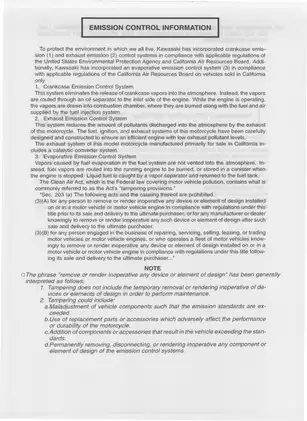

Periodic maintenance charts distinguish U.S., Canadian, and Taiwan models from other markets, including Europe. Emission-control information identifies the California catalytic-converter configuration.

California and Taiwan evaporative-emissions coverage includes separator operation testing and canister inspection. Electric carburetor-heater equipment is addressed for markets other than the U.S., Canada, and Taiwan.

Carburetor specifications distinguish the jet needles and needle-jet holders used in the outer cylinders from those in the inner pair. Fuel-level procedures specify Kawasaki Fuel Level Gauge 57001-1017 for checking the float-bowl fuel level.

The carburetor-cleaning cautions explain how compressed air applied to an assembled carburetor can crush the floats and damage the vacuum-piston diaphragm.

Internal Engine and Transmission Repair

The DOHC engine chapters include wet-sump lubrication with an oil cooler. The Valve Clearance Adjustment Chart supports shim selection, while the Valve Seat Repair flowchart guides seat correction. Compression-test guidance links abnormal readings to possible mechanical faults.

Bottom-end coverage includes selection tables for crankshaft main bearings and connecting-rod big-end bearings. Step-by-step transmission assembly instructions address drive-shaft and output-shaft gear adjustment and the positive neutral finder.

Clutch inspection data distinguish cork-base and paper-base friction plates and show their positions in the clutch pack. Lubrication-system procedures cover oil-pressure testing, oil-pump service, and relief-valve inspection.

Cam-chain tensioner cautions explain the risk of chain and tensioner damage when a partially loosened, non-return tensioner is retightened.

Brakes, Suspension, and Final Drive

Brake-disc specifications distinguish H1–H2 from H3-onward models; the brake-lever adjustment section identifies the H4-onward change.

Uni-Trak suspension coverage includes swingarm, tie-rod, and rocker-arm bearing service. Rear-shock coverage is limited to removal, installation, rebound damping, and spring preload; internal damper overhaul is outside its scope.

Drive-chain replacement includes riveting and staking checks, with sprocket and coupling-damper inspection procedures. Wheel-bearing replacement, rim and axle runout checks, and fairing and windshield removal are also covered.

Electrical Fault Tracing and Reference Tables

Wiring layouts separate U.S./Canada/Taiwan, Australian, and other-market versions. Other-market diagrams distinguish H1–H2 from H3-onward models, helping the reader select the applicable circuit before tracing faults.

The Charging System Circuit, Carburetor Heater Circuit, and Junction Box Internal Circuit diagrams support charging, heater-control, relay, and diode diagnosis. The junction-box diagrams identify H3–H4 N and NU configurations.

Throttle-sensor coverage includes voltage checks and position adjustment. Ignition-coil and crankshaft-sensor peak-voltage tests specify Kawasaki Peak Voltage Adapter 57001-1415. The troubleshooting guide connects starting, running, shifting, braking, and handling symptoms with likely causes.

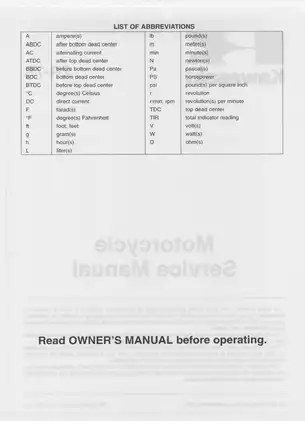

Reference tables supply component-specific torque and locking-agent requirements, fluid capacities, wear limits, clearances, and electrical test values.

For brake work and major mechanical overhauls, follow the manual's safety precautions and use a qualified technician whenever the work exceeds your experience.

Selected Valve, Oil-Pressure, and Carburetor Test Data

The cold-engine valve-clearance specification is 0.08–0.18 mm for both intake and exhaust valves. Oil-pressure test data specify 100 kPa at 3,000 rpm with the oil at 80°C.

For carburetor synchronization, the specified vacuum difference is less than 2.7 kPa between any two carburetors at idle with the engine fully warmed.
