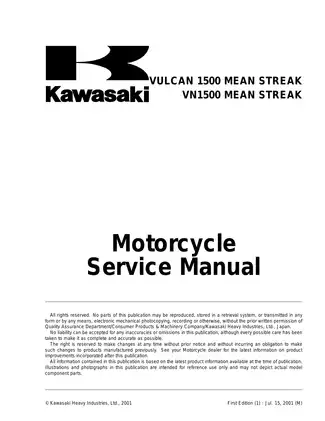

Kawasaki Vulcan 1500 Mean Streak (VN1500-P1) Service Manual, 2002–2003 (P/N 99924-1277-01)

Kawasaki’s first-edition factory service manual for the Vulcan 1500 Mean Streak (VN1500 Mean Streak) is dated July 15, 2001 (P/N 99924-1277-01). For the 2002–2003 model-year range, coverage is limited to VN1500-P1. VN1500-P2-specific service information falls outside this edition’s scope.

PDF Search, Bookmarks, and Wiring Detail

Text and diagram navigation: Search the manual text or use bookmarks for the cover and all 17 chapters. Small wiring labels, connector numbers, and wire color codes require zooming. Labels within the diagram images are outside the text search.

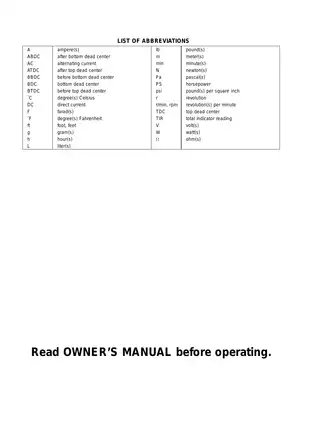

The ZIP contains one printable, 481-page PDF, including the title page, four pages of front matter, and two blank pages.

DFI Diagnosis, Engine Repair, and Shaft-Drive Service

These selected workshop topics are part of the manual’s coverage. Other procedures include automatic turn-signal canceling checks and radiator fan circuit testing.

• Maintenance and cooling: Scheduled service chart, coolant changes, cooling-system pressure testing, thermostat inspection, and water pump mechanical seal replacement.
• DFI diagnosis: Fault-code reading and circuit tests for ECU power, the DFI main relay, throttle, pressure and temperature sensors, ISC valves, injectors, and the in-tank pump.
• Engine repair: Step-by-step procedures for engine removal and installation, camshaft and cam-chain service, cylinder compression testing, hydraulic lash adjuster bleeding, and cylinder head repair.
• Clutch and transmission: Hydraulic clutch bleeding and overhaul, crankcase separation, starter clutch and torque limiter inspection, transmission disassembly, and shift-mechanism checks.
• Shaft drive: Propeller shaft service, front and final bevel gear case overhaul, pinion bearing preload, shim selection, and tooth contact inspection.
• Chassis: Wheel and tire service, hub bearing replacement, front and rear brake work, inverted fork overhaul, air shock adjustment, swingarm and steering stem service, and frame inspection.
• Electrical testing: Regional wiring diagrams, charging voltage and alternator tests, starter motor overhaul, and starter relay and interlock checks.

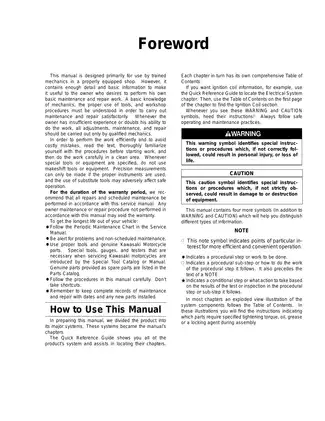

Kawasaki wrote the manual primarily for trained mechanics in an equipped shop, with basic maintenance and repair guidance for owners familiar with workshop tools and procedures.

Market Variants and Emissions Equipment

Model identification shows both sides of the U.S./Canadian and European versions. The gearing tables distinguish California, Canada, and the U.S. from other markets, and the DFI chapter identifies ECUs by market.

Wiring diagrams are grouped for Canada and the U.S., Australia, and other markets. The Junction Box Internal Circuit drawings group Australia with Canada and the U.S. and show a separate circuit for other markets.

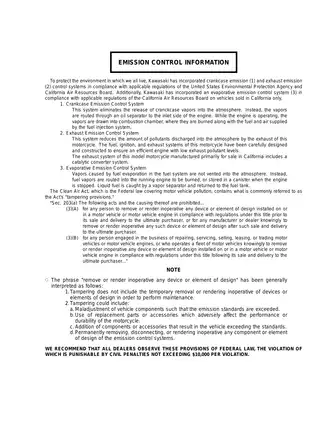

California coverage includes canister, liquid/vapor separator, and vapor-hose inspection and routing. The Australian model uses a non-catalyst premuffler chamber. For further KLEEN and secondary-air information, Kawasaki refers to the separate VN1500 G/H Service Manual (Part No. 99924-1241).

Fuel, Engine, and Drivetrain Troubleshooting

The fuel pressure and flow tests help separate a fuel-delivery problem from an electrical DFI fault. The manual explains how to read the FI indicator, check injector signals and resistance, and test the pump supply. The ECU retains stored codes after key-off or battery disconnection.

The separate non-DFI troubleshooting guide covers starting, poor running at low or high speeds, overheating, clutch and shift problems, drivetrain noise, handling, brakes, warning lights, and charging. Follow the manual’s battery isolation and residual fuel-pressure precautions during DFI service. Running the in-tank pump dry can seize it.

Engine checks cover the clean-air system, KACR, rocker cases, valve guides and seats, pistons, rings, and cylinders. The lubrication chapter covers oil flow, oil pressure testing, and pump and relief valve inspection. Internal drivetrain procedures include crankshaft and connecting rod inspection, shift drum and fork checks, bearing replacement, and oil seal work.

The final-drive chapter illustrates drive- and coast-side tooth contact patterns for shim selection. Continuing to tighten the gear case after backlash disappears can bind and damage the bevel gears.

Routing, Diagrams, and Service Tools

The 29-page routing section traces throttle and choke cables, fuel supply and return lines, cooling hoses, brake and clutch hydraulics, harness branches, connectors, and California evaporative-emission lines.

Named references include DFI Parts Location, DFI System, DFI Wiring Diagram, Coolant Flow Chart, and Engine Oil Flow Chart. Chapter exploded views identify torque and locking-agent requirements. Reference tables supply fluid specifications, service limits, clearances, and electrical test values.

The special-tool listings identify the Hand Tester 57001-1394, Fuel Pressure Gauge Adapter 57001-1417, Fork Oil Level Gauge 57001-1290, and Final Gear Case Holder 57001-1250.

Fuel Pressure and Final-Drive Backlash Examples

With the engine stopped, the DFI fuel-line check specifies 310 kPa just after key-on with the pump running. The residual pressure specification is 280 kPa after the pump stops at about three seconds.

For final bevel gear setup, the manual specifies 0.10–0.15 mm (0.0039–0.0059 in.) of backlash at the ring gear hub splines and provides a shim selection table for adjustment.
