Honda Models Covered & Key Technical Specifications

Model: VFR400R

Sub-models / Variants: E (U.K.), AR (Austria), F (France; M model only), G (Germany; M model only)

Model Years: 1986–1992 (1986, 1987, 1988, 1989, 1990, 1991, 1992)


  • Engine: Liquid-cooled 90° V4, DOHC, 4 valves per cylinder

  • Displacement: 399 cc

  • Bore x Stroke: 55.0 x 42.0 mm

  • Compression Ratio: 11.3:1

  • Transmission: 6-speed

  • Lubrication System: Forced pressure and wet sump

  • Ignition System: Digitalized full transistor ignition

  • Cooling System Capacity: 2.1 liters (radiator and engine); M model: 2.0 liters

Honda Manual Features & Selected Content Preview

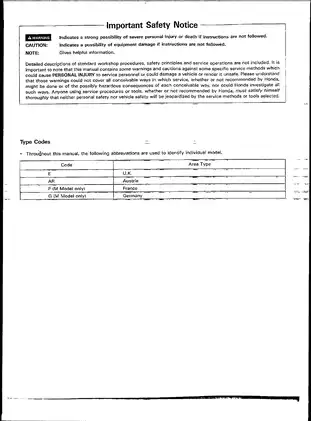

Honda’s VFR400R Model Specific Service Manual was issued by Honda Motor Co., Ltd., Service Publication Office, in February 1990. It identifies E (U.K.) and AR (Austria) types, with F (France) and G (Germany) data marked for the M model only. This publication is intended to be used with the separate Honda Common Service Manual.

PDF Search, Wiring Detail, and File Layout

Text search and diagram viewing: PDF text search and embedded bookmarks are not available in any of the five files. Small wiring-diagram labels require zooming; some fine lettering remains soft at higher magnification.

The ZIP download contains 226 printable pages across five English PDF files: VFR400R_C01, 41 pages; VFR400R_C03, 43 pages; VFR400R_C07, 50 pages; VFR400R_C12, 49 pages; and VFR400R_C15, 43 pages. The total includes four introductory and reference pages, one memo page, and the two-page index.


Engine, Chassis, and Electrical Service

The following highlights are a selection of the manual’s contents. Other included topics cover body-panel and exhaust-system removal, plus an explanation of the cylinder-head and spark-plug design.

  • Engine repair: Engine removal and installation, cylinder-head and valve service, camshaft and cam-gear-case timing, piston work, crankcase separation, and bearing selection.

  • Clutch and transmission: Clutch removal and installation, diaphragm-spring assembly, gearshift-linkage repair, shift-drum and fork work, and transmission-shaft disassembly.

  • Fuel, lubrication, and cooling: Carburetor separation, overhaul, combination, and synchronization; fuel-valve service, oil-pump disassembly, thermostat replacement, water-pump service, and radiator removal.

  • Wheels, suspension, and brakes: Fork rebuilding, steering-stem bearing replacement, rear axle and bearing-holder repair, shock linkage and swingarm service, and master-cylinder and caliper overhaul.

  • Electrical diagnosis: Charging-system flowcharts, alternator and regulator/rectifier tests, ignition peak-voltage checks, starter repair, switch and gauge testing, and wiring diagrams.

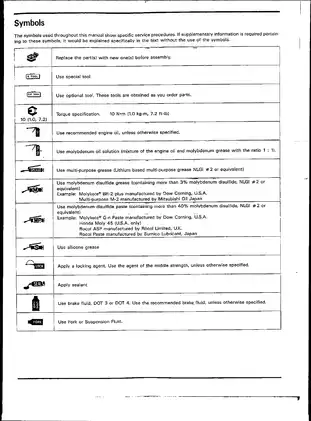

  • Specifications and tooling: Component torque tables, service limits, fluid capacities, clearances, bearing color-code charts, electrical test values, lubrication points, and Honda special-tool references.

Honda states that this manual is written for people with basic knowledge of Honda motorcycle maintenance. Mechanics and experienced owners also need the measuring equipment, service tools, and workshop skills required for the particular job.

Internal Engine Work and Repair Precautions

The engine sections distinguish work possible with the engine installed from repairs requiring removal and crankcase separation. Cylinder-head, camshaft, clutch, and gearshift-linkage service can be performed in the frame; piston, crankshaft, and internal transmission work requires deeper disassembly.

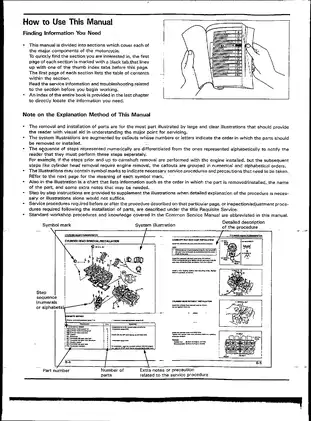

Step-by-step instructions supplement the exploded views and ordered parts charts for jobs such as camshaft installation and clutch assembly. Crankshaft and connecting-rod bearing selection uses factory identification codes and color charts, followed by oil-clearance checks.

Assembly details: Front and rear cam gear cases have separate identification marks, and incompletely seated dowel pins prevent proper timing-gear engagement. Mixing connecting rods with the wrong bearing caps can eliminate the required oil clearance and cause crankshaft seizure.

The clutch instructions distinguish the two black-faced end discs and explain the thrust-washer position needed for the diaphragm springs and locknut to seat correctly.

Carburetors, Lubrication, and Cooling

The fuel-system chapter covers the constant-velocity carburetor assembly down to the float chambers, vacuum pistons, jets, and pilot screws. Separate troubleshooting guidance addresses starting trouble, rough idle, stalling, and poor driveability.

The lubrication-system diagram and cooling-system flow pattern show how oil and coolant move through their respective circuits. Oil-cooler and oil-pump procedures accompany lubrication troubleshooting; cooling-system coverage includes leak inspection and overheating diagnosis.

Coolant refill procedures are referred to the Common Service Manual rather than reproduced in full.

Chassis Repair and Workshop Equipment

Chassis detail includes fork oil-seal installation, steering-stem race replacement and preload checks, rear axle needle-bearing replacement, and swingarm pivot-bearing service. The drive-chain instructions identify swingarm removal as necessary for replacing the original endless chain.

Brake-pad replacement and hydraulic component overhaul are covered, while standard brake-fluid draining and bleeding procedures are referred to the Common Service Manual. Tubeless-tire removal, repair, and remounting also rely on that companion publication.

Honda special-tool references include the 07HMA-MR70200 engine-mount locknut wrench, 07947-KA50100 fork-seal driver, 07HGJ-0020100 peak-voltage adapter, and 07733-0020001 rotor puller. Those references help determine whether a planned repair can be completed with the equipment already in the shop.

Electrical Fault Tracing and Wiring Sheets

Cable and harness routing views, the charging-system troubleshooting chart, and the starter-system circuit support electrical fault tracing. The full wiring sheets are identified as 0030Z-MR8-6000 and 0030Z-MR8-6100, with the latter labeled for F/G types.

Ignition tests compare measurements at the spark unit and pulse-generator connector to distinguish component faults from wiring problems. Ignition timing is factory preset; the manual provides inspection procedures rather than an adjustment procedure. Battery testing and charging are referred to the Common Service Manual.

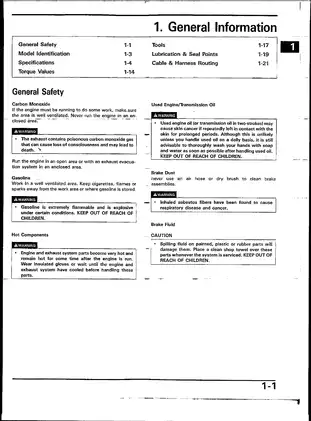

Fuel-system work, pressurized coolant, brake hydraulics, battery electrolyte, and the nitrogen-charged rear shock require proper shop precautions and protective equipment.

Valve-Clearance and Shim Specification Preview

For valve-clearance inspection with the engine cold, below 35°C, the manual specifies 0.12–0.18 mm at the intake valves and 0.21–0.27 mm at the exhaust valves. These values accompany the timing-mark illustrations and shim-removal instructions.

The shim-selection section lists thicknesses from 1.200 to 2.800 mm in 0.025 mm increments, together with a selection formula and a worked example.
