Yamaha RZ 500 1984–1986 Service Manual (P/N 52X-28197-70)

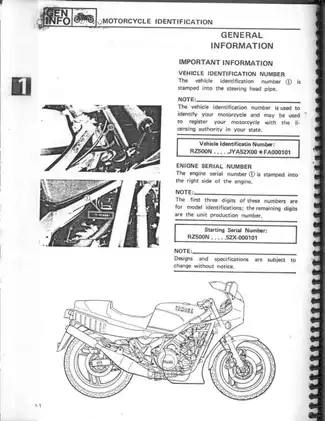

This 254-page PDF contains Yamaha RZ500N service-manual information for the liquid-cooled two-stroke engine, YPVS, carburetion, cooling, chassis, and electrical systems. Model identification is tied to vehicle identification number pattern *JYA52X00FA000101 and starting engine serial 52X-000101**, rather than blanket coverage for every RD500LC, RZ500, or RZV500R variant. Its teardown depth, precision inspection work, and reliance on Yamaha service tools make it best suited to professional technicians and experienced DIY owners with a properly equipped shop.

• Engine overhaul and repair: Documents engine removal and remounting, upper and lower cylinders and pistons, cylinder heads, reed valves, paired crankshafts, balancer shaft, crankcase, clutch, kick gear, transmission, and both lubrication pumps.
• Carburetion and YPVS service: Details carburetor removal, disassembly, inspection, reassembly, float-height and fuel-level adjustment, synchronization, throttle-cable setup, oil-pump bleeding, YPVS cable and link adjustment, power-valve inspection, and servomotor checks.
• Cooling-system repair: Covers coolant replacement and filling, water-pump service, thermostat testing, radiator-cap and system pressure tests, leak checks, plus fan-motor, thermo-unit, and thermo-switch diagnosis.
• Chassis overhaul: Walks through wheel and bearing service, chain and sprocket inspection, brake bleeding, pad replacement, caliper and master-cylinder repair, complete front-fork rebuilding, anti-dive service, steering-head work, and swingarm and relay-arm inspection.
• Electrical fault isolation: Uses circuit diagrams and troubleshooting charts for no-start, weak-spark, charging, lighting, turn-signal, oil-warning, temperature-gauge, cooling-fan, and sidestand-control faults, with component tests for coils, rectifier/regulator, switches, and the YPVS servomotor.
• Technical data and illustrations: Supplies component-specific torque tables, fluid specifications, wear limits, clearances, and electrical test values, supported by the Carburetor Section View, Coolant Flow layout, RZ500N Circuit Diagram, lubrication diagrams, cable-routing views, and exploded engine and chassis assemblies.

Engine and Drivetrain Depth

The engine chapter separates jobs that can be performed with the engine still in the frame: the pistons, clutch, and carburetors do not require complete engine removal. Full teardown coverage reaches both crankshaft assemblies, the balancer shaft, transmission shafts and gears, shift forks and cam, primary and zero-lash gears, clutch pack, kick-start mechanism, water pump, and engine- and transmission-oil pumps.

Inspection sections cover cylinder-head and cylinder condition, piston and ring wear, crankshaft runout and free play, clutch plates and springs, oil-pump clearances, transmission dogs, and shaft runout. Reassembly material addresses crankshaft and seal positioning, crankcase sealing and tightening order, balancer and primary-gear index marks, clutch-stack orientation, upper/lower piston identification, reed-valve position, YPVS linkage setup, cable routing, and final adjustments.

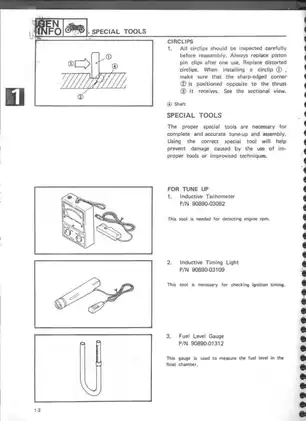

The special-tool pages identify the fuel-level gauge P/N 90890-01312, cooling-system tester P/N 90890-01325, flywheel puller P/N 90890-01362 with adapter P/N 90890-04063, universal clutch holder P/N 90890-04086, and fork-seal driver P/N 90890-01367 with adapter P/N 90890-01381.

Chassis, Electrical, and Repair Cautions

Chassis coverage is assembly-specific. The manual treats the anti-dive valve and gas-charged rear shock as non-disassemblable units, while providing removal, inspection, installation, and adjustment information for the surrounding suspension components. Brake repair includes hydraulic bleeding, front and rear calipers, pad orientation, piston and seal replacement, both master cylinders, hose connections, and post-assembly checks.

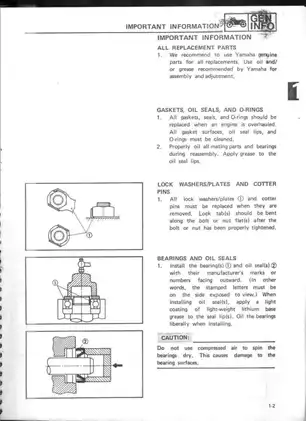

Two cautions are especially relevant during repair work. Mineral oil left inside the anti-dive plunger case can deteriorate the actuating-piston O-ring and cause brake-fluid leakage; disconnecting the battery while the generator is running can damage charging-system semiconductors. Procedures involving brake hydraulics, hot pressurized coolant, battery electrolyte and hydrogen gas, and the nitrogen-charged rear shock require normal workshop safeguards and calibrated equipment.

PDF Scope

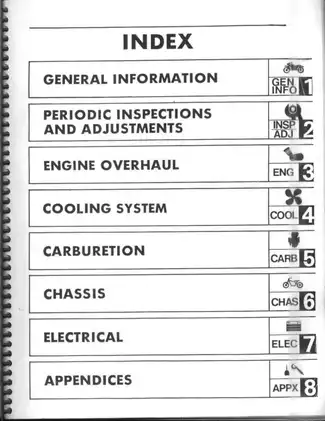

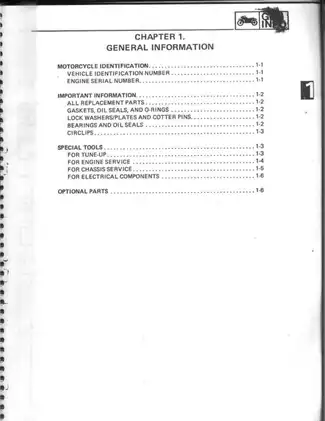

The PDF begins at the main index rather than a title or publication page. Internal pages 2-32 and 3-32 are reversed. Pages 7-46 through 7-50 are absent, leaving the dedicated YPVS circuit and troubleshooting sequence listed in the contents incomplete, although the main RZ500N circuit diagram and the YPVS control-unit and servomotor pages remain. Appendix pages 8-1, 8-2, 8-5, and 8-6 are also absent, and the scan ends at page 8-22 before the listed color wiring diagram.
