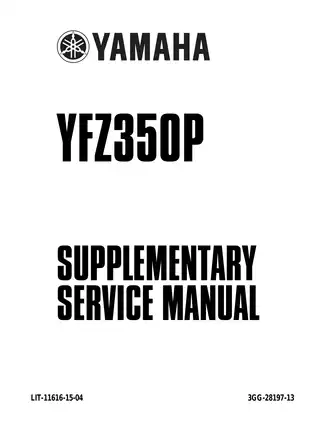

Yamaha Banshee 350 (YFZ350) 1987–2006 ATV Service Manual Set (P/N LIT-11616-YF-36)

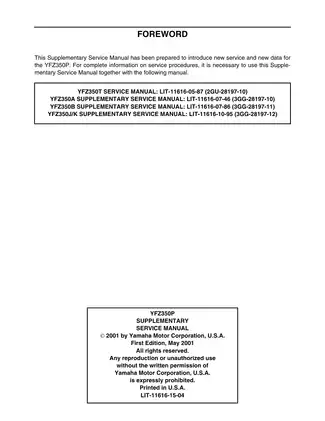

The YFZ350T service manual provides the main overhaul and repair procedures. The A, B, J/K, and P supplements document subsequent changes and refer mechanics back to the base manual and earlier updates where needed.

The supplements are not stand-alone engine overhaul manuals. The referenced YFZ350T service material is included in both PDF compilations, allowing the updated procedures to be read alongside the earlier instructions.

PDF Search, Bookmarks and File Contents

Text search and navigation: The 278-page PDF has no searchable text layer or embedded bookmarks. In the 300-page PDF, the opening 29-page YFZ350P supplement has searchable text; the older service-manual sections are not text-searchable. Embedded bookmarks provide access to the individual publications and major chapters, although the "Return to Index" entry does not resolve. Small wiring-diagram labels and connector codes are readable when enlarged.

The ZIP contains 2 printable PDFs totaling 578 PDF pages: a 278-page service-manual compilation and a 300-page compilation beginning with the YFZ350P supplement. The latter also includes earlier publications for cross-reference. The counts already include four additional cover, blank, and back-matter pages in the 278-page file and two cover/back-matter pages in the 300-page file. Some earlier material appears in both PDFs, so the combined count does not represent 578 unique service pages. The compilation cover carries P/N LIT-11616-YF-36.

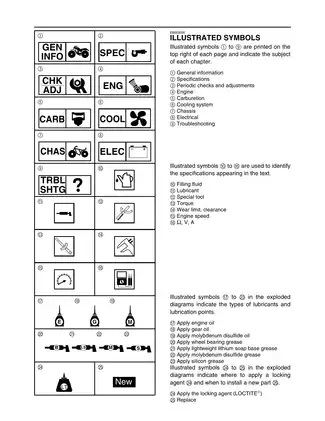

Engine, Chassis and Electrical Service Coverage

The following highlights are a selection of the factory procedures and reference material. Other documented work includes air-filter service, drive-chain inspection, and throttle-cable adjustment.

• Engine overhaul: Step-by-step engine removal, cylinder-head and piston inspection, crankcase separation, crankshaft service, clutch repair, and transmission disassembly and reassembly.

• Carburetion and intake: Twin Mikuni VM26SS carburetor disassembly, fuel-level and float-height checks, carburetor synchronization, jetting changes, and reed-valve inspection.

• Cooling and lubrication: Radiator removal and inspection, water-pump service, coolant replacement, transmission-oil changes, and related factory capacity specifications.

• Brakes and chassis: Front and rear disc-brake service, caliper and master-cylinder disassembly, brake bleeding, steering and tie-rod inspection, rear axle work, and swingarm service.

• Suspension and model updates: YFZ350A front-brake and rear-axle revisions, YFZ350B front-arm and shock changes, and YFZ350P rear-shock damping and brake-light-switch adjustments.

• Electrical troubleshooting: CDI ignition and lighting diagnostics, Throttle Override System (T.O.R.S.) checks, parking-brake revolution-limiter fault finding, signal-system testing, and model-specific wiring diagrams.

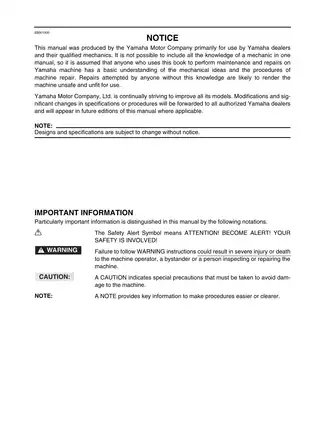

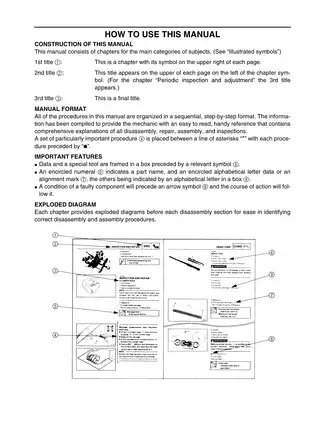

Yamaha prepared these manuals primarily for its dealers and qualified mechanics. The repair procedures assume basic mechanical knowledge and access to the measuring equipment and special tools specified for the work.

Engine and Carburetor Repair

The YFZ350T base manual takes engine work beyond routine maintenance. Its exploded views and step-by-step procedures cover the cylinder head, cylinders and pistons, reed valve assembly, clutch and primary drive gear, kick axle, shift mechanism, stator, crankcase, transmission, shifter, and crankshaft.

Factory tool references include the YM-91042 universal clutch holder, YM-01189 flywheel magneto puller, and YM-01312 fuel-level gauge. The manual also identifies the YU-08036 inductive tachometer, YM-33277 timing light, and YU-24460-01 cooling-system tester for related inspection and adjustment work.

The carburetor section includes a sectional view of the metering system, disassembly and assembly procedures, float adjustment, fuel-level measurement, and jet-setting information. The YFZ350T base carburetor specification lists a #210 standard main jet, while later supplements provide their own calibration data. Checking the applicable variant table is important before changing carburetor settings.

Brakes, Steering and Suspension

The chassis chapters cover brake-disc inspection, brake-pad replacement, caliper and master-cylinder work, and hydraulic brake bleeding. Steering-system procedures extend to the steering knuckles, tie-rod ends, front arms, wheel assemblies, rear swingarm, and shock absorbers.

The YFZ350A supplement introduces revised front-brake procedures and a multi-stage rear-axle ring-nut adjustment using the YM-37132 rear axle nut wrench. The specified tightening stages and final position matter when completing the rear-axle installation.

The YFZ350B supplement provides revised front-arm and shock specifications, including installation details. YFZ350P adds rear-shock spring-preload, rebound, and compression adjustments, together with revised front-brake and rear-brake-light-switch checks.

Electrical Diagnosis and Wiring

The YFZ350T electrical section covers ignition and lighting troubleshooting, including switch, ignition-coil, pickup-coil, source-coil, and wiring checks. Its Throttle Override System (T.O.R.S.) information supports fault isolation involving the throttle and carburetor switches.

The YFZ350J/K supplement adds the parking-brake engine-revolution limiter. With the parking brake applied, the system is designed to cause misfire near 2,300 r/min. Yamaha provides a dedicated troubleshooting path for faults in the limiter and parking-switch circuit.

YFZ350P adds signal-system diagnosis, switch continuity testing, and revised cable-routing information. Named references include the YFZ350T Circuit Diagram, YFZ350J/K Wiring Diagram, YFZ350P Wiring Diagram, the engine-revolution-limiter circuit diagram, the carburetor sectional view, and system-specific cable-routing illustrations.

These circuit references help distinguish ignition, lighting, switch, and limiter faults before individual electrical components are selected for testing or replacement.

Service Cautions

The rear shock contains high-pressure nitrogen and must not be opened or exposed to excessive heat. The YFZ350P instructions also warn that forcing rebound or compression adjusters beyond their limits can damage the mechanisms.

Other component-specific cautions address bearing damage from spinning bearings dry with compressed air and damage to painted or plastic surfaces from brake fluid. Follow the safety instructions in the applicable service section before carrying out repair or adjustment work.

Selected Cooling, Brake and Fluid Specifications

For YFZ350P, the cooling specifications give a radiator-cap opening pressure of 95–125 kPa (13.8–18.1 psi). The rear-brake table specifies a 220.0 × 3.6 mm disc and a 1.0 mm brake-pad wear limit.

The YFZ350T transmission-oil specifications distinguish 1.5 L for a periodic oil change from 1.7 L total capacity. The base manual also lists premix ratios of 24:1 for YAMALUBE “R” and 20:1 for Castrol R30, A545, or A747.
