Yamaha YZ250F1 1994 Service Manual (P/N LIT-11626-09-10)

This Yamaha YZ250F1 Owner’s Service Manual, P/N LIT-11626-09-10, first edition June 1993, covers the 4JX model code series, with market-specific identification and service specifications. It combines operation, basic maintenance and tuning with internal engine and chassis repair procedures.

PDF Search, Bookmarks and Wiring Detail

Finding sections and reading diagrams: PDF text search is not available. Embedded bookmarks cover all seven chapters and key service sections; the “Back to Index” bookmark points to a separate file outside this download. Small wiring-diagram labels are readable when enlarged.

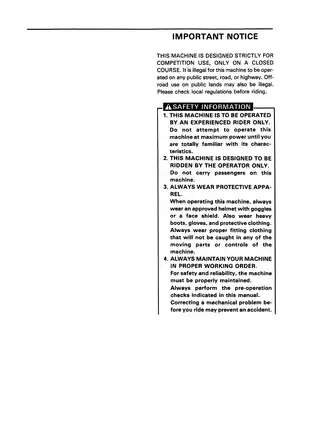

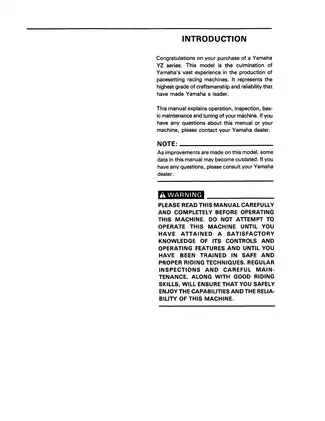

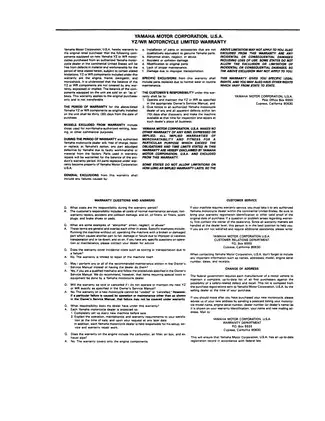

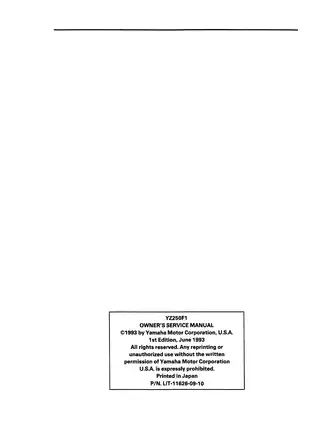

The ZIP download contains one printable PDF with 265 pages, including 23 pages of original front matter, seven chapter-divider pages and one memo page. The front matter includes the cover, publication details, warranty information, safety notices and contents.

Engine, Chassis and Ignition Service

The following highlights are a selection of the manual’s contents, rather than a complete contents list. Other topics include control functions and cleaning and storage.

• Top-end and YPVS repair: Cylinder-head, cylinder and piston service, power-valve inspection, and YPVS governor disassembly and reassembly.

• Engine and transmission: Engine removal, crankcase separation and crankshaft installation, plus clutch repair and transmission, shift-cam and shift-fork inspections.

• Carburetor and intake: Mikuni TM38SS teardown, float-arm adjustment, needle-valve checks and reed-valve inspection.

• Hydraulic brakes: Front and rear caliper and master-cylinder overhaul, pad replacement and brake-system bleeding.

• Fork, steering and linkage: Telescopic fork disassembly and assembly, steering-bearing service, and swingarm inspection with side-clearance shim selection.

• Ignition diagnosis: CDI magneto troubleshooting, ignition-coil, pickup-coil and source-coil resistance tests, a wiring diagram and a no-spark inspection flowchart.

The repair sections suit qualified mechanics; Yamaha recommends dealer service for work requiring special tools or equipment.

Market Specifications and Carburetor Tuning

European carburetor specifications use identification mark 4EW10, while the other listed markets use 4JX00. Factory jetting, final-drive gearing and suspension damping baselines differ by market. These distinctions help match the service specifications and replacement settings to the machine being worked on.

The tuning chapter connects carburetor settings to weather and track conditions and provides gearing-selection tables. It explains how main jets, jet needles, pilot jets and air-screw settings affect different throttle ranges. The press-fitted main nozzle is not replaceable; the manual describes jet-needle selection for the related tuning changes.

Cooling Service and Top-End Inspection

Cooling coverage includes radiator-cap opening-pressure tests, cooling-system leak testing, and water-pump impeller-shaft and oil-seal service. The pump section identifies coolant changes and milky transmission oil among the conditions relevant to further inspection. Its assembly notes address the risk of damaging the seal lip or displacing its spring during impeller-shaft installation.

For top-end repair, cylinder and piston matching charts distinguish A–D size grades. The cylinder service section explicitly rules out reboring. Related inspection data covers cylinder wear, piston clearance, ring condition and connecting-rod measurements.

Routine maintenance extends to air-filter servicing, transmission-oil changes and silencer fiber replacement. Pre-operation checks, break-in guidance and a maintenance schedule organized around racing use support ongoing upkeep.

Suspension Adjustment and Rear-Shock Limits

The rear link-type Monocross shock section documents removal, inspection, spring replacement and installation. Preload, compression and rebound adjustments are covered. Internal damper and nitrogen-reservoir overhaul is outside the manual’s scope; Yamaha warns against disassembling those gas-filled components.

Suspension tuning explains fork oil-level effects, spring selection, rider sag and front/rear balance. Troubleshooting addresses cornering push, excessive fork dive, rear-end kick and bottoming. The setting-record table lets the rider retain track conditions and machine settings for later comparison.

The fork repair instructions flag a specific damage risk: bottoming the inner tube during seal removal can damage the oil-lock piece.

Assembly Illustrations and Workshop Tools

Exploded views of the radiator and water pump, YPVS governor and front fork accompany removal charts and assembly notes. Two cable-routing diagrams identify the paths and securing points for control cables, brake hoses and electrical leads.

Step-by-step procedures cover jobs such as crankcase separation, transmission assembly and fork-seal replacement. Reference tables provide component-specific tightening torques, fluid capacities, lubricant specifications and wear limits. Ignition-timing procedures use a dial gauge and factory alignment marks.

Special-tool references distinguish U.S./Canadian and international part numbers. Examples include the crankcase separator YU-01135 / 90890-01135 and fork seal driver YM-38853 / 90890-01442.

Examples of Piston-Fit and Ignition Test Data

The piston inspection section specifies a standard piston clearance of 0.045–0.050 mm, with a service limit of 0.1 mm. These figures accompany the cylinder and piston measurement instructions and the size-grade matching charts.

Ignition-coil inspection gives a primary winding resistance of 0.43–0.58 Ω and a secondary winding resistance of 10.8–16.2 kΩ, both at 20°C (68°F). The associated illustrations identify the test connections.

Always ensure the motorcycle is properly secured on a stable stand for work requiring support, and allow the engine and radiator to cool before opening the cooling system. Follow the complete manual for the procedures and precautions applicable to each job.
