1999 Ski-Doo Mini Z Snowmobile OEM Service Manual (P/N 484 200 007)

• Coverage and document identity: Covers only the 1999 Ski-Doo Mini Z in its factory four-stroke, overhead-valve single-cylinder configuration; a 148-page PDF carrying Bombardier cover number 484 200 007.
• Engine repair: Documents engine removal and installation, cylinder-head service, top- and bottom-end disassembly and reassembly, valve adjustment, compression testing, crankcase work, and component wear measurement.
• Fuel and ignition work: Covers carburetor removal and disassembly, jet and float inspection, float-level and governor adjustment, fuel-tank, filter, strainer, and throttle-cable service, plus transistorized magneto disassembly and coil air-gap setup.
• Driveline and brake service: Details centrifugal clutch removal and inspection, mechanical brake pad, cable, and drum work, brake adjustment, drive-chain removal, connecting-link installation, automatic-tensioner checks, and lubrication.
• Track, suspension, and steering: Includes rear-suspension removal, runner, torsion-spring, stopper-strap, and slider-shoe service, drive-axle bearing and sprocket work, track replacement and alignment, ski toe-out, steering-column, swing-arm, and ski service.

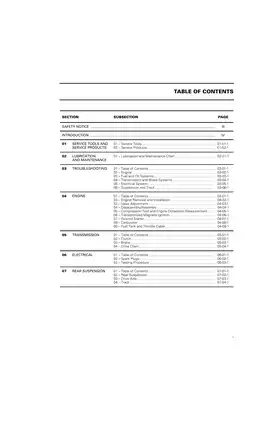

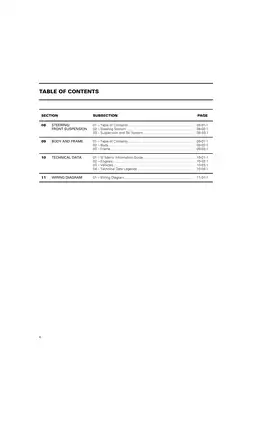

• Diagnostics and diagrams: Provides engine, fuel, driveline, electrical, suspension, and track troubleshooting charts; ignition and lighting test sequences; exploded assembly views; connector-location drawings; and the complete Mini Z wiring schematic.

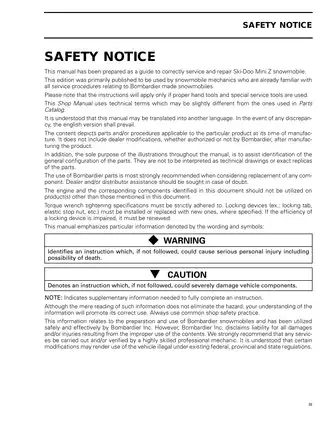

This model-specific Bombardier shop manual goes well beyond routine maintenance. Bombardier states that the edition was published primarily for snowmobile mechanics already familiar with its service procedures, so it is best suited to experienced technicians who have the specified hand tools, measuring equipment, and special tools. Its coverage is limited to the 1999 Mini Z as built; aftermarket or dealer modifications are outside the manual’s scope.

Engine and Fuel-System Repair Depth

The engine chapters take repair work from removal through dimensional inspection. Top-end coverage identifies the cylinder head, valves, springs, rocker arms, pushrods, guides, and exhaust-valve rotator. Bottom-end coverage reaches the piston, rings, pin, connecting rod, crankshaft, camshaft, lifters, bearings, seals, and mechanical governor. Factory tables provide compression standards, valve and cylinder measurements, piston and ring clearances, connecting-rod and crankpin limits, camshaft dimensions, surface-flatness checks, and component-specific torque data.

Carburetor coverage includes the main jet, nozzle, pilot jet, float valve, choke linkage, and throttle linkage, with cleaning, inspection, installation, idle adjustment, and governor setup. The manual also covers the fuel tank, in-tank filter, strainer cup, fuel-line clips, and throttle-cable routing. Named service equipment includes the engine leak tester kit P/N 861 749 100, clutch holder P/N 529 006 400, float-level gauge P/N 529 035 520, drive-axle sprocket adjuster P/N 861 725 700, and track tension gauge P/N 529 021 500.

The repair cautions are component-specific. Reversing marked valve-train parts or failing to install the exhaust-valve rotator correctly can damage the engine, while incorrect camshaft-to-crankshaft timing-mark alignment changes valve timing. Lubricant must also stay off the clutch cover’s braking surface and the brake pad, where contamination can compromise braking.

Driveline, Chassis, and Electrical Coverage

The clutch chapter has an important scope limit: internal clutch parts are not serviced separately, so a damaged unit is replaced as an assembly. The mechanical brake section covers pad and drum inspection, cable replacement, installation, and final adjustment. Rear-chassis work extends through suspension removal, runner and spring service, drive-axle extraction, bearing and sprocket positioning, and track tension and alignment. Steering procedures address pivot-arm centering and toe-out; Mini Z camber is identified as non-adjustable.

Electrical diagnosis follows test sequences for spark, connectors, cut-out switches, ignition-coil primary and secondary circuits, the spark-plug cap, and the parallel lamp coils. The visual material includes top-end and bottom-end exploded views, the transistorized magneto view, clutch and mechanical-brake assemblies, the drive-axle assembly, connector-housing/location views, and the full power-supply, ignition-switch, and lighting schematic. Symptom charts cover no-start and power complaints, rich or lean running, chain and brake faults, no-spark and lamp problems, track derailment, and steering instability.

Maintenance, Reference Data, and Safety

A maintenance matrix organizes the initial inspection, weekly and monthly checks, annual service, storage, and preseason preparation. Technical-data pages consolidate engine and vehicle specifications, fastener torques, inspection and wear limits, chain and track data, fuel and oil requirements, capacities, and electrical test values. The body section also states that the polycarbonate windshield and polyethylene hood and bottom pan are not repairable and must be replaced if damaged.

Repair work exposes rotating track and chain components, flammable fuel, a spring-loaded rewind starter, and safety-critical steering and brake parts. Follow the manual’s warnings, support the snowmobile securely, use the specified tools, and have safety-critical work performed or verified by a highly skilled mechanic.
