Ski-Doo Olympic, TNT, Blizzard, Everest, Scorpion, and Elan Snowmobile 1970–1979 Service & Repair Manual

210 Pages • 1 Printable PDF (English) • Download

5.0starstarstarstarstar(1)
$18.20 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Ski-Doo Models Covered & Key Technical Specifications

Models: Olympic, TNT, Blizzard, Everest, Scorpion, Elan

Sub-models / Variants: 250, 250 E, 250 Twin, 250 Deluxe, 250SS, 300, 300T, 300 Twin, 300SS, 335, 340, 340E, 399, 440, 440E, 440 Plus, 440 L/C, 6500, 7500, 9500, 5500, T'NT F/A, T'NT R/V, T'NT 292, T'NT 294; wiring-diagram variants: T'NT 300SM, T'NT 340SM, T'NT 440SM, T'NT 340SE, T'NT 440SE

Single-cylinder engine types: 247, 292, 300, 302, 335, 337

Twin-cylinder engine types: 245, 248, 294, 305, 338, 343, 345, 346, 354, 396, 401, 402, 434, 436, 440, 444, 454, 503

Engine serial references: Engine 343: 3,019,645 through 3,020,644 for the ignition-timing exception; engine 343: 2,670,920 and subsequent, and engine 440: 2,748,146 and subsequent, for the fully advanced timing procedure.

Model Years: 1970–1979 (1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978)


  • Engine idle speed: 1,800–2,200 rpm unless otherwise specified in the model-specific carburetor tables

  • Spark plug gap: 0.020 in. (0.51 mm)

  • Thermostat opening temperature: 110°F (43°C)

  • Drive belt deflection: 1 3/16–1 1/2 in. (30–38 mm) under 15 lb. (6.8 kg) of pressure at belt center, on machines with a drive pulley without shaft bearings

  • Fuel/oil mixture ratio (1970–1972): 20:1

  • Fuel/oil mixture ratio (1974–1979): Fuel Mixing section: 40:1 for the first year and 50:1 thereafter; Quick Reference Data: 50:1 throughout

  • Compression pressure: 120–175 psi (8.4–12.30 kg/cm²)

  • Electric starting system battery: 12 V

Ski-Doo Manual Features & Selected Content Preview

This service and repair manual covers Ski-Doo snowmobiles within the 1970–1979 span, including the Elan, Olympique, T'NT, Everest, Blizzard, and Citation families. Model-specific tables distinguish SS, F/A, F/C, R/V, Plus, electric-start, and L/C configurations, with Cross Country applications identified separately.

PDF Search, Bookmarks, and Diagram Detail

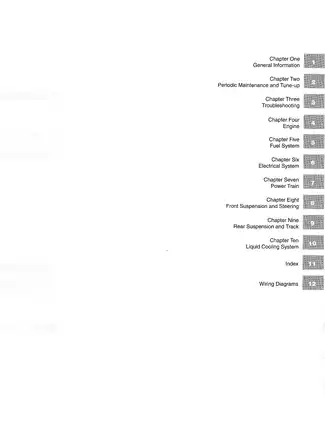

Navigation and small labels: PDF text search is not available. Embedded bookmarks link to the contents, ten service chapters, index, and wiring diagrams. Small wire-color codes and connector numbers require zooming; sideways diagrams are easier to follow after rotating the view.

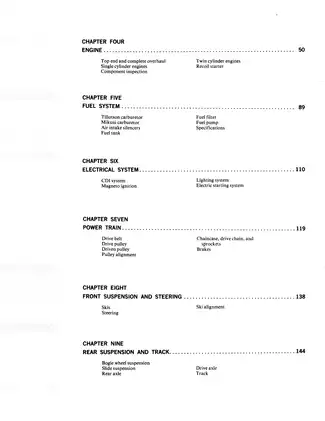

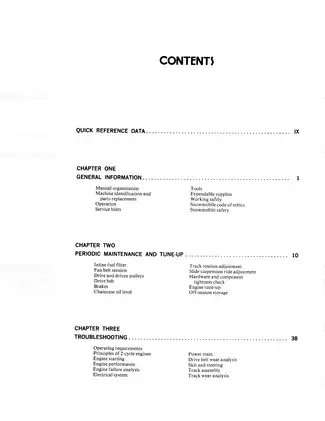

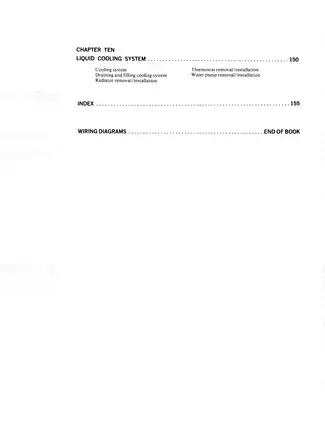

Supplied as one printable, English-language 210-page PDF, including seven preliminary pages with the cover, chapter guide, contents, and quick-reference tables. The remaining pages comprise 154 service-chapter pages, a three-page index, and 46 pages of wiring diagrams.


Engine, Fuel, Electrical, and Chassis Service

These selected service topics preview the manual rather than reproduce its complete contents. Additional subjects include off-season storage and headlight adjustment.

  • Engine repair: Step-by-step removal, top-end disassembly and reassembly, twin-cylinder crankcase separation, component inspection, rotary-valve timing, cooling-fan service, and recoil-starter repair.

  • Carburetor service: Tillotson HR, HD, and HRM disassembly and inspection; Mikuni float-carburetor service, synchronization, main-jet selection, and model-specific application tables.

  • Electrical diagnosis: Breaker-point magneto and CDI troubleshooting, ignition-timing adjustment, battery and starter checks, solenoid tests, rectifier diagnosis, and lighting-system fault tracing.

  • Belt drive and chaincase: Drive and driven pulley removal and installation, pulley alignment, drive-belt wear analysis, and pressed-steel or aluminum chaincase service.

  • Brakes: Pivot, drum, mechanical disc, and self-adjusting disc removal, installation, inspection, and adjustment, plus hydraulic disc-brake bleeding.

  • Suspension and steering: Bogie-wheel and slide-rail suspension removal, ride adjustment, ski and steering service, axle inspection, track replacement, alignment, and tension specifications.

  • Liquid cooling: Draining, filling, air purging, thermostat replacement, water-pump removal, and tunnel-mounted radiator removal for the applicable Blizzard and Everest configurations.

This manual is suited to owner-mechanics and technicians who are comfortable using SAE and metric tools, a timing gauge, compression tester, and multimeter. It identifies specialist work for referral to a dealer, machine shop, or auto electric shop.

Engine Inspection and Overhaul Scope

Engine procedures distinguish single-cylinder work from mid-engine and front-engine twin-cylinder layouts. Inspection coverage includes piston-to-cylinder clearance, cylinder taper and out-of-round, ring end gap and groove clearance, piston pins, bearings, seals, and engine-specific tightening data.

Crankshaft work: Twin-cylinder instructions cover crankcase separation and crankshaft assembly removal and installation. Crankshaft assembly inspection, alignment, and repair are assigned to an authorized dealer or competent machine shop; the single-cylinder crankshaft procedure also refers this work out.

Ignition tables distinguish direct and indirect BTDC measurements, breaker-point and CDI systems, and engine-specific serial exceptions. Matching these entries to the engine identification helps select the appropriate timing specification.

The illustrations include Typical Air Cooled Top End, Typical Crankshaft Assembly, Typical Cooling Fan Assembly, Typical Rotary Valve Assembly, and HR, HD, HRM, and Mikuni carburetor exploded views.

Fuel Delivery and Electrical Fault Isolation

The troubleshooting chapter connects no-start, hard-start, poor-idle, misfire, overheating, smoke, and power-loss symptoms with possible causes. Compression and spark checks help separate sealing, fuel-delivery, and ignition complaints before teardown.

Fuel-system coverage distinguishes Tillotson carburetors with integral pumps from Mikuni installations supplied by an auxiliary impulse pump. Fuel-pump flow checks, tank and filter service, and intake-silencer cleaning supplement the carburetor procedures.

CDI diagnosis separates pickup-coil, generator-coil, and electronic-box faults. Electronic CDI components are replacement items rather than internally repairable assemblies. Dedicated wiring diagrams include the T'NT F/A, Blizzard 6500, Citation, Everest 444 L/C, and late Olympique configurations.

Driveline, Suspension, and Cooling Variants

Pulley procedures distinguish round-shaft, square-shaft, high-performance, and three-ramp designs. Application tables identify the relevant pulley and tightening method; inspection and internal pulley repairs are referred to a dealer.

Suspension coverage separates ground-leveler, high-performance, and torque-reaction systems. Track tension and alignment are treated as related adjustments, while illustrated belt and track damage patterns support diagnosis of abnormal wear.

The liquid-cooling chapter covers component removal and coolant handling. Cooling-system pressure testing, water-pump shaft bearing and seal replacement, and radiator repair are referred to a dealer.

Assembly cautions: Misaligned twin cylinders can cause serious engine damage; applicable twin-carburetor and exhaust-socket engines require an alignment tool. Carburetor adjustment or jet selection with the intake silencer removed can produce a damaging lean mixture.

Review the manual's safety warnings before repair work involving gasoline, a running engine, spring-loaded pulleys, recoil-starter springs, ski-runner tension, brakes, or hot pressurized coolant.

Examples of Carburetor and CDI Test Specifications

The Mikuni assembly section specifies a float-arm distance of 23–24 mm (0.90–0.94 in.) from the mixing-chamber edge with the carburetor body inverted.

CDI troubleshooting lists 55–60 ohms for pickup-coil checks and 325–365 ohms for the ignition generator-coil check. The electrical chapter distinguishes the test connections for systems with and without a trigger box.
