Yamaha FJR1300(N) & FJR1300R Manual Collection, 2001 (P/N 5JW-28197-20)
617 Pages • 1 Printable PDF (English) • Download
Yamaha Models Covered & Key Technical Specifications
Models: FJR1300(N), FJR1300R
Sub-models / Variants: Europe (5JW1), F (5JW2), Oceania (5JW3)
Model Year: 2001
-
Engine displacement: 1,298 cm3
-
Engine configuration: Liquid-cooled, 4-stroke, DOHC, forward-inclined parallel 4-cylinder
-
Compression ratio: 10.8:1
-
Bore x stroke: 79.0 x 66.2 mm
-
Transmission: Constant mesh, 5-speed, shaft drive
-
Fuel system: Electronic fuel injection (FI)
-
Ignition timing: 5° BTDC at 1,050 r/min
-
Front fork oil capacity: 700 cm3
Yamaha Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

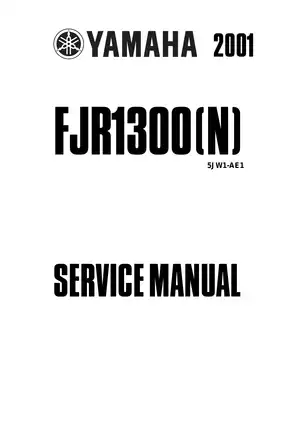

| Yamaha FJR1300(N) / FJR1300R Service Manual, 2001 — P/N 5JW-28197-20; respective cover identifiers 5JW1-AE1 and 5JW9-AE1 | 595 |
| Supplementary wiring sheets — Europe, Oceania, and FJR1300R, including annotated material | 3 |
| “Barbarian Jumper Mod” — 2003 owner-community article | 9 |
| “Installing Riv-Nut ports in the FJR’s Headers” — 2003 owner-community article | 10 |
The workshop manual supplies the repair procedures; the appended articles address access to CO adjustment and the installation of exhaust-header test ports. The articles and community annotations are separate from Yamaha’s factory instructions.

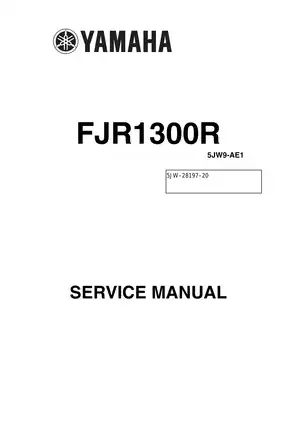

The FJR1300R has its own cover and wiring sheet, but the repair chapters are not split into a separate 5JW9 procedure set. The main specification table distinguishes Europe, F, and Oceania versions.
Searchable PDF and Wiring-Sheet Detail
Text search and diagram detail: Searchable text and embedded bookmarks provide access to the repair chapters, wiring sheets, and appended articles. Small wire-color codes and connector labels on the full-vehicle schematics require zooming for comfortable reading.
The download is one printable English PDF with 617 pages total, including both covers, six blank pages, and all supplementary material listed above.
Engine, Shaft-Drive, and FI Workshop Coverage
The following selected contents outline the repair and diagnostic coverage rather than reproduce the complete contents list. Other documented work includes battery charging and headlight-beam adjustment.
-
Engine and transmission: Step-by-step engine removal and installation, camshaft timing, cylinder-head and valve service, clutch repair, crankcase separation, transmission service, and balancer setup.
-
Shaft drive and chassis: Middle-gear and final-drive backlash adjustment, gear alignment, wheel balancing, brake master-cylinder and caliper overhaul, hydraulic-clutch service, and suspension work.
-
FI diagnosis and adjustment: ECU self-diagnosis, fail-safe operation, meter-based CO/DIAG modes, fault-code troubleshooting, sensor and actuator checks, throttle-body synchronization, and injector testing.
-
Cooling system: Radiator, oil-cooler, thermostat, and water-pump removal, inspection, installation, and service.
-
Electrical circuits: Ignition, starting, charging, lighting, signaling, cooling-fan, fuel-pump/FI, and electric-windshield diagnosis, with system-specific wiring diagrams.
-

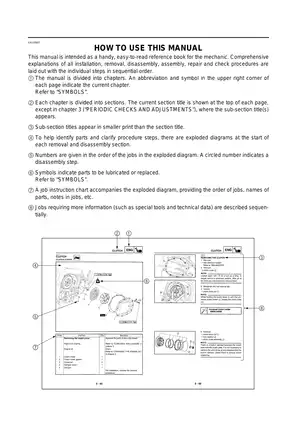

Factory reference data: Component torque tables, angle-controlled tightening sequences, wear and clearance limits, fluid and lubrication data, cable routing, electrical test values, and exploded diagrams with job-order charts.

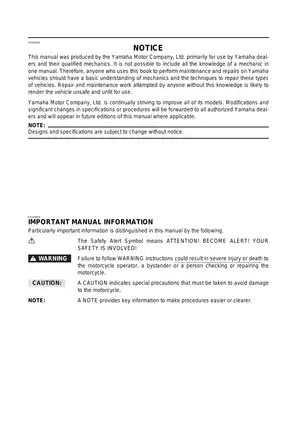

Yamaha produced this manual primarily for dealers and qualified mechanics, and its procedures assume basic motorcycle-repair knowledge plus access to the specified service and measuring equipment.
Internal Engine Repair and Drivetrain Setup
Engine coverage extends from compression and oil-pressure testing to valve-guide and valve-seat work, camshaft and timing-chain inspection, bearing selection, and piston, connecting-rod, and crankshaft inspection. Tightening instructions include staged, angle-controlled sequences for the cylinder head, crankcase, and connecting rods.
Gear and balancer setup: Shim-selection information supports middle-gear and final-drive alignment, while separate procedures address the front and rear balancers. The drivetrain chapters distinguish backlash measurement from gear-position adjustment.
Brakes and suspension: Disc inspection, pad replacement, seal inspection, assembly, and hydraulic bleeding accompany the brake overhaul procedures. Separate sections address the clutch master and release cylinders, fork disassembly and reassembly, steering-head bearings, rear shock absorber and relay arm, and swingarm. Rear-shock coverage concerns removal, inspection, and installation; the manual warns against opening the nitrogen-charged shock absorber.
Fuel Injection and Electrical Fault Tracing
The FI chapter connects ECU fault codes and substitute-characteristics operation with circuit checks, displayed sensor data, and actuator tests. Inputs covered include crankshaft and cylinder identification, throttle position, intake and atmospheric pressure, intake-air and coolant temperature, oxygen-sensor feedback, lean angle, and vehicle speed.
Ignition coils, injectors, relays, and the air-induction system receive their own checks. Fuel-pressure diagnosis includes testing fuel-pump and pressure-regulator operation; exhaust-gas adjustment is documented alongside the meter’s CO/DIAG functions.
Schematics and troubleshooting: Representative graphics include oil-flow and cooling-system diagrams, the FI wiring diagram, starting-circuit cut-off logic, charging circuitry, and the windshield-drive circuit. Chapter 9 organizes symptom-based fault tracing for starting, idle and high-speed running, shifting, clutch operation, overheating, braking, fork behavior, handling, lighting, and signaling.
Service Equipment and Repair Cautions
Named equipment includes vacuum gauge 90890-03094, fuel-pressure adapter 90890-03176, final-gear backlash band 90890-01230, middle-gear lash measurement tool 90890-01467, and pocket tester 90890-03112. These references help confirm whether a shop is equipped for the documented checks before a repair is opened up.
The camshaft section warns that uneven cap-bolt tightening can damage the cylinder head, caps, and camshafts, and that incorrect crankshaft movement during installation can cause damage or improper valve timing. The crankcase section also cautions against letting sealant enter oil galleries or crankshaft journal bearings, where it can interfere with lubrication.
Fuel-pressure work, brake and clutch hydraulics, internal engine repair, and high-current electrical testing require correct isolation, fire precautions, lifting support, calibrated tools, and the mechanical competence Yamaha assumes.
Valve-Clearance and Throttle-Synchronization Data Preview
Cold valve-clearance specifications are 0.15–0.22 mm for the intake valves and 0.18–0.25 mm for the exhaust valves. A valve-pad selection chart supports adjustment when measured clearances fall outside those ranges.
For throttle-body synchronization on a warmed engine at 1,000–1,100 r/min, the maximum permitted vacuum difference between throttle bodies is 1.33 kPa (10 mm Hg).
