2003-2005 Yamaha FJR1300R / FJR1300RC Service Manual

Troubleshooting, parts diagrams, and service data for all FJR1300 models. Complete engine, chassis, and electrical system procedures with torque specifications. PN LIT-11616-16-18

4.6starstarstarstarstar_half(5)
visibility Preview Available

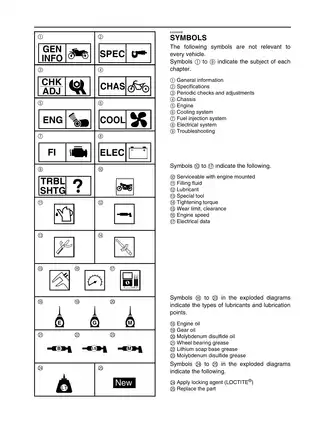

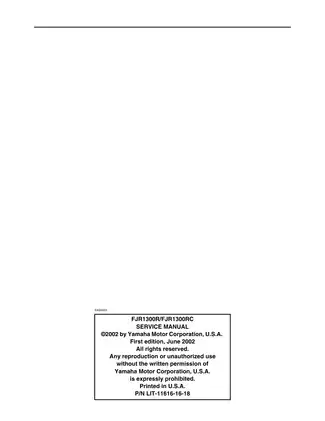

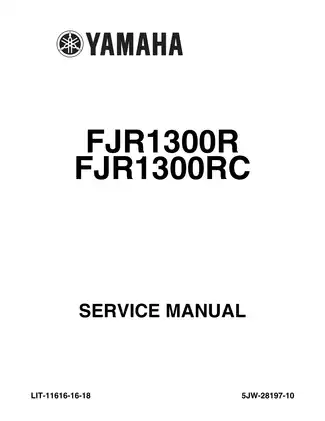

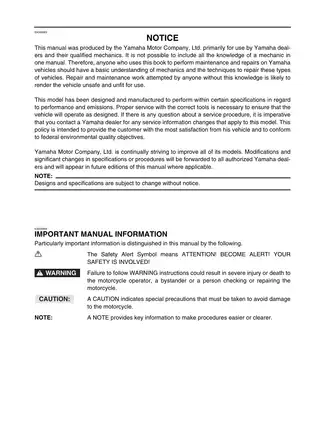

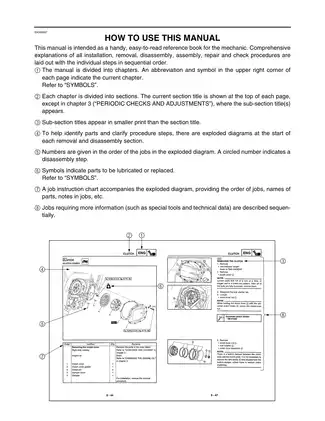

Yamaha 2003-2005 Yamaha FJR1300R / FJR1300RC Service Manual manual page preview - page 1 of

Sample pages from the 2003-2005 Yamaha FJR1300R / FJR1300RC Service Manual manual

Yamaha 2003-2005 Yamaha FJR1300R / FJR1300RC Service Manual manual preview page 1 - thumbnail
info_outline Click thumbnails to preview different pages

Purchase & Download

$16.05 (incl. VAT) Instant Download / No Shipping Fees
1 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal

Document Details

keyboard_arrow_down
Document Number / Seller:
24587 / William Thompson
File Size:
20.58 MB
File Type:
PDF
Language:
English
Printable:
Yes
Category:
Motorcycle
Last updated / verified
Mar 3, 2025

Models Covered & Key Technical Specifications

Yamaha FJR1300R & FJR1300RC (5JW7/5JW8) — 2003–2005 Precision Engineering Industrial Unit.

  • Verified Wattage Specs: 14 V/490 W at 5,000 r/min — is designed for the AC magneto charging system Matrix.
  • Engineered Generation Capacity: For optimal electrical output, the stator coil delivers 0.15 ~ 0.23 Ω measured resistance Standards.
  • Prescribed Burn-in Temperature: The engine coolant circulates through a 1.03 L (0.91 Imp qt, 1.09 US qt) radiator capacity system Protocol.
  • Nominal Enclosure Specs: 1,298 cm³ (79.2 cu.in) — indicates the liquid-cooled, 4-stroke, DOHC cylinder displacement Architecture.
  • Defined Fastener Specs: The cylinder head requires 25 Nm (2.5 m·kg, 18 ft·lb) fastening torque in the proper tightening sequence Norms.
  • General Electrical Specs: Maximum fuel pump output pressure reaches 294 kPa (2.94 kgf/cm², 41.81 psi) for fuel injection delivery Standards.

Professional Workshop Service Manual & Technical Specifications

OEM-Grade Service Assembly Manual: Motorcycle Yamaha FJR1300R & FJR1300RC - Precision Maintenance & Repair Reference (2003-2005 Edition) Parts-Reference

System-Identifier: FJR1300R (2003-2005), FJR1300RC (2003-2005) // Engineering-Base: Four-Cylinder Engine / Electronic Fuel Injection Control Logic // System-Identifier: 735-page comprehensive technical documentation.

Integrated-Framework Baseline Calibration-Standards
Engine Systems (Cylinders, Crankshaft, Valves) Complete specifications provided See Chapter 5
Chassis Components (Brakes, Suspension, Wheels) Full assembly procedures documented See Chapter 4
Electrical & Control Systems (ECU, Ignition, Charging) Detailed diagnostic parameters included See Chapter 8

Integrated service sections encompass engine disassembly and camshaft installation, front fork assembly and steering head calibration, clutch hydraulic systems and shift mechanisms, and electrical troubleshooting and lighting circuit operation, with comprehensive torque specifications for [component] to ensure proper pressure slip prevention. Technical notes are provided for periodic maintenance intervals, valve clearance adjustment procedures, and compression pressure measurements across all cylinders. Quality checks are addressed for brake pad wear limits, cooling system hose integrity, and fuel injection component operation under varying engine load conditions.

Modular Methodology

The engine section documents removal and installation sequences for internal components including connecting rods, pistons, crankshaft assemblies, and transmission gear systems. The document details disassembly procedures for the middle gear assembly, oil pump housing, and balancer mechanisms. Complete specifications are available for cylinder head warpage limits, camshaft journal clearances, and valve spring compressed forces. Chapter 5 includes step-by-step instruction sequences for timing chain tensioner operation and pickup coil rotor alignment.

Comprehensive Topology

Chassis procedures address front wheel static balance adjustment, brake disc deflection measurement, and brake master cylinder component replacement. The document provides detailed disassembly illustrations for brake calipers, clutch release cylinders, and front fork leg assemblies. Steering head bearing replacement and swingarm pivot bushing installation are documented with lubrication requirements and measurement parameters. Ring gear backlash measurement procedures and final drive pinion gear shim selection formulas are included.

Core Threshold

Electrical system documentation covers ignition system circuit operation, charging system output verification, and starter motor assembly procedures. The manual includes wiring diagrams for fuel injection system, lighting circuits, and cooling fan relay operation. Battery charging methods using variable voltage and constant voltage chargers are detailed with open-circuit voltage reference charts. Self-diagnostic function operation through the ECU meter display is documented.

Precise Benchmarks

The document provides reference data for engine oil pressure measurement at idle, coolant temperature sensor resistance values, and spark plug gap specifications (0.7–0.8 mm). Oil filter bypass valve opening pressure ranges and fuel pump output pressure data are included. Brake fluid DOT 4 specifications and clutch system bleeding procedures are detailed with pressure equalization requirements.

Technical Topology

Cooling system documentation includes radiator capacity measurements, thermostat valve opening temperature reference data, and water pump seal installation procedures. Fuel injection system section covers ECU control functions for basic injection duration calculation, warmup enrichment compensation, and acceleration fuel cut-off logic. Air induction system and three-way catalytic converter operation principles are explained. The manual documents torque specifications for [component] to ensure proper [pressure slip prevention].

Diagnostic troubleshooting procedures address shaft drive noise characteristics, bearing damage identification techniques, and contamination detection methods in final drive oil samples. Electrical system fault code interpretation and component continuity testing procedures using pocket testers are documented. The manual covers periodic maintenance chart requirements, lubrication point identification with lubricant type designation, and cable routing illustrations for proper wire harness placement.

FAQ

What **exact** assembly sequence should be followed when installing camshaft sprockets? keyboard_arrow_down

24 Nm torque specification applies to both intake and exhaust camshaft sprockets during installation. The exhaust camshaft sprocket must be installed first, followed by the intake camshaft sprocket, using the universal magneto and rotor holder (YU-01235) as the special tool. Ensure cylinder #4 cam holes align with the specified marks (intake side '—', exhaust side '→') before final tightening.

Reference the **specific** service interval parameters for valve clearance adjustments on this model. keyboard_arrow_down

0.15 ~ 0.22 mm cold clearance is required for intake valves, while exhaust valves require 0.18 ~ 0.25 mm cold clearance. These measurements must be taken when the engine is at room temperature with piston #1 positioned at TDC on the compression stroke. Valve clearance should be checked every 42,000 km (26,600 miles) or annually.

What are the **designated** system architecture specifications for the fuel injection control parameters found in pages 85–100? keyboard_arrow_down

294 kPa output pressure is the standard specification for the fuel pump (model 5JW, DENSO) with maximum consumption amperage of 5.5 A. The throttle bodies operate at 33.3 kPa intake vacuum pressure (250 mm Hg, 9.8 in Hg), with throttle cable free play maintained at 3 ~ 5 mm at the grip flange. These parameters ensure optimal fuel injection timing and engine response across all operating conditions per the precision maintenance reference data documented in the 2003-2005 service manual specifications section.
