2001-2004 Peugeot 307 Repair Manual - Haynes Service and Repair Manual
Peugeot 307 troubleshooting and repair reference covering Hatchback, Estate/SW models with petrol & diesel engines. Publication C4085-91017.

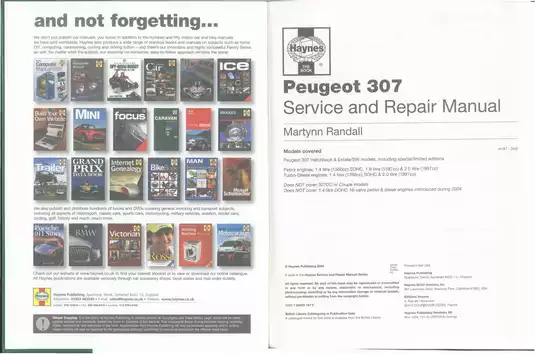

Manual Preview
Sample pages from the 2001-2004 Peugeot 307 Repair Manual - Haynes Service and Repair Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Peugeot 307 (2001-2004) Service and Repair Manual Covers Hatchback & Estate/SW models, including special/limited editions
- Engine Oil Capacity: 3.00 litres for 1.4 litre engine, 3.25 litres for 1.6 litre engine, and 4.00 litres for 2.0 litre engine.
- Ignition System Type: Static (distributorless) ignition system controlled by engine management ECU.
- Torque Specification: Alternator mounting bolts require 37 Nm (27 lb ft) for proper tightening.
- Cooling System Capacity: 6.0 litres for 1.4 litre engine, 6.2 litres for 1.6 litre engine, and 6.4 litres for 2.0 litre engine.
- Manual Transmission Fluid: 2.0 litres for 1.4 and 1.6 litre engines; 1.9 litres for 2.0 litre engine.
- Engine Oil Grade: Use 5W30 or 10W40 multigrade engine oil meeting ACEA A3 or API SH/SJ specification.
Professional Workshop Service Manual & Technical Specifications
Peugeot 307 (2001-2004) Service-Catalog Manual
Calibration-Scope: Petrol, Diesel // Equipment-Series: Hatchback, Estate/SW Logic // Series-Validation: UK, Europe.

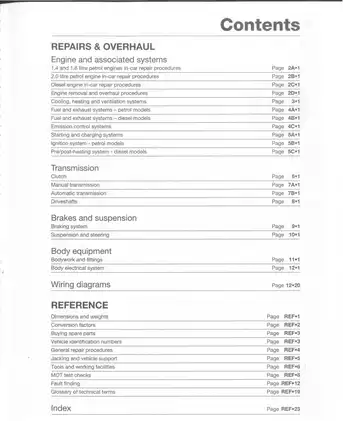

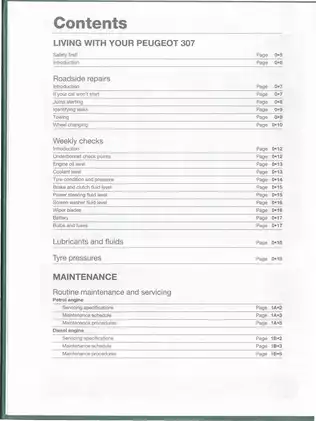

Table of Contents Summary
Documentation sections include: Routine maintenance, Engine overhaul, Transmission, Brakes and suspension, Body equipment, Wiring diagrams, and Reference sections.
System Overviews
Systematically demanding... The heating/ventilation system consists of a four-speed blower motor, face level vents, and air ducts to the front footwells. Controls operate flap valves for air distribution.
Heating System Functionality
The [component] section documents the operation of the heating system, controlling air temperature via the heater matrix and blower motor.
Air Conditioning Coverage
The troubleshooting chapter addresses common issues with the air conditioning system, including refrigerant and component checks.
Fuel and Exhaust System Documentation
Cooling system maintenance is addressed in detailed sections covering fuel delivery, injection, and exhaust systems.
Electrical System Information
Testing requirements are specified for battery, starter motor, and alternator systems to ensure reliable electrical operation. Torque specifications are provided for numerous components to ensure proper installation and clamp load consistency.
