Honda VFR800FI Interceptor 1998–2001 Service Manual Set with Parts Catalog (P/N 14MBGWM)

The service manual provides maintenance, diagnosis and repair procedures. The parts catalog supports replacement-part identification with exploded engine and frame views, part-number tables, color codes, commonly replaced parts, and model/serial references.

Parts catalog coverage: The appended microfiche is specific to 1998 and should not be treated as a 1999–2001 parts catalog.

PDF Search, Bookmarks and Diagram Detail

Search and navigation: Text search is unavailable in the service manual and parts catalog. Service-section bookmarks are included; parts-related bookmarks open within the catalog or on the added reference page. Small wiring labels and ECM pin numbers require zooming.

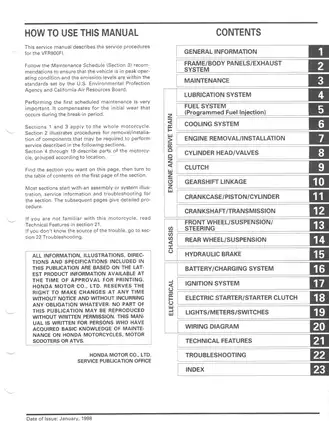

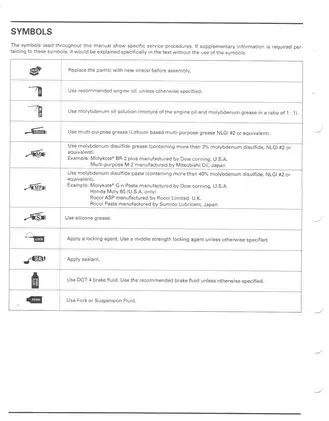

Both publications are combined in one printable, 645-page PDF, including one additional parts-reference page already counted in the total.

PGM-FI, Engine and Linked-Brake Service

The following topics are a selection of the covered work. Further examples include wheel balancing and headlight aiming.

• Engine repair: Engine removal, compression testing, cylinder-head and valve service, cam-gear timing, crankcase separation, piston inspection, bearing selection, and transmission teardown.

• PGM-FI diagnosis: Malfunction-indicator blink codes, fuel-pressure and flow checks, injector testing, starter-valve synchronization, sensor diagnosis, and ECM terminal testing.

• Lubrication and cooling: Oil-pressure diagnosis, pump inspection, radiator testing, thermostat service, coolant replacement, air bleeding, and water-pump inspection and replacement.

• Clutch and chain drive: Clutch disassembly, friction-component inspection, master/slave-cylinder overhaul, hydraulic bleeding, primary-drive service, and drive-chain replacement and staking.

• Linked brakes: LBS fault isolation, master-cylinder and caliper overhaul, secondary master-cylinder service, delay valve and proportional control valve references, and circuit-specific bleeding.

• Chassis service: Body panels, exhaust, wheels, front forks, steering stem, rear axle and bearing holder, suspension linkage, shock absorber, and swingarm.

• Electrical troubleshooting: Wiring diagrams, connector views and circuit tests for charging, ignition, starter, lighting, meters, relays, switches, and safety interlocks.

Written for readers with basic knowledge of Honda motorcycle maintenance, this manual also calls for suitable test equipment and special tools for advanced diagnosis and internal repair.

Regional References and PGM-FI Diagnosis

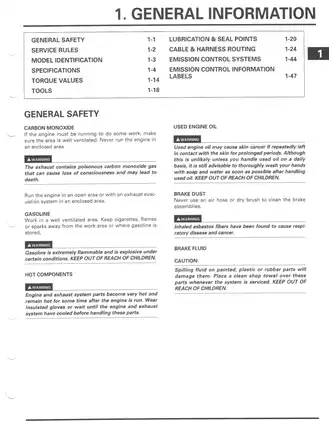

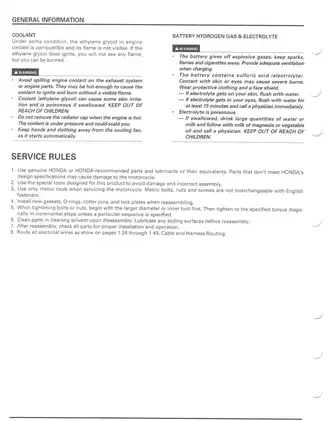

Identification pages show frame and engine serial-number locations, the VIN, throttle-body identification and color label. Regional specifications distinguish 49-state/Canada and California configurations where emissions routing, idle settings or ignition data differ.

The PGM-FI flowcharts help separate connector and wiring faults from sensor failures through blink-code diagnosis and ECM terminal checks. The PGM-FI Parts Layout and System Diagrams show component relationships; the Test Pin Box Terminal Layout supports testing with ECU test harness 07WMZ-MBG0100 and test pin box 07WGZ-0010100.

Variable air intake diagnosis covers the bypass solenoid, vacuum chamber and one-way valve. Emissions coverage includes PAIR testing and California-only EVAP canister and purge-control-valve checks.

Disturbing white-painted throttle-body fasteners can upset synchronization, while carburetor cleaner can damage the molybdenum-coated bores. Idle-speed adjustment is covered separately in the maintenance section.

Cylinder Heads, Crankcase and Transmission

Step-by-step procedures extend to valve-guide replacement, valve-seat refacing, gear-driven camshaft installation and cam-gear-case installation. Camshaft and front cylinder-head service can be performed with the engine installed; rear cylinder-head service requires engine removal. Compression-gauge attachments and valve-service tools are identified.

Crankpin and main-journal bearing selection uses code tables and Plastigage clearance verification. Crankcase reassembly explains the plastic-region tightening method and replacement main-journal bolts; incorrectly positioned bearing inserts can block oil passages and cause engine seizure.

Transmission inspection covers gear dogs, bushings, shift forks, the shift drum and shafts. The clutch chapter also details the lifter mechanism and primary drive.

Oil Circulation and Cooling-System Work

The Lubrication System Diagram accompanies oil-strainer and pressure-relief-valve service, feed/cooler-pump rotor inspection and oil-cooler removal. Tool references include oil-filter wrench 07HAA-PJ70100 and pressure-gauge attachments.

The Cooling System Flow Pattern supports radiator-cap and system-pressure testing, thermostat inspection and cooling-fan work. A leaking water-pump mechanical seal is addressed by replacing the pump assembly.

LBS Hydraulics and Chassis Repairs

LBS construction and operating diagrams trace the separate lever and pedal circuits through the three-piston calipers. They explain secondary master-cylinder actuation, delay-valve operation and PCV pressure regulation alongside the model-specific bleeding procedures. The secondary master-cylinder push rod is treated as a preset assembly.

Rear axle and bearing-holder procedures cover radial and needle bearings, while driven-flange, suspension-linkage and swingarm sections detail component inspection and bearing replacement. Shock-absorber service covers removal, inspection, assembly replacement and disposal.

Drive-chain replacement includes master-link staking and references tool set 07HMH-MR10103. Bearing removers and steering-stem drivers are identified for front-end service.

Charging, Ignition and Starter Faults

The full Wiring Diagram complements system-specific diagnostic charts. Charging tests distinguish battery condition, current leakage, alternator-stator faults and regulator/rectifier problems.

Ignition checks use peak-voltage adapter 07HGJ-0020100. Starter-motor teardown, starter-clutch inspection and interlock-circuit tests extend the electrical coverage beyond basic component replacement.

Valve-Clearance and Oil-Pressure Examples

Valve-clearance data: The maintenance section specifies intake clearance of 0.16 ± 0.03 mm and exhaust clearance of 0.30 ± 0.03 mm with the engine cold, below 35°C (95°F). These values accompany valve inspection and shim-selection procedures.

Oil-pressure testing: The lubrication chapter specifies 490 kPa (71 psi) at 6,000 rpm with the engine at approximately 80°C (176°F), together with gauge requirements and pressure-related troubleshooting.

Other reference tables cover component-specific torque values, fluid capacities, wear limits, service tolerances, tire and suspension data, brake dimensions, electrical resistance and peak-voltage criteria, fuse ratings, and bulb specifications.

Safety note: Fuel-system testing, linked-brake hydraulic repair, supported motorcycle work, running-engine checks, and charging or ignition diagnosis carry inherent risks. Use the specified tools and protective procedures, and rely on a qualified technician when the repair exceeds your training or equipment.
