1985-1993 Volkswagen Cabriolet and Scirocco Service Manual

Documents 1985-1993 Volkswagen Cabriolet and Scirocco service procedures: engine, fuel system, ignition, lubrication, cooling, and exhaust systems. Part 1990908

4.6starstarstarstarstar_half(5)
★ BEST PRICE
visibility Preview Available

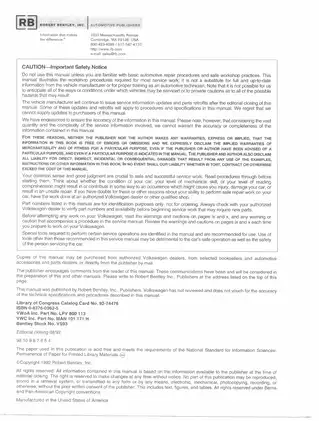

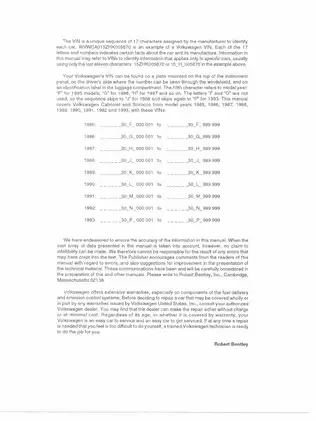

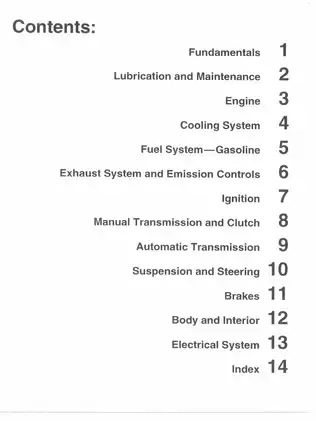

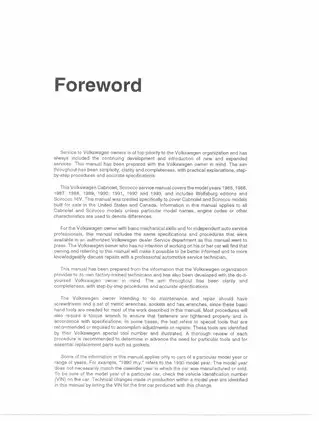

Volkswagen 1985-1993 Volkswagen Cabriolet and Scirocco Service Manual manual page preview - page 1 of 522

Sample pages from the 1985-1993 Volkswagen Cabriolet and Scirocco Service Manual manual

Volkswagen 1985-1993 Volkswagen Cabriolet and Scirocco Service Manual manual preview page 1 - thumbnail
Volkswagen 1985-1993 Volkswagen Cabriolet and Scirocco Service Manual manual preview page 3 - thumbnail
Volkswagen 1985-1993 Volkswagen Cabriolet and Scirocco Service Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$17.98 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Volkswagen Models Covered & Key Technical Specifications

Models: Volkswagen Cabriolet, Volkswagen Scirocco, Scirocco 16V
Sub-models / Variants: Wolfsburg editions, 16-valve engine models
Build Years: 1985–1993
Serial Numbers: 1985 (30_F_000 001 to 30_F_999 999), 1986 (30_G_000 001 to 30_G_999 999), 1987 (30_H_000 001 to 30_H_999 999), 1988 (30_J_000 001 to 30_J_999 999), 1989 (30_K_000 001 to 30_K_999 999), 1990 (30_L_000 001 to 30_L_999 999), 1991 (30_M_000 001 to 30_M_999 999), 1992 (30_N_000 001 to 30_N_999 999), 1993 (30_P_000 001 to 30_P_999 999)
Technical Data:

  • Engine displacement: 1781 cc (109 cu. in.)
  • Engine configuration: Inline 4-cylinder, overhead cam
  • Fuel system: CIS or CIS-E fuel injection
  • Horsepower (JH/2H engines): 94 hp @ 5400–5500 rpm
  • Horsepower (PL engine): 123 hp @ 5800 rpm
  • Engine oil capacity (with filter): 4.0 liters (4.2 US qt)
  • Manual transmission oil capacity: 1.9 liters (2.1 US qt)
  • Cooling system capacity: 4.6 liters (4.9 US qt)
  • Spark plug torque: 20 Nm (15 ft. lb.)
  • Oil drain plug torque: 30 Nm (22 ft. lb.)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
28336 / Mark Morales
File Size:
351.72 MB
File Type:
PDF
Language:
English
Pages:
522
Printable:
Yes
Category:
Car
Last updated / verified
Sep 11, 2025

Volkswagen Manual Features & Content Preview

1985–1993 Volkswagen Cabriolet and Scirocco Maintenance and Repair Reference

  • Covers the 1985–1993 Volkswagen Cabriolet and Scirocco range, including the high-performance Scirocco 16V variant and Wolfsburg editions
  • Official Robert Bentley publication, Library of Congress Catalog Card No. 92-74476, published 1992
  • Includes 14 technical sections ranging from fundamentals and engine systems to automatic transmission and electrical diagnostics
  • Indexed PDF search covers every chapter and appendix
  • Laid out for standard letter and A4 printing
  • This 522-page official technical publication serves as the primary reference for the 1985–1993 Volkswagen Cabriolet and Scirocco generation

Technical Scope and Documentation

The 1985–1993 Volkswagen Cabriolet and Scirocco service manual documents the technical requirements for the water-cooled, transverse-mounted 1.8-liter inline four-cylinder powerplants. This technical publication includes detailed engine assembly breakdowns, fuel injection management for CIS and CIS-E systems, and extensive lubrication schedules. The documentation covers manual and automatic transaxle service, including torque converter data and final drive lubrication. Additional chapters detail suspension geometry, rack-and-pinion steering rack operation, and disc-to-drum brake system maintenance, providing the technical foundation for routine service and long-term upkeep of these vehicles.

Specification Highlights

Engine data includes tightening torque values, such as the 30 Nm specified for the oil drain plug. Cooling system capacity for the 1985–1993 Volkswagen Cabriolet is documented at 4.6 liters. Crankshaft main bearing radial clearance for new parts is listed at 0.03–0.08 mm in the engine technical data section. Torque values for 8-valve and 16-valve cylinder head bolts are provided, alongside wear limits for valve guides and piston rings. For information regarding professional how factory workshop documentation is structured, this resource provides the necessary references for the 1985–1993 Volkswagen Cabriolet and Scirocco model run. This is a 522-page Robert Bentley OEM workshop manual covering the 1985–1993 Volkswagen Cabriolet and Scirocco, documenting engine, chassis, electrical, and fuel-injection specifications for the 1.8-liter 8-valve and 16-valve engine builds.

Document Reference: Robert Bentley, Library of Congress Catalog Card No. 92-74476, ISBN 0-8376-0362-5

Manual FAQ, Purchase & Download Details

Is the manual structured to cover major systems like the fuel system, manual transmission, and electrical components for the Cabriolet and Scirocco models? keyboard_arrow_down

Document contents include dedicated chapters for fundamental systems such as fuel delivery, transmission, cooling, and electrical wiring configurations to assist with vehicle understanding.

Can the document provide information on where to locate specification data and general maintenance charts within the manual? keyboard_arrow_down

Manual includes a sectioned table of contents that directs users to specific chapters covering maintenance, fundamentals, and general description information. These sections reference technical data and system overviews relevant to the listed model years.

Does the manual contain references to fluid capacities and general maintenance intervals? keyboard_arrow_down

Maintenance sections include information regarding routine service requirements and general fluid handling details.

Are engine and drivetrain specifications available within the technical sections of this service manual? keyboard_arrow_down

Engine and transmission chapters include comprehensive system descriptions and references to mechanical operation. These sections provide the necessary context for understanding the internal components of the covered vehicle engines and transmissions.

Which chapters contain information regarding wiring diagrams, connector references, and electrical system layouts? keyboard_arrow_down

Electrical system information is organized within its own dedicated chapter to help locate circuit details and general component placement. The manual includes schematic representations and descriptive text regarding the electrical harness and ignition system. Users can navigate these electrical sections to view information on how different circuits are interconnected.
