Kyocera Mita KM-1525 / KM-1530 / KM-2030 Copier Service & Parts Manual Set, 2000–2004 (P/N 842BV110)

581 Pages • ZIP Download: 4 Printable PDFs • 23.16 MB

4.5starstarstarstarstar_half(2)
$4.09 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Kyocera Models Covered & Key Technical Specifications

Models & Model Codes: Mita KM-1525 (2BV), Mita KM-1530 (2AV), Mita KM-2030 (2AX)

Sub-models / Variants: 230V, 240V (all models), 120V (KM-1530 and KM-2030)

Model Years: 2000–2004 (2000, 2001, 2002, 2003, 2004)


  • Copying system: Indirect electrostatic system

  • Resolution: 600 x 600 dpi

  • A4 copy speed: 15 copies/min (KM-1525 and KM-1530), 18 copies/min (KM-1530 with optional memory board), 20 copies/min (KM-2030 in memory copy mode)

  • A3 copy speed: 8 copies/min (KM-1525 and KM-1530), 9 copies/min (KM-1530 with optional memory board), 10 copies/min (KM-2030 in memory copy mode)

  • Drum type: OPC, 30 mm diameter

  • Fixing system: Heat roller with halogen heaters. 910 W for 220–240 V KM-1525 and KM-1530 models and 230–240 V KM-2030 models. 850 W for 120 V KM-1530 and KM-2030 models.

  • Power source: 220–240 V AC, 50/60 Hz, 2.8 A (all models), 120 V AC, 60 Hz, 9 A (KM-1530 and KM-2030)

  • Paper capacity: 250 sheets (drawer), 50 sheets (bypass for A4 and other specified sizes), 25 sheets (bypass for A3 and other specified sizes)

  • Fixing pressure: 49 N

Kyocera Manual Features & Selected Content Preview

Publication Pages
Kyocera Mita KM-1525 Service Manual, March 2001 (P/N 842BV110) 190

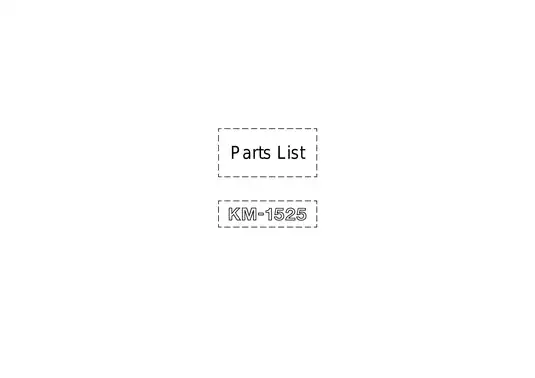

Kyocera Mita KM-1525 Parts List, February 2001 (P/N 842BV120) 44
Kyocera Mita KM-1530 / KM-2030 Service Manual, October 2000 (P/N 842AV110) 298
Kyocera Mita KM-1530 / KM-2030 Parts List, October 2000 (P/N 842AV120) 49

Use the service manual to trace a fault and find the removal, refitting, or adjustment procedure. The matching parts list identifies the component in its assembly and shows the part number and quantity for the copier’s electrical configuration.

For optional document feeders and finishers, service coverage is limited to copier-side interfaces, operating checks, adjustments, and related faults.

PDF Search, Bookmarks, and Wiring Detail

Search and navigation: All four files contain searchable text. The two wiring diagrams in the KM-1530/KM-2030 service manual are image pages without searchable text. That service manual has chapter and subsection bookmarks, and its parts list has a bookmark to a clickable contents page. The two KM-1525 PDFs have no embedded bookmarks. Zoom in to read small pin numbers and wire labels in the service diagrams.

The ZIP contains four printable English-language PDFs totaling 581 pages. This count includes the original front and back covers, parts-list title pages, service safety pages, and appendixes.


Copier Repairs, Fault Diagnosis, and Parts Identification

This selection of service and parts topics also includes references to installation conditions and factory-set variable resistors.

  • Installation and setup: Unpacking, developer loading, initial copy settings, copier management, and test copies.
  • Paper feed and registration: Feed pulley replacement, registration cleaner service, bypass paper-width switch replacement, and paper-path adjustments.
  • Scanner and image formation: Exposure lamp and scanner wire replacement, laser and image scanning unit alignment, and service procedures for charging, developing, transfer, and fixing.
  • Maintenance Mode and fault diagnosis: Component tests, service counters, misfeed detection, self-diagnostic codes, and troubleshooting for image defects and electrical or mechanical faults.
  • Electrical and firmware service: PCB layouts, connector voltage and signal tables, timing charts, wiring diagrams, machine-data backup and restoration, and firmware updates.
  • Parts lookup: Exploded views, indexed part numbers, quantities by electrical configuration, service-part and subassembly symbols, and fastener codes.

These manuals are suited to copier service technicians familiar with Maintenance Mode and electrical testing at PCB connectors.

Model Configurations and Installation

The parts lists separate ordering quantities by electrical configuration. The shared service manual distinguishes metric and inch operation panels and gives separate control and Maintenance Mode procedures for the KM-1530 and KM-2030. It also identifies applicable duplex, job-separator, finisher, printer network board, fax, and network scanner options.

Option installation procedures cover the KM-1525 total counter and, in the shared manual, the key counter and drawer heater. The original-size detection sensor installation applies to the metric KM-1530 configuration.

Paper Feed, Scanner, and Fixing Repairs

Paper path: Procedures cover drawer and bypass feed pulleys, including upper and lower feed positions where fitted, both registration cleaner assemblies, and the bypass paper-width switch. Adjustments include leading-edge and memory-image registration where applicable, image centerline, print margins, and paper slack. The KM-2030 also has a second-side duplex registration procedure.

Optics: The manuals show how to remove and refit the exposure lamp, scanner wires, laser scanner unit, and image scanning unit (ISU). They cover laser skew and vertical position, scanner squareness, main- and auxiliary-scan magnification, scan leading-edge registration, centerline, and contact-glass margins.

Imaging and fixing: Procedures address the charger assembly and tungsten wire, photoconductor drum, doctor blade, transfer roller, cleaning blade, drum separation claws, and lower cleaning seal. Fixing-unit work covers the thermistor, heat roller separation claws, heater, heat roller, and press roller.

Maintenance Mode, Electrical Diagnosis, and Firmware

Tests and adjustments: Maintenance Mode checks motors, switches, clutches, solenoids, scanner travel, exposure, toner feed, the fixing system, and document-feeder functions where fitted. Adjustment routines cover scanner input and shading, automatic scanner setup, surface potential, developing bias, transfer output, developer initialization, toner-sensor control, print timing, and image margins.

Fault tracing: For a recurring misfeed, use the jam history and detection conditions to identify the stage involved, then use the switch checks and connector tables to trace the signal. The manuals also include self-diagnostic code tables and symptom-based checks for image, electrical, and mechanical faults.

Electrical references: Machine cross sections, optical and drive-train views, and electrical layouts locate boards, switches, sensors, and motors. The manuals document the power-source, main, CCD, and laser-diode PCBs. Their appendixes contain 14 timing charts, one KM-1525 wiring diagram, two KM-1530/KM-2030 wiring diagrams, maintenance-parts lists, and periodic service procedures.

PCB replacement and firmware: Main-PCB replacement includes backing up and restoring machine data. Firmware procedures identify the flash tool assembly (P/N 35968010), memory tool PCB (P/N 2AV68030), and model-specific master ROMs. The KM-2030 has a separate operation-unit PCB update procedure.

Exploded Views and Parts Ordering

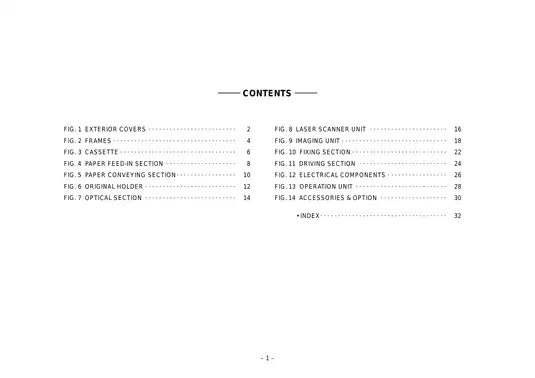

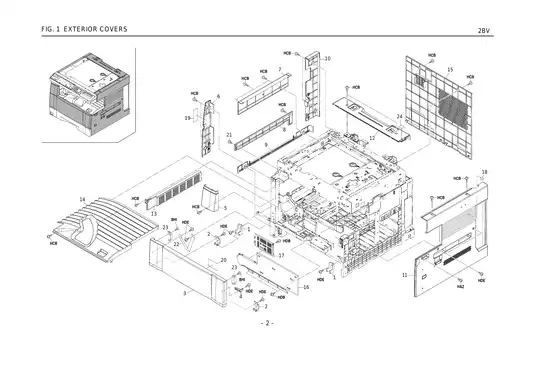

The KM-1525 Parts List has 14 illustrated sections. The KM-1530/KM-2030 Parts List has 16, including dedicated KM-2030 cassette and deck-unit views. Both lists cover covers and frames, cassettes, the paper path, original holder, optical and laser assemblies, imaging, fixing, drive, electrical components, operation units, and options.

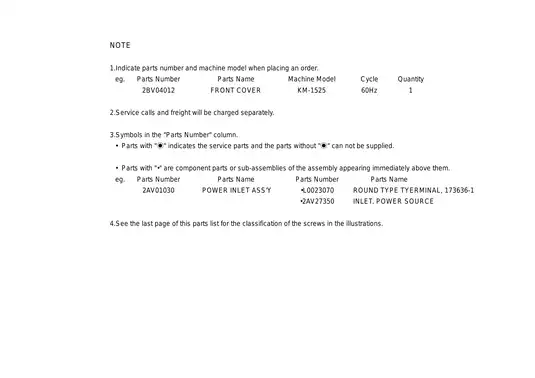

Each drawing has a numbered parts table. The symbol keys distinguish orderable service parts from non-supplied items and show which components belong to an assembly. Indexes cross-reference part numbers, figure numbers, and quantities. Screw classification pages decode the fastener abbreviations used in the drawings.

Service Precautions

The manuals call for disconnecting power before disassembly, taking precautions around high-voltage charger sections, leaving the laser optical unit sealed, and letting the fixing section cool before repair. They also warn against exposing the photoconductor to light during open-machine service and specify the correct replacement thermostat or thermal fuse.

Sample Paper Slack and Doctor Blade Settings

On all three models, changing Maintenance Mode item U051 by one step changes paper slack by 0.32 mm at the selected feed position. The procedure uses test copies to check for an inconsistent leading edge or Z-folded paper.

The developing section specifies a 0.6 ± 0.05 mm gap between the doctor blade and developing roller. The refitting procedure uses thickness gauges to check that gap.
