Kyocera Models Covered & Key Technical Specifications

Models & Model Codes: FS-1100 (2H5), FS-1300D (2HS)

Sub-models / Variants: 120V AC, 220–240V AC


  • Printing method: Electrophotography, laser scan

  • Printing speed (simplex): 28/30 ppm (A4/Letter)

  • Printing speed (duplex): 14/15 ppm (A4/Letter, FS-1300D only)

  • Paper capacity (cassette): 250 sheets (80 g/m²)

  • MP tray capacity: 50 sheets (FS-1300D)

  • Weight: 10 kg (without toner container)

Kyocera Manual Features & Selected Content Preview

Publication Pages
Kyocera FS-1100 / FS-1300D Service Manual, March 2008, Rev. 1 (P/N 842HS111, document code 2HSSM061) 124

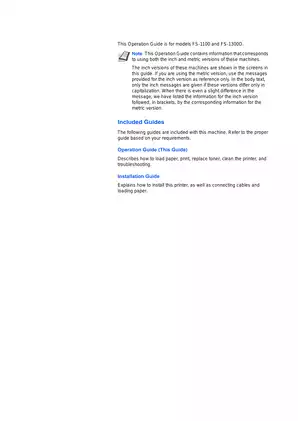

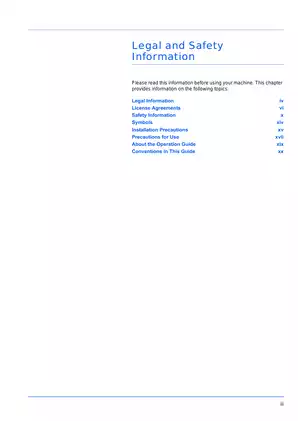

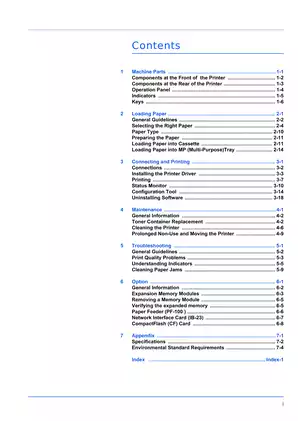

Kyocera FS-1100 / FS-1300D Operation Guide (embedded cover code 870CKGB20008) 109
Kyocera FS-1100 / FS-1300D Parts List, February 2008, Rev. 1 (cover codes 2HSPL071 and 842HS121) 38

Use the Operation Guide for setup and upkeep, the Service Manual to isolate faults and plan repairs, and the Parts List to match replacement components to the printer build and destination.

The Service Manual focuses on testing and replacing assemblies and printed wiring boards (PWBs). For certain PF-100 feed motor and controller faults, it refers technicians to a separate paper feeder service manual.

PDF Search, Bookmarks, and Print Files

Search and diagram detail: All three PDFs have searchable main text and bookmarks. Manufacturer directory pages are outside text search. Small connector, pin, and signal labels in the Service Manual wiring diagrams are readable when zoomed in. Indicator animations in the Operation Guide and Service Manual use legacy Flash. Static indicator and fault tables are included.

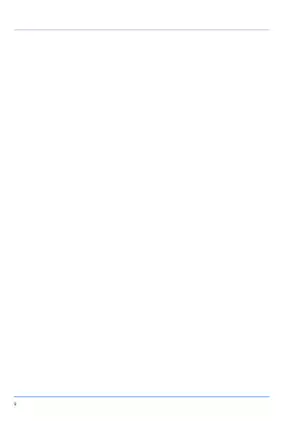

The ZIP contains three printable English-language PDFs totaling 271 pages, including the original covers, blank pages, directory pages, and the Operation Guide’s quality certificate.


Paper Feed, Print Engine Repair, and Parts Lookup

These are selected topics from the three publications. The Operation Guide also covers preparing the printer for a move, and the Service Manual explains how to identify system and engine firmware files.

  • Setup and printing: Paper and media selection, cassette and front feed loading, USB and optional network connections, Express and Custom Windows driver installation, Mac OS X setup, and KX printing.
  • Routine maintenance: Step-by-step toner replacement, interior and charger-wire cleaning, and jam clearing through the feed trays, process-unit area, duplexer, and rear fuser exit.
  • Print engine repair: Removal and refitting of the covers, cassette feed and retard rollers, duplex-model MP feed roller, developing unit, drum, main charger, transfer roller, and fuser.
  • Electrical service: Replacement procedures for the main motor, laser scanner, eraser lamp, cooling fans, and major PWBs, with separate simplex and duplex wiring diagrams.
  • Fault finding: Maintenance Mode status and event reports, paper-path sensor charts, indicator-based diagnostic codes, image-defect tables, and separate electrical and mechanical checks.
  • Parts lookup: Exploded views with OEM and alternative part numbers for covers, frames, paper feed, image formation, developing, fuser, drive, duplex, and electrical assemblies.

The Operation Guide suits owners handling everyday upkeep. Internal diagnosis and repair are for qualified printer service personnel.

Paper Paths, Drivers, and Options

The FS-1100 uses manual sheet reloading for two-sided printing. The FS-1300D has a built-in automatic duplex path. The optional PF-100 adds one cassette to the FS-1100 or up to two to the FS-1300D. The guide also covers expansion memory, the IB-23 network interface card, and CompactFlash.

The KX Status Monitor reports printer conditions and events. The Configuration Tool covers settings for printers connected by USB, including paper source and sleep settings.

Fault Isolation and Repair Checks

The service status page and event log show firmware information, page counts, installed devices, sensor states, jam and fault history, toner replacements, and maintenance counters. A technician can use the jam history to narrow a recurring misfeed to the tray or sensor area before opening the printer.

Machine cross sections and MP feed block diagrams show how paper moves through each build. The fuser block diagram, power-source and control PWB layouts, and connector pin tables help trace heater, sensor, clutch, and motor signals. The fault tables cover EEPROM, main motor, laser scanner, fuser temperature, zero-cross, memory, and feeder faults.

The Service Manual also covers toner priming after developing-unit replacement, EEPROM transfer when replacing the control PWB, fuser pressure adjustment for paper curl or creasing, and CompactFlash firmware updates. An interrupted update can leave the control PWB needing replacement. Inserting or removing an optional memory or network card with power on can damage the card and printer. Fuser, power-supply, and high-voltage work involves heat or electrical hazards and calls for proper power isolation.

Parts That Vary by Model and Destination

The Parts List pairs DV-142(U), DV-140(E), and DV-144(AO) developing units with the FS-1100, and DV-132(U), DV-130(E), and DV-134(AO) with the FS-1300D. Check the destination column when choosing an FK-130 fuser or switching regulator. Separate listings identify the simplex and duplex control PWBs, frames, feed and drive assemblies, and duplex-only hardware.

Sample Print-Defect Spacing

The Service Manual’s repetitive-defects gauge gives a 94 mm repeat interval for the drum. It lists 73.162 mm for the fuser heat roller and 78.5 mm for the fuser press roller. Comparing the spacing of repeated marks with the gauge helps narrow the source to the drum or a specific fuser roller.
