1998 Yamaha F100X Outboard Motor Service Manual

Wiring diagrams, specifications, and repair sequences for the 1998 Yamaha F100X Outboard Motor. Publication LIT-18616-01-96.

4.5starstarstarstarstar_half(4)
visibility Preview Available
Yamaha 1998 Yamaha F100X Outboard Motor Service Manual manual page preview - page 1 of 278+1

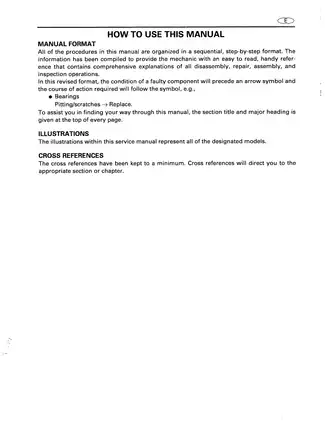

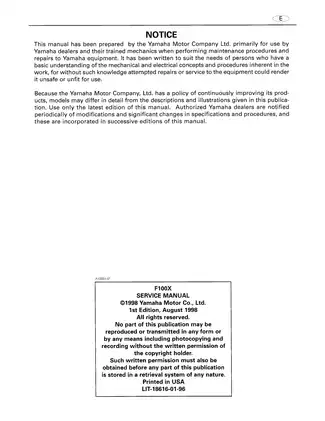

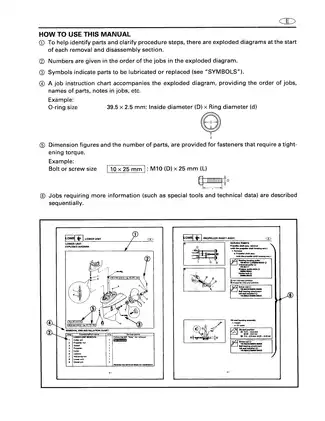

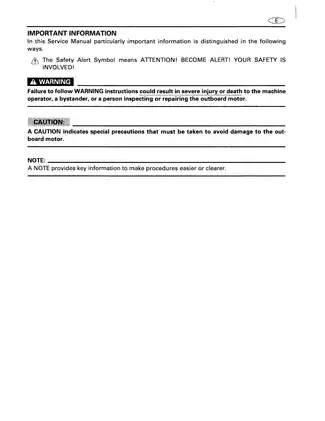

Sample pages from the 1998 Yamaha F100X Outboard Motor Service Manual manual

Yamaha 1998 Yamaha F100X Outboard Motor Service Manual manual preview page 1 - thumbnail
info_outline Click thumbnails to preview different pages
$12.97 (incl. VAT) Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal

Yamaha Models Covered & Key Technical Specifications

Models: Yamaha F100X, F100AET, F100TR
Sub-models / Variants: L (transom height), X (transom height)
Build Years: 1998
Serial Numbers: F100AET L: 300101~, X: 700101~
Technical Data:

  • Engine type: In-line, 4-stroke, DOHC, 16 valves
  • Displacement: 1,596 cm³ (97.39 cu. in)
  • Bore x stroke: 79.0 x 81.4 mm (3.11 x 3.20 in)
  • Compression ratio: 9.6:1
  • Maximum output: 73.6 kW (100 HP) @ 5,500 r/min
  • Lubrication system: Wet sump
  • Engine oil capacity (with filter): 4,700 cm³
  • Gear oil capacity: 670 cm³
  • Idle speed: 850–950 r/min
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
28415 / Jessica White
File Size:
8.46 MB
File Type:
PDF
Language:
English
Pages:
278+1
Printable:
Yes
Category:
Outboard Motor
Last updated / verified
Mar 22, 2026

Yamaha Manual Features & Content Preview

Yamaha F100X Outboard Technical Scope

  • Covers 1998 Yamaha F100X and F100AET/F100TR series outboards, including both L and X transom height configurations.
  • Official Yamaha publication P/N LIT-18616-01-96, first edition August 1998.
  • Contains 47 detailed exploded-view diagrams and 35 individual tightening torque tables for major assembly segments.
  • Re-download the file any time, no expiration.
  • Indexed PDF search covers every chapter and appendix.
  • Accessible from your device as soon as the order is placed.
  • This 1998 first edition serves as the foundational reference for the F100 series launch, documenting proprietary DOHC 16-valve engine specifications.

Engine and Fuel System Documentation

The 1998 Yamaha F100X service manual covers major system groups through detailed diagnostic and assembly workflows. The documentation includes exhaustive sections on the four-cylinder power unit, starting with complete cylinder head, camshaft, and valve train specifications. Maintenance chapters guide the user through proper lubrication cycles, timing belt inspection parameters, and carburetor synchronization. Fuel system coverage highlights the intake assembly, fuel pump internal components, and the electrothermal valve unit with integrated electrical resistance values.

Specification Highlights and Technical Data

Technical sections provide critical reference values for engine assembly and periodic maintenance. The engine compression ratio for the 1998 Yamaha F100X is specified at 9.6:1 in the power unit data table. Valve clearance for the intake is listed at 0.20 ± 0.03 mm in the cylinder head specification table. The F100X ignition timing range is documented as 5° ATDC to 25° BTDC in the electrical maintenance charts. Reference only — always consult a certified technician before performing service on this equipment. An official 279-page Yamaha OEM workshop manual covering the 1998 Yamaha F100X, documenting engine, chassis, electrical, and fuel-injection specifications for the F100 series build.

Manual FAQ, Purchase & Download Details

Does this manual provide technical data for fluid capacities and engine oil quantities? keyboard_arrow_down

Yes, the specification tables included in the document list the required fluid quantities for the engine, including the specific total volume needed when the oil filter is replaced.

What is the official publication identifier and page length for this specific manual? keyboard_arrow_down

Document is identified by publication number LIT-18616-01-96 and was published as the first edition in August 1998. The digital file encompasses 278 pages of technical content.

Which chapters contain detailed exploded views and component diagrams for the power unit and lower unit systems? keyboard_arrow_down

Chapter 5 and Chapter 6 provide exploded diagrams and parts illustrations for the power unit and lower unit assemblies. These illustrations show component order and assembly relationships to assist with parts identification. The manual uses these views alongside technical data to define system structure.

Can I confirm the publication year and document revision status for the F100X outboard motor? keyboard_arrow_down

Cover pages and document identification data confirm this manual is the 1998 first edition for the Yamaha F100X model.

Is there information provided regarding electrical system wiring diagrams and connector references? keyboard_arrow_down

Chapter 8 of the manual covers electrical systems and includes references for system components. These sections provide the necessary documentation to understand electrical layouts and connector configurations.
