Yamaha 40W/50W, 40C/50C & F40B Outboard Manual Collection with Jet Drive, 1997–2004 (P/N LIT-18616-01-81)

The service manuals provide engine and propeller-drive repair information; the Jet Drive supplements supply the corresponding jet-specific operating, installation and service material.

Coverage is publication-specific. Check the model codes and starting serial numbers before purchase. The Jet Drive supplements are intended for use with the applicable outboard owner's and service manuals and do not replace full engine repair documentation for every listed powerhead.

PDF Search, Bookmarks and Page Breakdown

Finding text and reading diagrams: Text search is available in the 40C/50C manual and both four-stroke Jet Drive supplements. The other sections lack searchable text. Embedded bookmarks provide chapter navigation for the three main service manuals and starting points for the Jet Drive supplements; the second F40B copy has no dedicated bookmark. Small wiring labels require zooming, and some tiny connector numbers in the second F40B copy remain faint.

One printable 1,074-page PDF contains the publications listed above, including the repeated F40B material. Covers, publication pages, warranty material, templates, a notes page and 15 blank pages are already included in the total.

Powerhead, Gearcase and Jet Pump Service

The following selected coverage highlights major workshop tasks rather than reproducing the full contents. Other topics include anode inspection and storage preparation.

• Two-stroke fuel systems: Fuel-joint, filter and pump service, carburetor disassembly and inspection, Prime Start testing, and oil-injection system checks.

• Two-stroke powerheads: Step-by-step procedures for power-unit removal, recoil-starter service, flywheel-magneto removal, reed-valve inspection, and crankshaft-and-piston repair.

• Gearcase service: Water-pump repair, propeller-shaft and gear inspection, regional shim-selection methods, and forward and reverse gear backlash measurement.

• Steering and trim: Tiller and steering linkage, clamp and swivel brackets, manual and hydro-tilt arrangements, and power-trim-and-tilt disassembly and service.

• F40B four-stroke repair: Carburetor synchronization, valve-clearance adjustment, timing-belt and sprocket installation, camshaft and valve service, oil-pump inspection, and internal powerhead repair.

• Electrical diagnosis: Starter and charging-system diagrams, component locations, wiring-connection checks, peak-voltage tests, resistance specifications, and fault-isolation charts.

• Jet Drive service: Mounting and test running, impeller-clearance setting, shift-cam and neutral adjustment, pump disassembly, bearing and seal-housing overhaul, and liner replacement.

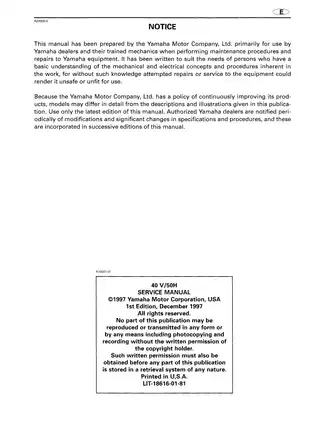

The factory service manuals were written primarily for Yamaha dealers and trained mechanics with a basic understanding of mechanical and electrical service; the Jet Drive overhaul sections recommend an authorized Yamaha dealer.

Powerhead Inspection and Fuel-System Differences

The two-stroke inspection sections pair removal and installation charts with limits for cylinder bores, pistons, rings, crankshaft runout, reeds and bearings. Fuel specifications distinguish model-dependent main and pilot jet selections, with float-height and electrothermal-valve checks.

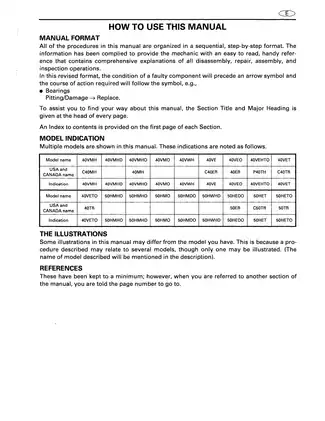

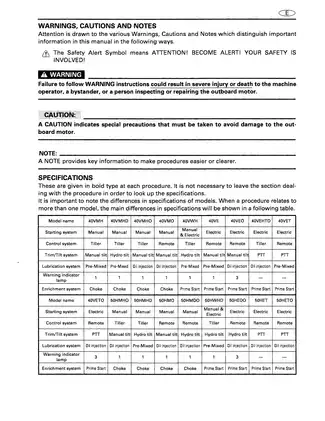

The model matrices separate manual and electric starting, tiller and remote control, manual tilt, hydro tilt and PTT. They also distinguish premixed and oil-injection lubrication, choke and Prime Start enrichment, and one- or three-lamp warning systems. These distinctions help match the parts and test procedures to the outboard's configuration.

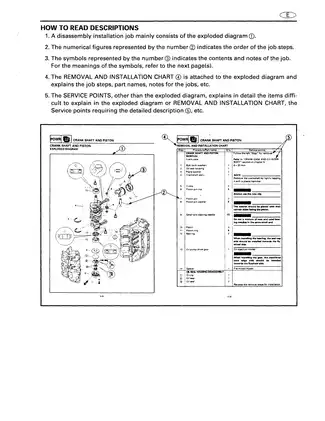

Fuel-line and oil-line layouts support hose identification, while crankshaft-and-piston exploded views show assembly relationships. The special-tool tables identify the YB-06139 flywheel holder and YB-06117 flywheel puller, with corresponding 90890-series numbers where listed.

F40B Cylinder-Head and Internal Engine Work

F40B cylinder-head procedures include valve-guide replacement and valve-seat refacing. Internal engine inspection extends to main-bearing and connecting-rod big-end oil clearances, supported by the relevant bearing-selection information.

The oil-seal installation section warns that fitting the crankcase seals after tightening the case bolts can damage the seals.

Gear Setup, Brackets and Workshop Tools

The shimming chapters distinguish reassembly with the original case and internals from replacement of the case or internal parts. Separate U.S./Canada and other-market methods cover pinion and forward/reverse gear setup before final backlash checks.

Drive-shaft, forward-gear and shift-rod exploded views support the lower-unit work. PTT tilt-cylinder and pump-housing views accompany the bracket procedures; the F40B material also describes reservoir filling and bleeding.

Tool references include the YU-03097 dial indicator, YB-06265 backlash indicator and YB-06175-2B tilt-cylinder wrench.

Ignition Diagrams and Fault Isolation

The F40B manual provides separate MH and ER/TR ignition-system diagrams, plus MH, ER 7-pin, ER 10-pin and TR wiring-harness layouts. Its peak-voltage troubleshooting chart addresses poor starting, unstable idling and unstable engine speed, linking symptoms to harness, ignition-coil, charge-coil, pulser-coil and CDI checks.

Jet Drive Installation and Repair Cautions

The four-stroke editions include model-specific parts lists, installation drawings and tiller shift-cable templates. Their application lists differ, so use the edition matching the powerhead and jet-drive configuration.

The Jet Drive overhaul material explains that trapped grease pressure can damage both the pump seals and housing. Fuel-system work, ignition testing, rotating assemblies and trim/tilt service should be handled with the safety practices and test equipment specified in the manual.

A Preview of F40B Valve and Carburetor Settings

The F40B valve-clearance section specifies 0.20 ± 0.05 mm for the intake valves and 0.30 ± 0.05 mm for the exhaust valves, measured with the engine cold.

Its carburetor inspection gives a float height of 14.0 ± 0.5 mm, measured at the top of the float flange opposite the pivot, with the float resting on the needle valve without compressing it.
