1990 Yamaha CV115E Outboard Service Manual Collection (P/N LIT-18616-00-56)

The service manuals cover different outboard configurations, with separate procedures for carbureted two-stroke and fuel-injected four-stroke engines. The Jetdrive publication supplements the applicable outboard owner’s and service manuals with jet-specific operating and service information.

X-series section: The C115X, 115X, S115X, B115X, 130X, S130X and L130X cover is followed by the same contents as the preceding W-series section. This section does not provide a distinct X-series revision.

PDF Search, Bookmarks and Wiring Detail

Search and diagram detail: Text search is available in the 115C/130C and F115C/LF115C sections; the other sections do not support PDF text search. Embedded bookmarks provide manual and chapter navigation. Some small CV115E wiring labels and fine lines remain difficult to distinguish when enlarged; the later color wiring diagrams show clearer connector and wire-color detail.

The collection is supplied as one printable, 2,024-page PDF. The section counts above include their covers and other preliminary pages, seven additional cover pages, three blank pages and one notes page.

Powerhead, Fuel System and Drive Service

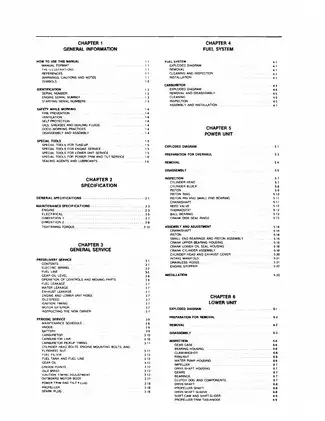

The following selected topics show the repair and diagnostic coverage. Other included subjects include anode inspection and trim-sender adjustment.

• Powerhead repair: Removal, disassembly, internal inspection and reassembly, including pistons, crankshafts, bearings, reed valves and thermostats in the applicable engine sections.

• Carbureted fuel systems: Fuel-pump inspection, carburetor overhaul, linkage synchronization, pickup timing and ignition-timing adjustment.

• Four-stroke EFI service: High-pressure fuel testing, vapor-separator service, valve-clearance adjustment, timing-belt replacement and electronic fault diagnosis.

• Lower unit repair: Gearcase disassembly, bearing and seal service, forward/reverse gear shimming, backlash measurement and water-pump impeller replacement.

• Bracket and trim systems: Bracket-unit service, power trim-and-tilt disassembly, hydraulic pressure testing, air bleeding and motor inspection.

• Electrical troubleshooting: Wiring diagrams, stator and coil tests, CDI checks, starter-motor overhaul, rectifier continuity tables and symptom-based troubleshooting charts.

• Jetdrive service: Mounting and linkage adjustments, impeller clearance, bearing-housing overhaul and liner replacement for the configurations treated in the Jetdrive publication.

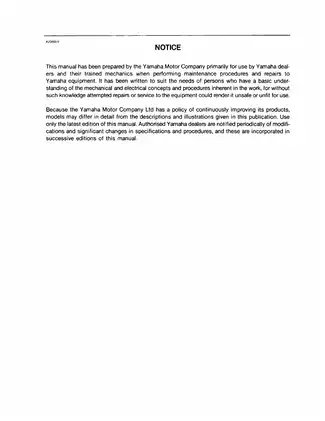

The service manuals were written primarily for Yamaha dealer technicians and trained mechanics with a basic understanding of mechanical and electrical systems.

Powerhead Inspection and Fuel-System Work

The CV115E’s Schnurle, or loop-charge, powerhead section provides step-by-step procedures for removal, crankcase disassembly and reassembly. Inspection coverage extends to cylinder condition, piston fit, ring clearance, crankshaft deflection and reed-valve condition, with component-specific torque tables and assembly illustrations.

Carburetor service includes float and needle-valve inspection alongside synchronization and timing adjustments. The CV115E notes warn that overtightening a pilot screw can damage its tip.

Four-stroke procedures: The F115/LF115 publications add camshaft and valve work, timing-belt installation, vapor-separator disassembly and fuel-pressure-regulator checks. Their EFI troubleshooting sections connect symptoms and diagnostic indications with fuel-delivery, sensor and ignition checks.

Gearcase and Trim-System Repair

Lower-unit procedures distinguish forward-gear, pinion and reverse-gear shim selection, supported by measurement illustrations and backlash charts. Water-pump exploded views and shift-slider assembly drawings show the relationships between the impeller, drive shaft, propeller shaft and clutch components.

The bracket chapters cover trim-and-tilt cylinders, valves, hydraulic-fluid bleeding and pressure testing. In the CV115E manual, the factory-adjusted gear pump is treated as a replacement assembly rather than an internal overhaul item.

Fault Tracing and Workshop References

The model-specific specifications and troubleshooting charts support diagnostic and repair planning. For a CV115E no-start complaint, the flowcharts distinguish battery and starter faults from fuel-delivery, ignition and internal-engine checks.

Reference material includes periodic inspection charts, ignition-timing illustrations, gear-shimming charts, wiring diagrams and rectifier continuity tables. The CV115E hydraulic tests identify pressure gauge YB-6181; the four-stroke fuel-system procedures identify fuel-pressure gauge YB-06766.

Follow the manual’s pressure-relief and battery-disconnection precautions before fuel, hydraulic or electrical work.

A Preview of CV115E Cylinder and Ring Inspection Limits

For CV115E cylinder inspection, the manual lists a maximum taper of 0.08 mm. The cylinder-head inspection section gives a maximum allowable warpage of 0.10 mm, alongside the related checking and resurfacing information.

The piston-ring inspection section specifies an end gap of 0.30–0.40 mm. These examples accompany the illustrated inspection procedures and distinguish dimensional checks from the broader removal and assembly instructions.
