Yamaha V200X, S225X, L225X, V225X, S250X & L250X – 1998 Outboard Service Manual (P/N LIT-18616-02-02)

Yamaha’s factory service manual covers the 1998 V200X, S225X, L225X, V225X, S250X, and L250X outboards. P/N LIT-18616-02-02, first edition November 1998, addresses maintenance, mechanical repair, electrical testing, and troubleshooting across nine chapters.

PDF Bookmarks and Wiring Detail

Navigation and small labels: Embedded PDF bookmarks provide access to chapters and major sections; PDF text search is not available. Small wire-color codes and connector numbers require zooming.

Supplied as one printable English PDF with 362 pages, including the front and back covers, six front-matter pages, and two blank pages.

EFI, Powerhead, Gearcase, and Trim Service

The following selected coverage highlights outline the main workshop areas rather than reproduce the complete contents. Other topics include top-cowling latch adjustment and anode inspection.

• Maintenance and controls: Maintenance interval charts, throttle-valve synchronization, throttle position sensor adjustment, and remote-control shift and throttle cable adjustment.

• Fuel injection: Fuel-pressure and regulator tests, vapor separator service, injector removal, and high- and low-pressure fuel pump disassembly.

• Powerhead repair: Step-by-step procedures for power unit removal, flywheel magnet removal, cylinder-head and crankcase service, and piston and connecting rod assembly.

• Lower units: Regular- and counter-rotation gearcase repair, water-pump service, shaft and bearing inspection, shim selection, and gear-backlash measurement.

• Oil injection: Oil-pump synchronization, air bleeding, discharge measurement, oil tank service, and oil-feed control-system checks.

• Brackets and hydraulics: Steering arm, clamp and swivel bracket service, trim and tilt ram inspection, gear-pump repair, and hydraulic bleeding procedures.

• Electrical troubleshooting: System wiring diagrams, ignition and charging tests, starter-motor overhaul, self-diagnosis codes, and EFI troubleshooting charts.

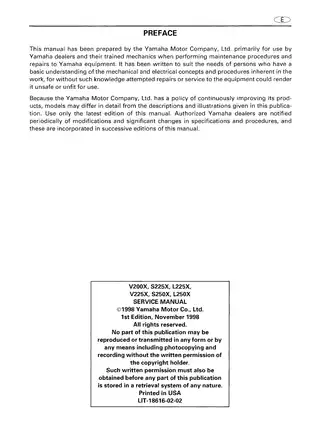

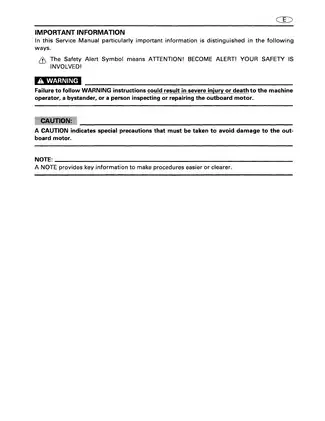

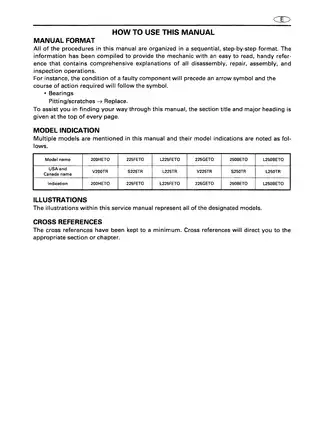

Written primarily for Yamaha dealers and their trained mechanics, this manual assumes a basic understanding of the mechanical and electrical concepts involved in outboard service.

Fuel Delivery and Oil Injection

Fuel-system exploded views and job instruction charts identify injector filters and seals, vapor-separator float components, and fuel-hose connections. Pump inspection extends to diaphragms, check valves, and pressure/vacuum testing.

Removing a fuel-hose clamp without cutting its joint can damage the hose. The high-pressure-line section also explains pressure-release precautions for vapor-separator service, where retained pressure can spray fuel.

Oil-injection coverage connects the pump linkage, distribution hoses, engine oil tank, and remote sub-oil tank. Discharge testing specifies oil-temperature and air-bleeding conditions, while electrical checks address the level sensor, emergency switch, and sub-tank pump.

Powerhead Inspection and Reassembly

Powerhead instructions combine exploded views, job instruction charts, dimensional drawings, wear limits, and tightening sequences. Internal work includes torsional damper removal, crankshaft and labyrinth-ring inspection, oil-pump drive components, and piston-to-cylinder clearance assessment.

Piston installation guidance distinguishes port- and starboard-side assemblies. Cooling and intake checks cover reed-valve warpage, thermostat opening and lift, and pressure control valve inspection.

Gearcase and Trim Variants

Gearcase shimming is divided into U.S./Canada gauge-based methods and alternative measurement-and-calculation methods. Counter-rotation coverage includes rear-propeller-shaft free-play adjustment. Excessive pressure during lower-unit leak testing can damage the oil seals.

Bracket and hydraulic procedures distinguish V200/V225 assemblies from S225/L225/S250/L250 assemblies. The latter have separate relief valve, main valve, and manual valve sections; hydraulic pressure testing is documented for the V200/V225 trim and tilt assembly.

Circuit Tracing and Fault Diagnosis

Ignition System, Fuel Control System, Charging System, Oil Feed Pump Control System, and Power Trim and Tilt System diagrams include connector views and wire-color keys. Component tests cover the CDI unit, stator coils, shift cutoff switch, throttle position sensor, and oxygen density sensor.

Starter-motor overhaul includes pinion, armature, brush, and commutator inspection. Junction-box service identifies the relays, fuses, and rectifier/regulator connections.

The trouble-analysis charts connect symptoms with component checks and chapter references, helping a mechanic plan diagnosis across fuel, ignition, and control systems. Self-diagnosis uses flash-code charts and the specified diagnostic indicator, YB-06765 / 90890-06765.

Examples of Torque, Fuel-Pressure, and Capacity Data

Cylinder-head specifications identify two tightening stages: 15 Nm and 28 Nm. The electrical specifications list a starter-motor output of 1.1 kW.

The high-pressure fuel-line test specifies 250 kPa (35.6 psi), measured after one minute at idle. Gear-oil quantities distinguish regular-rotation units at 1,150 cm³ from counter-rotation units at 1,000 cm³.
