1999 Yamaha P60X, C60X, 70X, 75X, P75X, C75X, 90X, B90X, C90X Outboard Service Manual (P/N LIT-18616-02-05)

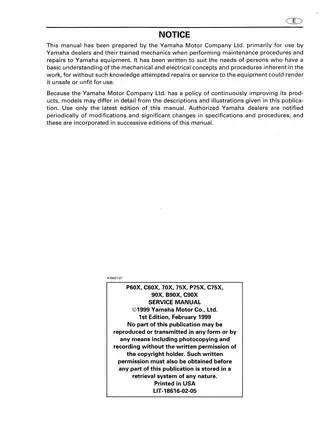

This Yamaha service manual covers the P60X, C60X, 70X, 75X, P75X, C75X, 90X, B90X, and C90X outboards and their listed worldwide variants. It is the February 1999 first edition, publication LIT-18616-02-05, with cover code 6H2-28197-Z9-11.

• Powerhead repair: Powerhead removal, crankcase disassembly, piston and connecting-rod inspection, crankshaft main-bearing service, reed-valve checks, thermostat testing, and reassembly.

• Fuel and oil systems: Carburetor overhaul and synchronization, fuel-pump inspection, oil-injection pump output testing, pump-link adjustment, and oil-level warning checks.

• Lower-unit service: Water-pump impeller replacement, gearcase overhaul, pinion and propeller-shaft work, clutch-dog inspection, shim selection, backlash measurement, and leakage testing.

• Bracket and trim systems: Bracket disassembly, trim-sensor adjustment, power trim and tilt repair, hydraulic bleeding, pressure tests, and trim-motor inspection.

• Electrical diagnosis: Model-specific wiring diagrams, CDI peak-voltage tests, crank-position sensor checks, charging-system diagnosis, starter-motor overhaul, and switch and relay tests.

• Workshop references: Periodic maintenance charts, exploded views, piston-ring sections, outboard dimension drawings, tightening torques, wear limits, and special-tool tables.

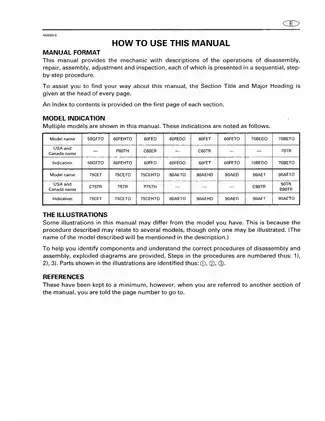

Written primarily for Yamaha dealers and trained mechanics, this manual assumes an understanding of the mechanical and electrical principles involved in service work.

Model Identification and System Variants

The identification tables cover 62F, 6H2, 6H3, 6H0, and 6H1 model codes, with starting serial numbers by transom height. Configuration tables distinguish manual and remote controls, manual tilt and power trim and tilt, and premix and oil-injection systems.

Carburetors, Timing, and Oil Injection

Separate carburetor exploded views distinguish C60ER, C60TR, and C75TR versions from models with electrothermal enrichment valves. Inspection covers float height by carburetor stamp, needle valves, and enrichment components. Cleaning jets with steel wire can enlarge their openings and impair performance.

Ignition procedures cover timing-plate alignment, throttle-sensor linkage, full-advance and full-retard checks, and pickup timing.

The oil-pump output test specifies oil temperature and measured discharge, with separate criteria for the engine groups.

Powerhead Inspection and Gearcase Setup

Cylinder inspection covers taper, out-of-round, and piston clearance. Connecting-rod big-end assembly has a separate procedure for the 75, 80, and 90 hp engines; torque tables distinguish staged tightening for cylinder heads, crankcases, and intake manifolds.

Lower-unit adjustment: Separate US/Canada and other-market shim-selection procedures address the pinion, forward gear, and reverse gear. Comparing forward and reverse backlash helps identify pinion-height errors before final assembly. The tool tables identify backlash indicator YB-06265 / 90890-06706.

Drive-shaft, propeller-shaft, clutch-dog, and shift-rod inspections accompany the gearcase assembly instructions. Water-pump installation and the lower-unit leakage test complete this section.

Bracket, Hydraulic Tilt, and Power Trim

The PTT sections distinguish short-transom 6H308 units from long-transom 6H1-15 and 62F-02 units. Hydraulic circuit diagrams and pressure-test tables accompany cylinder, valve, and motor service.

The separate hydraulic tilt cylinder is inspected and replaced as an assembly; Yamaha prohibits its overhaul. The PTT procedures also specify replacement of the factory-adjusted gear-pump assembly.

Support the raised outboard during bracket and trim-sensor work, and follow the manual's precautions for pressurized hydraulic components.

Electrical Tests and Fault Tracing

CDI test tables separate cranking and running readings and identify test-lead colors. Measurement notes address battery condition and meter resistance, while dedicated C60ER/C60TR and C75TR diagrams accompany remote-control-box and digital-meter wiring.

The Trouble Analysis Chart links starting, idling, overheating, shifting, trim, and charging symptoms to relevant components and chapters. Starter-motor procedures distinguish the smaller and larger engine groups.

Sample Powerhead Assembly and Gearcase Specifications

These figures are a small selection of the manual's assembly and service data.

For 50, 60, and 70 hp engines, cylinder-head tightening is specified in two stages: 15 Nm and 32 Nm. Intake-manifold tightening uses 4 Nm and 8 Nm stages, and standard piston-to-cylinder clearance is 0.050–0.055 mm.

Gear-oil capacity is 500 cm³ for the 50 hp model and 610 cm³ for the 60, 70, 75, 80, and 90 hp models.

PDF Navigation and File Contents

Bookmarks and wiring detail: PDF text search is unavailable. Embedded bookmarks cover all nine chapters and selected subsections; the main-index bookmark points to a separate file. Small wiring labels require enlargement, and several diagrams are arranged sideways.

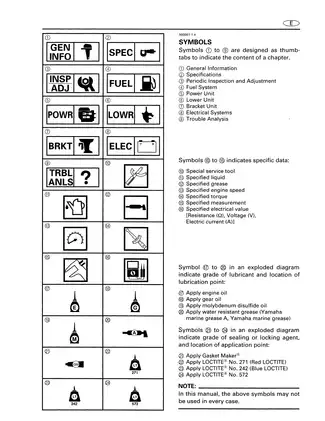

Supplied as one printable English 195-page PDF. The total includes six opening pages: the cover, publication notice, three pages explaining manual use, and overall index. The remaining 189 pages contain the chapters and their section indexes.
