Toyota Models Covered & Key Technical Specifications

Model: Camry

Models & Model Codes:

Camry — FWD Sedan, 3S-FE (SV21). U.S.: SV21L-UEMBKA, SV21L-UEPBKA, SV21L-UEMDKA, SV21L-UEPDKA, SV21L-UEPNKA. Canada: SV21L-UEMDKK, SV21L-UEPDKK, SV21L-UEMNKK, SV21L-UEPNKK.

Camry — FWD Wagon, 3S-FE (SV21). U.S.: SV21LG-UWPDKA. Canada: SV21LG-UWMDKK, SV21LG-UWPDKK, SV21LG-UWPNKK.

Camry — FWD Sedan, 2VZ-FE (VZV21). U.S.: VZV21L-UEMDKA, VZV21L-UEPDKA, VZV21L-UEPNKA. Canada: VZV21L-UEMNKK, VZV21L-UEPNKK.

Camry — FWD Wagon, 2VZ-FE (VZV21). U.S.: VZV21LG-UWPDKA, VZV21LG-UWPNKA. Canada: VZV21LG-UWPNKK.

Camry — All-Trac 4WD Sedan, 3S-FE (SV25). U.S.: SV25L-UEMDKA, SV25L-UEPDKA, SV25L-UEPNKA. Canada: SV25L-UEMDKK, SV25L-UEPDKK, SV25L-UEPNKK.

Camry — Collision body repair only: SV20, SV21, CV20.

Sub-models / Variants: Sedan, Wagon, STD, DLX, LE, FWD, All-Trac 4WD, 3S-FE engine, 2VZ-FE engine

Model Years: 1987–1991 (1987, 1988, 1989, 1990, 1991)


  • Engine: 2.0L 4-cylinder (3S-FE) or 2.5L V6 (2VZ-FE)

  • Transmission: 5-speed manual: S51 (3S-FE FWD), E52 (2VZ-FE FWD), E56F5 (3S-FE All-Trac 4WD). 4-speed automatic: A140L or A140E (3S-FE FWD), A540E (2VZ-FE FWD), A540H (3S-FE All-Trac 4WD).

  • Engine Displacement: 1,998 cc or 2,508 cc

  • Horsepower: 115 HP @ 5,200 rpm (3S-FE) or 156 HP @ 5,600 rpm (2VZ-FE)

  • Max Torque: 124 ft-lbs @ 4,400 rpm (3S-FE) or 160 ft-lbs @ 4,400 rpm (2VZ-FE)

  • Fuel System: Electronic Fuel Injection (EFI)

  • Drive System: FWD or All-Trac 4WD

Toyota Manual Features & Selected Content Preview

Publication Pages
1990 Camry Repair Manual, Volumes 1 and 2 — P/N RM151U1 and RM151U2; 24 readable section PDFs for left-hand-drive U.S. and Canadian SV21, SV25, and VZV21 configurations 1,569
1990 Camry Electrical Wiring Diagram material — system circuits, relay locations, wire routing, connectors, and ground points 185
Camry Collision Body Repair Manual — SV20/SV21 and CV20 bodies for general destinations 111

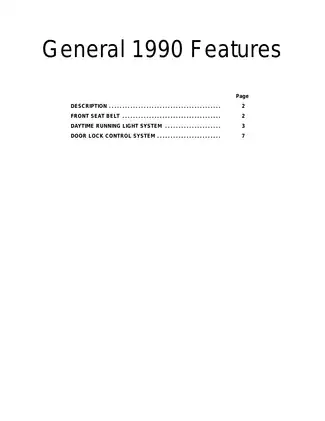

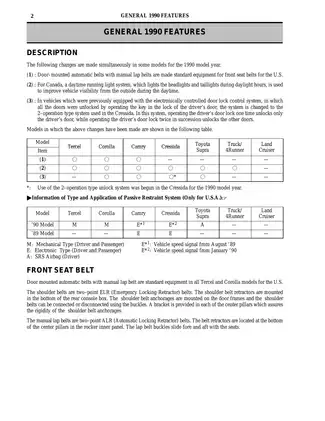

1990 New Car Features excerpts — P/N NCF059U; general features, Camry changes, and specification appendices 27
1991 New Car Features excerpts — Camry changes, model lineup, and specification appendices 10
1991 Camry A540E/A540H Automatic Transaxle Repair Manual — disassembly, inspection, and assembly 199

Use the electrical diagrams alongside the repair chapters to connect circuit layouts with component tests. The New Car Features excerpts explain changes that can affect diagnosis and parts selection; they do not replace year-specific repair procedures.

Coverage limits: Factory repair coverage is centered on 1990. This is not a year-by-year repair set for every 1987–1991 configuration. The additional manual-transaxle PDF contains S51/E52 material and part of the E56F5 section, but it is damaged and truncated; complete manual-transaxle overhaul coverage is unavailable. The separate 1991 A540E/A540H volume assigns on-vehicle inspection, adjustment, troubleshooting, removal, and installation to the applicable 1991 Camry Repair Manual, RM199U, which is not included.

PDF Search, Bookmarks, and File Contents

Search and diagram detail: Text search and embedded bookmarks are available in the 29 readable PDFs. Some diagram labels and model-lineup tables are image-based and cannot be searched. Many bookmarks use abbreviated filenames. Small wire and connector labels require zooming; some body-electrical illustrations are softer than the dedicated wiring diagrams.

The ZIP contains 30 PDF files: 29 readable, printable PDFs totaling 2,101 pages, plus one damaged manual-transaxle PDF excluded from that total. Forewords, section title pages, reference appendices, and the note page in the 1990 New Car Features file are already included.


Engine Overhaul, Transaxle Diagnosis, and Body Repair

The following is a selection of covered work, rather than a complete contents list. Other topics include clutch hydraulic bleeding and propeller-shaft support-bearing service.

  • Engine repair: Step-by-step timing-belt replacement, valve-clearance adjustment, cylinder-head and camshaft work, engine removal and installation, and cylinder-block overhaul for 3S-FE and 2VZ-FE engines.

  • EFI and ignition: Diagnostic codes, symptom charts, ECU terminal checks, fuel-pressure and injector testing, air-flow-meter inspection, throttle checks, and idle-control diagnosis.

  • Automatic transaxles: A140L/A140E and A540E/A540H diagnosis, stall and time-lag tests, hydraulic testing, on-vehicle repair, removal, installation, and internal overhaul.

  • Axles and suspension: FWD and 4WD drive-shaft service, wheel-bearing work, alignment, suspension repair, rear-differential overhaul, and A540H transfer and center-differential procedures.

  • Brakes and steering: Conventional brake service, ABS fault diagnosis and sensor checks, power-steering pressure tests, pump repair, and steering-gear overhaul.

  • Electrical and HVAC: Wiring diagrams, connector views, starter and charging tests, body-electrical diagnosis, heater controls, and R-12 air-conditioning inspection and component service.

  • Body and collision repair: Glass replacement, panel adjustment, cut-and-join locations, welding, sealing, anti-rust treatment, and three-dimensional body measurements; painting is outside the collision manual’s scope.

The repair chapters are written for experienced technicians and assume familiarity with workshop measuring equipment and Toyota special service tools.

Engine Inspection and Fuel-System Diagnosis

Internal engine coverage extends to pistons, connecting rods, crankshafts, bearings, oil clearances, and cylinder-block inspection. Exploded illustrations distinguish reusable and non-reusable parts, while service-data sections collect torque specifications, inspection limits, capacities, and adjustments.

Cooling and lubrication chapters add water-pump, thermostat, radiator, oil-pressure, and oil-pump work. Separate emissions, exhaust, ignition, starting, and charging sections support diagnosis beyond the mechanical engine assembly.

The EFI/TCCS diagnostic charts connect symptoms and fault codes with ECU terminal measurements and component checks. The 1990 material also explains the 2VZ-FE knock-prevention correction function and hot-restart fuel-pressure control.

Toyota tool references include the 09842-30050 and 09842-30070 injector test leads. Camshaft handling cautions explain how tilting or forcing either engine’s camshaft can damage the cylinder-head thrust surface and cause seizure or breakage.

Automatic-Transaxle Testing and Rebuild Detail

The A140 and A540 chapters separate electronic-control faults from hydraulic and mechanical problems before teardown. Code retrieval, solenoid and speed-sensor checks, fluid and cable inspection, manual-shift tests, and pressure testing help narrow the cause of shift complaints.

Rebuild material covers oil pumps, direct and forward clutches, brakes, planetary units, overdrive assemblies, valve bodies, differentials, and drive pinions. Clutch-application charts, sectional views, selective washers, shims, and preload specifications support component inspection and assembly.

A540H material adds center-differential control-pressure testing and transfer repair. Referenced equipment includes the 09350-32014 transaxle tool set and 09992-00094 oil-pressure gauge.

The A540 cautions address damage to the valve-body plate from prying out solenoids and oil-seal rings catching against the direct-clutch drum when the oil pump is forced into position.

Circuit Tracing and Model-Year Changes

Named circuit examples include Engine Control (3S-FE), Engine Control (2VZ-FE), ECT and A/T Indicator, All-Trac/4WD with ECT, A.B.S., and Canadian headlight/daytime-running-light control. System outlines, service hints, relay locations, connector views, and ground-point diagrams support tracing a fault through the circuit.

Body-electrical chapters cover lighting, combination meters, wipers and washers, power windows and seats, door locks, moon roof, automatic shoulder belts, audio, rear defogger, heater controls, and cruise control.

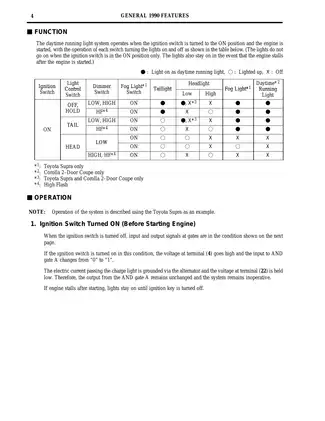

The 1990 changes include the revised S51 inboard drive-shaft joint, larger front brake rotor for 2VZ-FE models with ABS, Canadian daytime running lights, and two-operation door unlocking. The 1991 excerpts explain A140L/A140E torque-converter changes and the discontinuation of manual-transaxle All-Trac/4WD models. Appendix tables retain transmission pairings, curb weights, body dimensions, and engine-performance data.

Incorrect full-time 4WD towing, brake-test, dynamometer, or on-vehicle wheel-balancing setup can damage the center differential or transaxle gears. Brake, refrigerant, and full-time 4WD work requires the specified support, recovery, and test equipment.

Examples of Thermostat Inspection Data

For the 3S-FE, the cooling chapter specifies a thermostat opening temperature of 80–84°C (176–183°F) and valve lift of at least 8 mm (0.31 in.) at 95°C (203°F).

The 2VZ-FE uses the same opening-temperature range, but its minimum valve lift is 8.5 mm (0.335 in.) at 95°C (203°F). These engine-specific limits accompany the thermostat inspection material.
