Toyota 1998 Reach & Straddle Forklift Service Manual – 6BRU18, 6BRU23, 6BDRU15, 6BSU20, 6BSU25 (P/N 00700-CL220)
513 Pages • 1 Printable PDF (English) • Download
Toyota Models Covered & Key Technical Specifications
Models: 6BRU18, 6BRU23, 6BDRU15, 6BSU20, 6BSU25
Model Year: 1998
Serial Numbers: 20,001–29,999 (24 volt models), 30,001–39,999 (36 volt models)
-
Voltage variants: 24V and 36V configurations
-
Max load capacity: 2700 lbs to 5000 lbs depending on model and lift height (41" base leg opening)
-
Lift height: Up to 360 inches
-
Travel speed: 5.5 mph to 6.8 mph
-
Battery compartment sizes: 14.4", 16.4", and 21"
-
Hydraulic pressure: Approximately 1900–2200 psi at test port PT1 during the lift pressure test, with unloaded forks and the carriage at full lift against the stops
Toyota Manual Features & Selected Content Preview
This Toyota service manual (P/N 00700-CL220), issued October 1, 1998, covers the 1998 6BRU18 and 6BRU23 single-deep reach trucks, the 6BDRU15 double-deep reach truck, and the 6BSU20 and 6BSU25 straddle trucks within the serial ranges listed above.

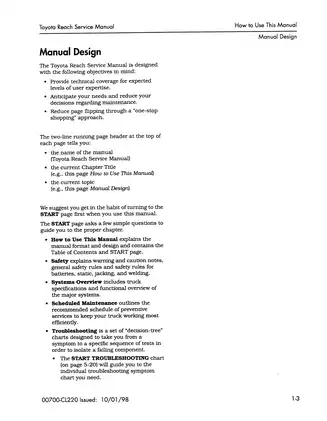

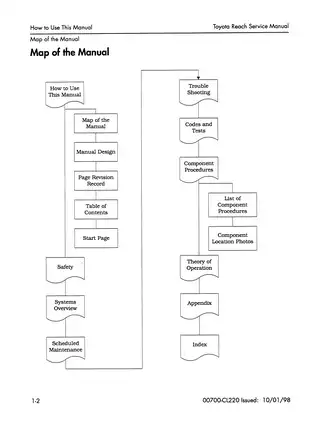

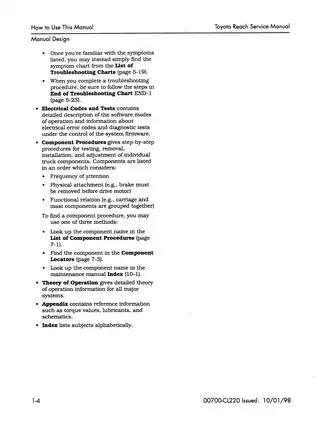

PDF Bookmarks and Schematic Detail
Search and navigation: Embedded bookmarks jump to the main chapters and selected subsections. PDF text search is unavailable. Some pin numbers and wire labels in the electrical schematic remain hard to read at high zoom, and parts of the hydraulic linework are faint or broken.
The download contains one printable English PDF with 513 pages, including the cover and seven intentionally blank pages.
Fault Diagnosis, Drive Unit and Mast Service
This selection of workshop topics covers the main diagnostic and repair sections. The manual also includes transport tie-down guidance and model-specific flow ratings for the freelift and staging velocity fuses.
- Electrical diagnosis: Decision-tree flowcharts for travel, lift-pump, and reach/retract faults, plus connector locator charts and photos, shorts-to-frame testing, and electrical fault-code explanations.
- Controls and calibration: Analyzer, Calibrate, Configure, Tuning, and Self-diagnosis modes, plus password access, brush wear warnings, and control-input tests.
- Steering and braking: Steer tach and motor replacement, steer-controller adjustment, deadman pedal service, electromagnetic brake inspection, and caster service for assemblies with or without brakes.
- Motors and drive unit: Drive and lift motor removal, brush and commutator inspection, contactor-tip checks, axle-seal replacement, and steering-bearing service.
- Hydraulics: Step-by-step procedures for separating the lift pump and motor, plus control-valve and solenoid service, hydraulic bleeding, and freelift, staging, reach, and tilt cylinder repair.
- Mast and carriage: Mast disassembly, roller-bearing shimming, lift-chain adjustment and replacement, reach-carriage repair, hose routing, fork inspection, and single and tandem load-wheel replacement.
This manual is suited to trained lift-truck service technicians with electrical diagnostic skills and the lifting equipment required for mast and carriage work.
Tracing Electrical and Control Faults
The connector locator charts and photos identify the Tractor Interface card, Display card, power amplifiers, and motor connections. Used with the troubleshooting flowcharts, they help your shop trace a fault to its circuit before replacing a control board.
Analyzer and Calibrate modes: Analyzer mode provides fault history and checks for switches, analog inputs, outputs, and software version. Calibrate mode covers the traction, lift/lower, and deadman potentiometers and the optional weight pressure transducer. The system overview explains how pulsed drivers let higher-voltage trucks use the same lift/lower coils.
Component service limits: The steer controller and traction and lift power amplifiers have no user-serviceable internal parts. The control handle is replaced as a unit. Motor procedures cover open-circuit and ground tests. Shorted-winding diagnosis calls for equipment at a motor rebuilding facility.
Reach Assemblies, Mast and Drive Unit
The system overview shows how the tractor, mast, and reach mechanism fit together. The hydraulic procedures cover cylinder disassembly and resealing and service of the reach/tilt/sideshift manifold. Separate tilt-cylinder and scissor-arm procedures distinguish the reach assemblies. A leaking or defective sideshift cylinder is replaced.
Assembly checks: Incorrect drive-unit positioning during adjustment can shear the steering sensor. Incorrect hose routing at the mast crossbar can shear a hydraulic hose as the mast rises. The drive-unit section also includes a gear-tooth contact-pattern chart.
Follow the manual's battery-isolation, static-discharge, mast-support, and jacking precautions. The manual reserves mast replacement for authorized personnel in an equipped service shop.
Maintenance Intervals and Circuit References
Scheduled maintenance runs from daily checks through annual service, with operating-hour equivalents and guidance for severe use. It identifies lubricants and inspection points for the drive unit, hydraulic system, and overhead guard mounting. Cold-storage conditioning covers Classes I, II, and III, with hydraulic and drive-unit oil selection by operating environment.
The appendix includes lubricant equivalency charts, standard and metric torque charts, decimal equivalents, and unit conversions. A two-part electrical schematic and separate hydraulic schematics for single-deep reach, double-deep reach, and straddle trucks support circuit tracing.
Brake Adjustment and Wear-Limit Examples
For electromagnetic brake adjustment, the manual specifies a 0.008–0.014 in. air gap, with no more than 0.003 in. variation around the circumference.
The brake friction plate replacement threshold is 15/64 in. (6 mm) or less. The inspection and replacement section includes a component photo identifying the plate.
