STILL R70-20, R70-25, R70-30 (2000) Diesel & LPG Forklift Workshop Manual (P/N 164544)

450 Pages • 1 Printable PDF (English) • Download

5.0starstarstarstarstar(1)
$26.59 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Still Models Covered & Key Technical Specifications

Models: R70-20, R70-25, R70-30

Sub-models / Variants: Diesel Fork Truck (DFG: R7062, R7063, R7064; MB OM 601, model 601 900 000, or VW ADG / 028.B), LPG Fork Truck (TFG: R7068, R7069, R7070; VW ADF / 026.2), ASM Diesel Fork Truck (R70i: R7065, R7066, R7067; VW diesel)

Drive / Transmission Variants: DC drive with Carraro 8.30 / 8.45 epicyclic axle (GF 186 - S9 motor) or AE 25 - 02 double-reduction spur gearbox (GF 186 - 24 / 1.2 motor); ASM drive with AE 25 - 02 double-reduction spur gearbox, AF 186 - T1 induction motor, and AC-AC converter U6. The DC electrical section also identifies a Linde axle with tachogenerator.

Engine Serial Break: VW ADG (028.B): from engine number 003255 upwards, semi-automatic toothed-belt idler pulley with revised belt installation procedure

Model Year: 2000


  • Wheel lock angle: 80–82°

  • Toe-in: 0 ± 1 mm

  • Wheel hub torque (steer axle): 225 Nm

  • Wheel nuts torque (steer axle): 425 Nm

  • Steer cylinder fixing torque: 210 Nm

  • King pin nut torque: 290 Nm

  • Drive axle frame bolt torque (Carraro): 600 Nm

  • Reduction gear torque (Carraro): 110 Nm

Still Manual Features & Selected Content Preview

The 2000 STILL forklift workshop manual (P/N 164544) covers the R70-20, R70-25, and R70-30 diesel and LPG trucks. Dedicated ASM sections cover the induction-drive equipment used on R70i trucks R7065, R7066, and R7067.

PDF Search, Diagrams, and Page Count

Search and diagram detail: Text search works on the cover and a few interior pages. Most body text uses a character encoding that prevents ordinary word searches. There are no embedded PDF bookmarks. Relay and connector labels are generally clear, while some small hydraulic and Lambda circuit labels remain faint or fragmented at higher zoom.

The download is one printable English-edition PDF with 450 pages, including the multilingual cover and 449 workshop pages. The total includes the integrated engine extracts, the System Diagnosis section, and one repeated Hi-Lo/Triple mast cylinder page.


Engine, Drive, and Lift System Service

These are selected workshop topics. The manual also covers FleetManager card-reader testing and parameter settings for optional electrical equipment.

  • Diesel engines: Mercedes-Benz OM 601 and Volkswagen ADG cylinder-head work, valve timing, fuel injection, lubrication, and cooling.
  • LPG engine and fuel system: Volkswagen ADF valve gear, TSZ-H ignition and Hall sensor testing, evaporator overhaul, mixer service, and diagnosis of the optional three-way catalyst system.
  • Electric drive: DC motor and generator brush, armature, and insulation checks, plus dedicated ASM motor, synchronous generator, converter, and cooling coverage.
  • Axles and brakes: Carraro reduction gear service, AE 25 - 02 gearbox construction and torque tables, steer-axle repairs, service brakes, and parking-brake adjustment.
  • Steering and hydraulics: Danfoss steering and priority valves, hydraulic pump checks, directional valve spool seals, and pressure testing.
  • Masts and cylinders: Telescopic, Hi-Lo, and Triple mast chain adjustment, carriage roller checks, and hoist and tilt cylinder repairs.
  • Electrical diagnosis: Controller and console checks, pedal calibration, fault-memory access, sensor tests, wiring diagrams, and connector layouts.

The manual suits forklift service technicians familiar with electrical testing, workshop measuring equipment, and the special tools called for in the engine procedures. The LPG section specifies trained personnel for gas-system maintenance and repair.

Diesel Injection and LPG Diagnosis

The Mercedes-Benz OM 601 extract covers timing-chain renewal, prechamber sealing-surface machining, cylinder-head work, injector testing, and injection-pump timing. It identifies procedures from Mercedes-Benz vehicle documentation that must be checked for applicability to the forklift.

The Volkswagen ADG section covers generator-unit removal, hydraulic tappet checks, oil pump inspection, and step-by-step toothed-belt installation. A separate procedure covers engines from number 003255 with the semi-automatic idler.

The ADG injection-pump section warns that loosening the pump-head bolts can shift the head and break the distributor plunger. The manual covers pump replacement and timing. Internal repair requires an injection-pump tester.

For the Volkswagen ADF, the LPG section includes step-by-step evaporator overhaul and mixer service. The Lambda control circuit diagram accompanies diagnosis of idle and running faults on trucks equipped with the optional catalyst system.

Drive Axles, Brakes, and ASM Limits

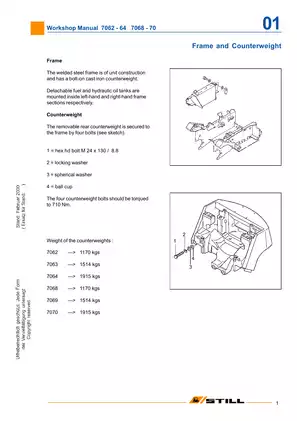

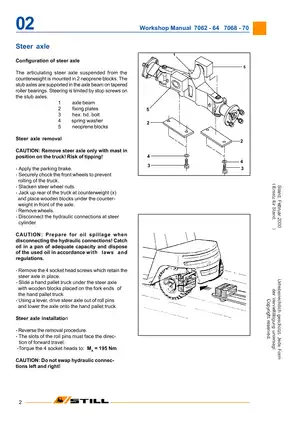

Carraro sectional drawings show the differential, epicyclic reductions, and wet multidisc brake pack. The service brake section also documents the alternative drum-brake arrangement. Steer-axle drawings accompany hub, kingpin, track rod, and steering cylinder work. DC motor and generator procedures include brush inspection, armature work, and seal replacement.

The ASM sections document the braking resistor, converter removal and installation, and the converter cooling circuit. The converter stays sealed and drive-motor coverage stops at removal. The synchronous generator’s rotor and starter ring gear are balanced together and replaced as an assembly.

Hydraulic Circuits and Mast Repair

Separate conventional and ASM hydraulic circuit diagrams show how the layouts differ. The conventional valve block uses a solenoid retarder valve. The ASM section documents its own heat exchanger layout.

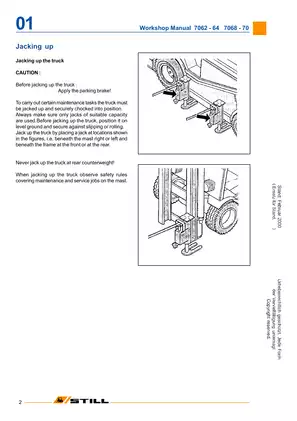

Mast coverage includes chain wear, fork carriage removal, roller positioning, cylinder seals, lowering valves, and hose-failure protection. For chassis and mast work, follow the manual’s jacking, support, and heavy-component handling precautions.

Controller Setup and Fault Tracing

The DC electrical section distinguishes Linde tachogenerator feedback from Carraro pulse-sensor feedback so technicians can select the matching circuit and test. Relay-base diagrams and MARK II and MODU 1 connector layouts support pin-level tracing.

The controller and console sections cover parameter transfer, pedal calibration, and fault readout. Battery maintenance, alternator checks, and current and coolant sensor tests are also documented. The System Diagnosis section identifies the test equipment used for electrical and drive checks.

Sample Lubrication and Test Specifications

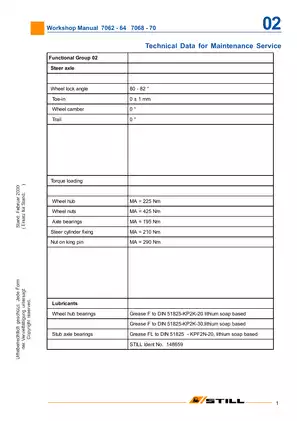

The Carraro reduction gear casings take approximately 1 liter of transmission fluid per side. The steer-axle wheel hub bearing table lists Grease F to DIN 51825-KP2K-20 among its lubricant specifications.

For electrical diagnosis, the 6B11 coolant thermistor is rated at 87 ± 5 ohms at 90 °C. The Volkswagen ADG oil-pressure check specifies a minimum of 2.0 bar at 2,000 rpm with engine oil at 80 °C.

Customer Reviews

Read what our customers say about this Still Forklift manual and share your own experience.

Checkout
STILL R70-20, R70-25, R70-30 (2000) Diesel & LPG Forklift Workshop Manual (P/N 164544) $26.59
