2000–2004 STILL R60-20–R60-50 & R60-22i–R60-30i Electric Forklift Workshop Manual (P/N 164518)
251 Pages • 1 Printable PDF (English) • Download
Still Models Covered & Key Technical Specifications
R60-20, R60-22, R60-25, R60-30, R60-35, R60-40, R60-45, R60-50, R60-22i, R60-25i, R60-30i**
Models & Model Codes:
R60-20 — DC: 6022
R60-22 — DC: 6042
R60-25 — DC: 6023, 6043 (Short Swing Axle), 6024 (Long Swing Axle), 6044 (Swing Axle)
R60-30 — DC: 6025, 6045
R60-35 — DC: 6026, 6046
R60-40 — DC: 6027, 6047
R60-45 — DC: 6028, 6048
R60-50 — DC: 6029, 6049
R60-22i — AC: 6036
R60-25i — AC: 6037 (Short Swing Axle), 6038 (Swing Axle)
R60-30i — AC: 6039
Model Years: 2000–2004 (2000, 2001, 2002, 2003, 2004)
-
Voltage: 80 V
-
Battery Capacity: 400–775 Ah (6036–6039, varies by type)
-
Drive Motor Current Limit (6036–6039): 412 A
-
Hydraulic Motor Current Limit (6036–6039): 330 A
-
Transmission Oil Capacity (6022-6025): 1.0 liters per side
-
Transmission Oil Capacity (6026-6028): 1.4 liters per side
-

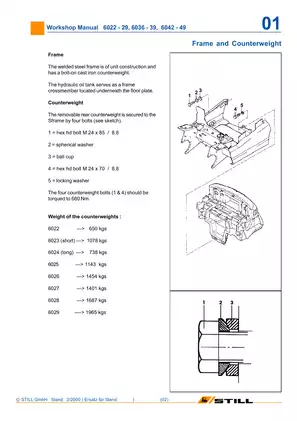

Counterweight Bolt Torque: 660 Nm
-
Wheel Hub Fastener Torque: 225 Nm (steer-axle hub nut), 310 Nm (drive-axle hub retaining bolt, types 6022–6028)
-
Drive Motor Types: STILL GF 186-24/1.3 (DC, 6022–6029), JULI AF 186-N1 (AC, 6036–6039)
-
Hydraulic Motor Types: STILL GP 144-14/4.3 (6022–6025), STILL GP 164-24/2.3 (6026–6029), JULI AP 124-K1 (6036–6039)
-
Drive Transmission: Epicyclic wheel reduction gears with bevel differential (DC), reduction gear with differential (AC)

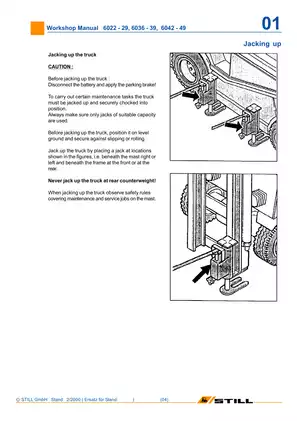

Still Manual Features & Selected Content Preview
The 2000–2004 STILL R60 electric forklift workshop manual, Ident-Nr. 164518 (English edition), covers R60-20 through R60-50 and the R60-22i, R60-25i, and R60-30i AC variants. The original workshop material includes later supplements that document differences for specific truck types.
PDF Search, Diagram Detail, and Page Count
Search and diagram detail: Text search works in parts of the PDF, including later AC sections. Many terms in the main workshop sections do not return matches, and some diagram labels are images. The PDF has no embedded bookmarks. Small schematic labels need zooming, and parts of the controller block-diagram legend remain pixelated.

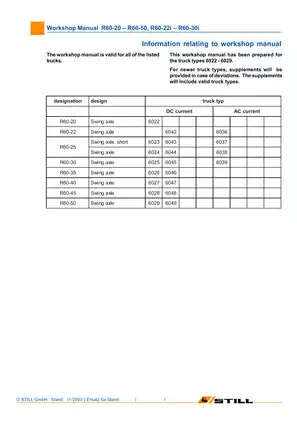

Supplied as one 251-page printable PDF in English. The total includes the cover, one model-applicability page, and 249 technical pages with the supplements incorporated.
Axle and Mast Service, Motor Repair, and Electrical Diagnosis
These are selected workshop topics. The manual also covers optional lighting and relay circuits, along with hydraulic tank oil changes and filter service.
- Steering and axles: Steer-axle removal, wheel-hub service, kingpin and track-rod work, steering-cylinder overhaul, and planetary reduction-gear disassembly.
- Service and parking brakes: Oil-bath multiple-disc brake removal and installation, brake-disc replacement, automatic-adjuster reset, and parking-brake adjustment.
- Electric motors: DC drive-motor armature removal and pump-motor disassembly, plus separate AC motor service, speed-sensor, and temperature-sensor sections.
- Hydraulic controls: Gear-pump replacement, directional-valve inspection, seal service, and pressure-regulator checks for mechanical-lever and proportional-joystick systems.
- Electrical diagnosis: Pedal and motor-sensor tests, controller replacement, console parameterization, FleetManager card-reader checks, and AC converter status diagnosis.
- Masts and carriage: Telescopic, Hi-Lo, and triple-mast service, lift-chain adjustment, support-roller clearance checks, hoist-cylinder resealing, and tilt-cylinder repair.
This manual suits forklift service technicians familiar with measuring adapters, insulation testers, and the lifting equipment needed for axle and mast repair.
Axles, Brakes, and Danfoss Steering
The power-axle chapter details the wheel reduction gears, bevel differential, and integrated wet brake. Brake illustrations distinguish the disc arrangements for types 6022–6025 and 6026–6028, with actuator-reset information for disc replacement.
Danfoss steering-unit removal and leak-seal service sit alongside load-sensing priority-valve cleaning and steer-cylinder reassembly. Steering-unit repair is limited to oil leaks. The manual specifies unit replacement for other failures.
Torque and lubricant tables and battery-compartment dimension drawings provide supporting reference data.
DC Armature Service and AC Motor Limits
DC procedures include removing the drive-motor armature with the axle in place, inspecting brushes, and reworking the commutator. The AC section covers drive-motor removal and shaft-seal service. Further AC drive-motor disassembly is excluded because the rotor cannot be removed.
Motor temperature and speed-sensor checks are paired with wiring and connector diagrams. The AC insulation-test section warns that improper preparation can damage the motor temperature sensors.
Hydraulic Valves and Mast Repair
Mechanical-lever and joystick valve blocks have different service procedures. Internal spool-seal replacement is excluded for the joystick tilt and auxiliary valves because disassembly disturbs factory-set spool travel.
Gear-pump troubleshooting links pump noise, foaming oil, and delayed movement to possible suction-side leaks. This helps technicians plan leak checks before replacing the pump. The mechanical valve instructions also flag sharp spool edges that can cut replacement seals.
Mast sections explain lift-stage sequencing, lowering valves, and hose-failure safety devices. Exploded and sectional views accompany roller selection, lubrication, carriage-stop adjustment, and cylinder seal work.
Controllers, Parameterization, and Circuit Diagrams
A9 documentation distinguishes R60S20 and R60S60 controllers, including parameter handling during replacement. The AC supplement describes the A43 battery computer, A44 central computer, and separate drive and pump converters. It explains converter LED indications and when a fault code appears on the console.
The proportional joystick’s 2A7 controller requires service-notebook parameterization. FleetManager coverage includes card-reader testing and retrofit requirements. Diagrams cover the controller block, CAN bus connections, converter pin assignments, standard and joystick hydraulic circuits, and mast oil flow.
Observe the manual’s precautions for battery isolation, converter discharge, and secure support of raised masts during service.
A Sample of Steering and Pedal-Sender Specifications
The steer-axle data lists a wheel-lock angle of 80–82° and toe-in of 0 ± 1 mm for checking steering geometry.
For the single-pedal accelerator sender 1B1, the voltage-check section lists 4.7–5.3 V with the pedal released and 8.5–9.5 V with it operated. The sender supply is approximately 10 V.
