Hyster H1.50-1.75XM & H2.00XMS Forklift Service Manual Set, 1998–2004 (P/N 1498509)
633 Pages • ZIP Download: 24 Printable PDFs (English)
Hyster Models Covered & Key Technical Specifications
Models: H1.50XM, H1.75XM, H2.00XMS, S25XM, S30XM, S35XM, S40XMS; H2.00-3.20XM (H40-65XM / H45-65XM) and S2.00-3.20XM (S40-65XM), selected component sections only
Models & Model Codes:
H1.50XM — D001, E001
H1.75XM — D001, E001
H2.00XMS — D001, E001
S25XM — C010, D010
S30XM — C010, D010
S35XM — C010, D010
S40XMS — C010, D010
H2.00-3.20XM (H40-65XM) — D177; engine, electrical, and mast sections
H2.00-3.20XM (H45-65XM) — H177; engine, electrical, LPG, mast, and steering sections
S2.00-3.20XM (S40-65XM) — D187; engine, electrical, LPG, and mast sections
Sub-models / Variants: H25XM (D001, E001), H30XM (D001, E001), H35XM (D001, E001), H40XMS (D001, E001), Pneumatic Tire (H-series), Cushion Tire (S-series), Mazda M4-1.5G (Far East specifications), Mazda M4-2.0G and Mazda M4-2.2G (gasoline/LPG engine sections), Mazda M4-2.5D (H-series diesel engine repair; diesel wiring for pneumatic trucks), MONOTROL Pedal
Transmission: Single-speed Powershift with MONOTROL Pedal or direction-control lever; H1.50-1.75XM (S/H25-35XM) and H2.00XMS (S/H40XMS)
Model Years: 1998–2004 (1998, 1999, 2000, 2001, 2002, 2003, 2004)
-
Engine Displacement: 1489 cc (Mazda M4-1.5G), 1998 cc (Mazda M4-2.0G), 2522 cc (Mazda M4-2.5D)
-
Wheel Stud Nut Torque: 127 N•m (94 lbf ft)
-
Wheel Nut Torque (Pneumatic): 204 to 225 N•m (150 to 166 lbf ft)
-
Wheel Nut Torque (Cushion): 128.5 N•m (94.8 lbf ft)
-
Back Plate to Axle Mount Torque: 102 N•m (75 lbf ft)
-
Axle Shaft Capscrew Torque: 66 N•m (49 lbf ft)
-
Cylinder Head Torque (M4-2.0G Cold): 81 to 88 N•m (60 to 65 lbf ft)
-
Brake Fluid Capacity: 0.3 liter (0.6 pt)
Hyster Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

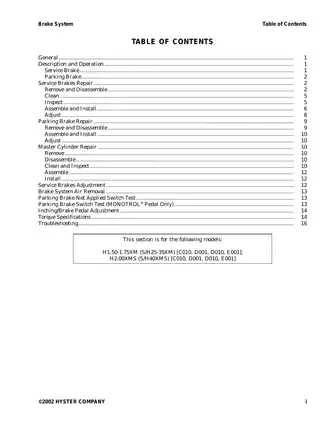

| Brake System — core XM/XMS families: H1.50-1.75XM (S/H25-35XM), H2.00XMS (S/H40XMS), C010/D001/D010/E001; 1800 SRM 540, P/N 897554 | 21 |
| Capacities and Specifications — core XM/XMS; 8000 SRM 546, P/N 897590 | 11 |
| Cooling System — internal-combustion-engine-powered units; 700 SRM 626, P/N 897934 | 9 |
| Diagrams — core XM/XMS; 8000 SRM 544, P/N 897558 | 29 |
| Drive Axle — core XM/XMS; 1400 SRM 542, P/N 897556 | 9 |
| Electrical System: Mazda M4-2.0G/M4-2.2G — core XM/XMS and S/H2.00-3.20XM; 2200 SRM 524, P/N 897509 | 23 |
| Electrical System: Mazda M4-2.5D — core XM/XMS family listing; 2200 SRM 550, P/N 897594 | 19 |
| Frame — core XM/XMS; 100 SRM 545, P/N 897559 | 23 |
| Gasoline Fuel System — core XM/XMS; 900 SRM 547, P/N 897591 | 19 |
| Hydraulic System and Gear Pump Assembly — core XM/XMS; 1900 SRM 539, P/N 897553 | 15 |
| Instrument Cluster — shared XM-family publication, including C010/D010, D001/E001, D187, and H177 applications; 2200 SRM 514, P/N 897495 | 23 |
| LPG Fuel System: Aisan Open-Loop — D010/E001 and D187/H177 applications; 900 SRM 925, P/N 1488917 | 30 |
| LPG Fuel System: Aisan Closed-Loop — D010/E001 and D187/H177 applications; 900 SRM 948, P/N 1495954 | 32 |
| Main Control Valve — core XM/XMS; 2000 SRM 541, P/N 897555 | 19 |
| Mast Description — shared publication including core XM/XMS and larger XM applications; 4000 SRM 521, P/N 897506 | 19 |
| Mast Repairs — shared publication including core XM/XMS and larger XM applications; 4000 SRM 522, P/N 897507 | 88 |
| Mazda Engine: M4-2.0G/M4-2.2G — core XM/XMS and S/H2.00-3.20XM family listings; 600 SRM 496, P/N 897477 | 35 |
| Mazda Engine: M4-2.5D — H25-35XM/H40XMS family listing; 600 SRM 538, P/N 897551 | 42 |
| Metric and Inch (SAE) Fasteners — all models; 8000 SRM 231, P/N 910442 | 19 |
| Periodic Maintenance — S/H25-35XM, S/H40XMS [D010, E001]; 8000 SRM 959, P/N 1498509 | 61 |
| Single-Speed Powershift Transmission — core XM/XMS; 1300 SRM 543, P/N 897557 | 40 |
| Steering Axle — core XM/XMS; 1600 SRM 532, P/N 897545 | 11 |
| Steering Housing and Control Unit — shared publication including D010, E001, and H177 applications; 1600 SRM 720, P/N 1459370 | 17 |
| Tilt Cylinders — shared publication with XM/XMS-specific procedures; 2100 SRM 103, P/N 910102 | 19 |
The frame section supplies engine-removal procedures used alongside internal-engine repair, while the diagram and specification books support fault tracing and adjustment. Matching the section’s design code, engine, and fuel system helps distinguish the applicable procedures before component work begins.
Coverage limits: The maintenance publication specifically covers D010/E001. Larger XM models appear in selected shared component sections; their engine-removal instructions refer to Frame 100 SRM 505, which is not included. The M4-1.5G appears in specifications and gasoline-fuel adjustments; the internal-engine repair publications cover the M4-2.0G, M4-2.2G, and M4-2.5D.
PDF Files, Search, and Navigation
Finding text and circuit details: The service text is searchable. Many labels inside wiring diagrams are image-based and cannot be found with text search. Embedded bookmarks provide section navigation in the service publications; the Diagrams PDF has only document-level bookmarks. Small wiring and connector labels require zooming.
The English ZIP download contains 24 printable PDFs totaling 633 pages, including 24 section covers, 32 contents pages, 13 notes pages, and 23 blank pages already included in that total.
Engine, Driveline, and Lift-System Service
These selected contents outline the main repair areas rather than reproduce the complete contents lists. Other topics include operator-restraint service and pneumatic tire removal and installation.
- Mazda engine repair: Step-by-step cylinder-head, valve-gear, crankshaft, piston, connecting-rod, and oil-pump procedures, with timing work, compression checks, wear limits, and troubleshooting.
- Powershift transmission: Transmission-pump and clutch repair, differential and ring-and-pinion setup, control-valve service, stall testing, pressure checks, and inching/brake adjustment.
- Hydraulics and steering: Single- and dual-gearset pumps, pump drive shafts, steering flow dividers, main control valves, relief checks, pump flow testing, and steering-component repair.

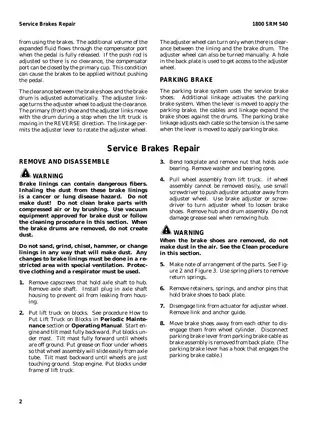

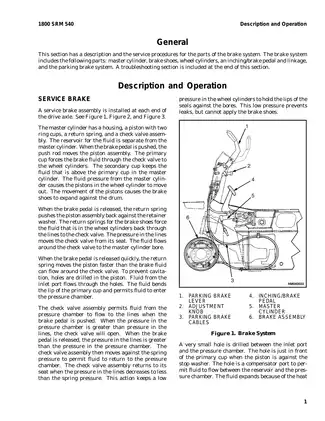

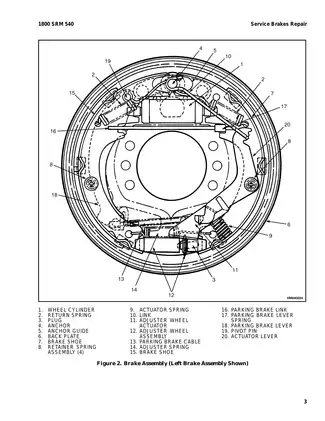

- Brake and axle service: Service-brake and wheel-cylinder repair, master-cylinder overhaul, parking-brake linkage, bleeding, wheel/hub service, and symptom-based fault isolation.
- Mast and lift assemblies: Two-stage LFL/FFL and three-stage FFL repair, carriage service, lift cylinders, header hoses, lift chains, roller adjustments, and lift/tilt leak checks.
- Fuel and electrical diagnosis: Gasoline carburetor and governor service, Aisan LPG systems, ignition and charging tests, starter/alternator repair, diesel cold-start aids, and instrument clusters.
- Maintenance and reference data: Inspection schedules, lubrication procedures, capacities, component-specific torque tables, electrical test values, pressure specifications, and dedicated wiring and hydraulic schematics.
The repair content is suited to trained, authorized lift-truck service personnel with rated lifting/support equipment and the hydraulic, electrical, or fuel-system test equipment required for the work.
Engine and Fuel-System Repair Depth
The engine books cover cylinder heads, camshafts and valve gear, crankshafts and main bearings, pistons and connecting rods, lubrication components, cooling components, and flywheels. Gasoline/LPG timing-belt work and diesel timing-gear procedures are treated separately.
Diesel fuel equipment: M4-2.5D coverage includes injection-pump removal, installation, and timing checks, plus injector disassembly, spray-pattern testing, opening-pressure checks, and shim adjustment. Internal injection-pump repair is excluded and requires a specialist repair service.
Aisan configurations: Open-loop SRM 925 and closed-loop SRM 948 have separate procedures. Closed-loop coverage adds the oxygen sensor, makeup fuel injector, vacuum switches, feedback checks, and check-engine-light diagnosis. Open-loop regulator-height adjustment and housing air-tightness testing call for Hyster special tool kit P/N 1490494.
The gasoline section includes carburetor overhaul and governor checks and adjustments. The gasoline fuel pump and governor are replacement items rather than internally overhauled assemblies.
Transmission, Hydraulic, and Mast Variants
Earlier- and later-model differences appear in the transmission control valves, hydraulic circuits, pump drives, and related schematics. Later clutch assemblies use needle bearings where earlier assemblies use spacers and thrust washers. The torque converter is a non-repairable assembly.
Pneumatic- and cushion-tire versions have separate wheel, hub, steering, capacity, and torque information where their hardware differs. Hydraulic coverage distinguishes the single- and dual-gearset pumps and includes flow testing alongside valve and relief-pressure diagnosis.
Mast coverage distinguishes standard, hang-on sideshift, and integral sideshift carriages. Header-hose measurement drawings and adjustment procedures support hose selection and routing for the applicable mast arrangement. The description book also explains four-stage mast operation; the mast-repair procedures address the two-stage LFL/FFL and three-stage FFL assemblies.
Schematics and Component Checks
The Diagrams PDF contains 14 named diagrams, schematics, and arrangements. Examples include earlier/later Mazda M4-2.0G engine wiring, pneumatic-truck M4-2.5D diesel wiring, Instrument Cluster Wiring Schematic, MONOTROL Electrical Schematic, earlier/later Hydraulic System Schematics, and earlier/later Transmission Hydraulic Schematics.
Component section views, exploded illustrations, troubleshooting tables, and test specifications support internal inspection as well as circuit diagnosis. Reference data includes truck weights, torque-converter stall speeds, mast speeds, fastener identification, tightening specifications, clearances, and wear limits.
Assembly Cautions and Support Requirements
The transmission section identifies misalignment during engine/transmission separation as a cause of torque-converter or transmission damage. Tilt-cylinder instructions address seal-lip orientation and the risk of cutting the retainer O-ring on the cylinder threads.
Factory precautions cover truck blocking, mast restraint, hydraulic-pressure release, electrical and fuel isolation, and brake-lining dust. Removing the mast, drive axle, counterweight, engine, or transmission changes the truck’s center of gravity and requires appropriately rated lifting and support equipment.
Selected Diesel Injector Test Data
For M4-2.5D injector testing, the manual specifies an opening pressure of 13.4 to 13.9 MPa with diesel test fuel at approximately 20°C.
Its shim-adjustment data gives an approximate 0.49 MPa increase in opening pressure for each 0.05 mm increase in shim thickness. These specifications accompany the specialist injector-test procedures.
