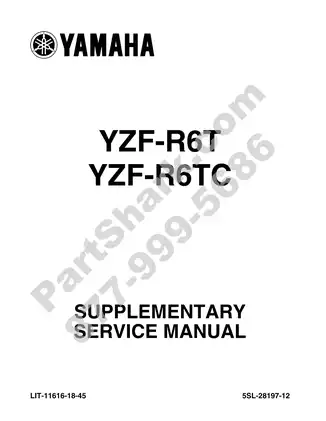

Yamaha YZF-R6T/YZF-R6TC 2004 Service Manual Set (P/N LIT-11616-16-45)

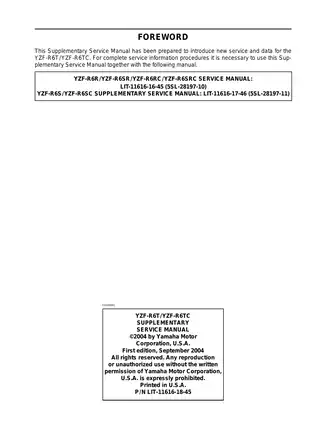

Yamaha specifies using the T/TC supplement together with the S/SC supplement and the base service manual. All three publications are included, allowing the updated chassis and electrical procedures to be used alongside the underlying engine repair and maintenance instructions.

PDF Search, Bookmarks and Wiring Detail

Search and diagram navigation: Service text is searchable, and embedded section bookmarks cover all three publications. Many small wiring-diagram labels are not searchable and require zooming for comfortable reading. The opening “Back to Index” bookmark targets a separate index PDF that is not included.

One printable, English-language PDF contains 538 pages. The publication totals above already include three front covers, three back covers and two blank pages.

Engine Overhaul, Fuel-Injection Diagnosis and Chassis Service

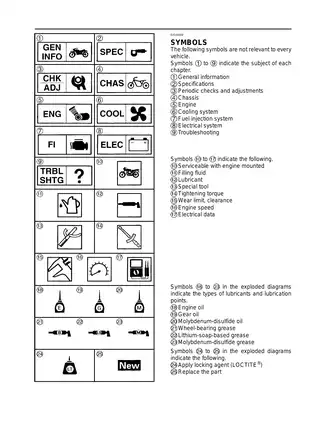

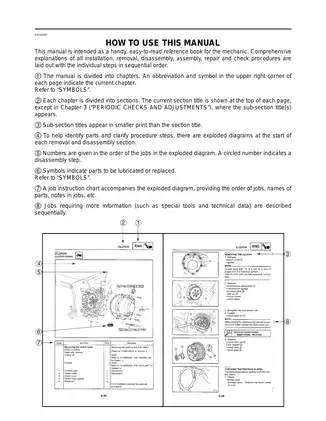

The following selected service topics outline the workshop coverage. Additional subjects include instrument-display settings and headlight-beam adjustment.

• Engine repair: Engine removal, camshaft timing, cylinder-head and valve service, piston inspection, and crankshaft-bearing clearance checks.

• Clutch and transmission: Clutch disassembly, friction-plate inspection, gearbox teardown, shift-fork and shift-drum checks, and reassembly.

• Maintenance and adjustment: Emission-control schedules, valve-clearance adjustment, throttle-body synchronization, compression testing, and engine oil-pressure measurement.

• Fuel injection: Fault-code and fail-safe tables, diagnostic-mode sensor and actuator checks, injector inspection, fuel-pressure testing, and throttle-position sensor adjustment.

• Brakes and suspension: Hydraulic brake bleeding, master-cylinder and caliper repair, front-fork overhaul, steering-head service, and swingarm and drive-chain inspection.

• Cooling system: Radiator and oil-cooler removal, thermostat testing, water-pump disassembly and seal replacement, and coolant service.

• Electrical diagnosis: Ignition, starter, charging, lighting and fuel-pump circuit tests, plus model-specific wiring diagrams and cable-routing drawings.

Written primarily for Yamaha dealers and qualified mechanics, these manuals assume mechanical knowledge and access to the appropriate service tools.

Internal Engine and Drivetrain Work

Step-by-step procedures extend from engine removal through crankcase separation and internal inspection. Bearing-selection guidance uses crankshaft and connecting-rod markings, with Plastigauge checks for oil clearance.

Clutch drawings distinguish friction-plate color codes and plate thicknesses. Transmission illustrations identify the main axle, drive axle and shift-fork positions, with checks for gear-dog wear, shaft runout and correct engagement.

Fuel-Injection Fault Finding

The diagnostic charts connect displayed fault codes to probable wiring, sensor or actuator faults, test procedures and reinstatement methods. This gives a workshop a structured way to investigate the affected circuit before selecting replacement components.

Diagnostic-mode tables describe sensor readings and actuator operation, including the injectors, ignition coils and air-induction solenoid. The throttle-body section covers inspection and cleaning but expressly prohibits disassembling the throttle bodies.

T/TC Chassis and Electrical Updates

The T/TC supplement supplies revised front-brake, fork, drive-chain and twin-radiator-fan information. Its cooling circuit diagram and troubleshooting section address the left and right fan motors, helping distinguish this arrangement from the earlier single-fan system.

Fork assembly notes address the risk of damaging the new oil-seal lip during installation and identify dedicated tools, including the YM-01441 spring compressor and YM-01442 seal driver.

The brake-caliper sections warn that solvents can swell and distort piston seals. Review the factory brake and suspension safety precautions and consult a qualified technician before undertaking work outside your experience.

Fluid-Path Drawings and Diagnostic References

The Engine Oil Lubrication Chart and Cooling System Diagrams show fluid paths through the assemblies. Fuel-injection troubleshooting charts, front-fork exploded views, and the T/TC electric-starting and cooling circuit diagrams support fault tracing and component identification.

Cable-routing drawings document harness, hose and control-cable placement, including California-specific canister connections. These references help identify routing that could interfere with adjacent components after reassembly.

Valve-Clearance and Sensor-Torque Examples

For valve-clearance inspection, the base manual specifies cold clearances of 0.13–0.20 mm for the intake valves and 0.23–0.30 mm for the exhaust valves. The adjustment section includes valve-pad selection tables.

The T/TC supplement’s engine torque table lists the cylinder identification sensor bolt at 7.5 Nm, with Yamaha Bond No.1215 specified in the remarks.
