Husqvarna Sapphire 830/835/850/855/870/875 Sewing Machine Manual Set, 2009–2010 (P/N 104 72 79-26)
92 Pages • ZIP Download: 2 Printable PDFs (English)
Husqvarna Models Covered & Key Technical Specifications
Models: Sapphire 830, Sapphire 835, Sapphire 850, Sapphire 855, Sapphire 870, Sapphire 875
Sub-models / Variants: Sewing machine with Exclusive Sensor System
Model Years: 2009–2010
Publication Numbers: 104 23 27-96 (Parts List), 104 72 79-26 (Service Manual)
-
Needle size standard: 90 universal
-
Hook gap tolerance: 0.15 mm maximum
-
Needle bar height gauge: 28.95 mm
-
Presser foot height (max): Approximately 13 mm above needle plate
-
Lower thread tension resistance: 12–20 g
-
Feed dog height setting: 0.9–1.1 mm above needle plate
-
Needle threader stop distance: 1.5 mm
-
ESD protection: Wrist band 412 23 02-01 required
Husqvarna Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Service Manual — P/N 104 72 79-26, October 28, 2009. Husqvarna Viking Sapphire 830, 835, 850, 855, 870, and 875 sewing machines with Exclusive Sensor System. | 73 |

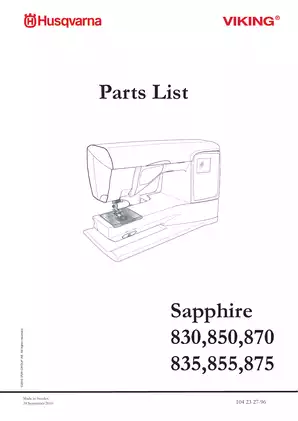

| Parts List — P/N 104 23 27-96, September 24, 2010. Sapphire 830, 835, 850, 855, 870, and 875. | 19 |
The service manual’s illustrations locate mechanisms and adjustment points. The separate parts list provides the detailed exploded views and part references used alongside the service procedures.
Text Search, Drawing Detail, and File Contents
Search and navigation: Technical text and parts references are searchable in both PDFs. Neither file has embedded PDF bookmarks. Zoom is useful for the smallest labels in the electrical connection drawings and dense parts plates.

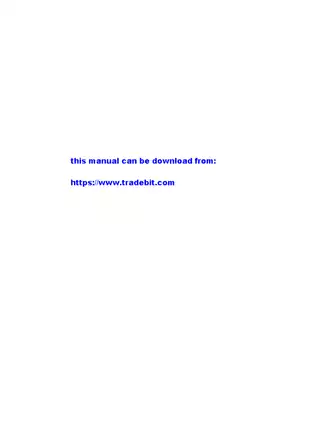

The ZIP download contains two printable English PDFs totaling 92 pages, including four added introductory pages—two in each file.
Sapphire Calibration, Assembly Repair, and Parts Identification
These selected coverage highlights are not a complete contents list. Other topics include thread take-up spring adjustment and bobbin-winding disengagement.
-
Mechanical settings: Drive and motor belt tension, hook gear play and timing, needle-to-hook clearance, feed-dog alignment and height, and stitch-balance checks.
-
Sewing-head repair: Step-by-step removal, rebuilding, and installation procedures, including needle- and presser-bar bushings, needle step-motor replacement, and presser-bar step-motor replacement.
-
Thread tension and cutting: Separate mechanical and electronic tension procedures, tension-disc and step-motor replacement, hook-cover removal, and cutter-knife and thread-cutting-unit service.
-
Service program: Step-motor calibration, display and sensor checks, controlled stitch patterns, machine/software information, and keyboard/LED testing across five service menus.
-
Drive and electrical assemblies: Removal and installation procedures for the arm and lower shafts, main PC board, power supply, covers, and base plate.
-

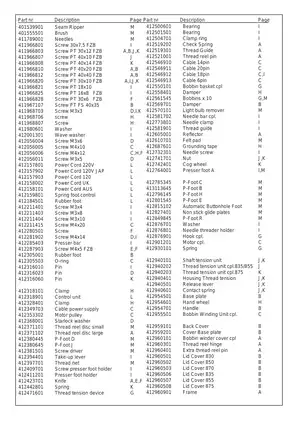

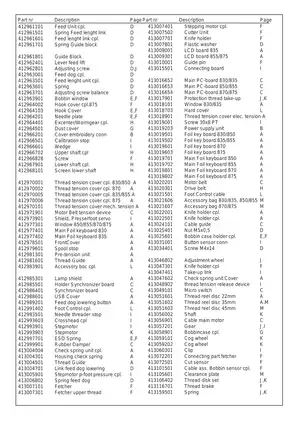

Illustrated parts reference: Thirteen exploded plates A–M and an index containing more than 200 part numbers, including model-specific electronics, tension assemblies, and accessories.
The service instructions are intended for service-workshop personnel and dealer staff who perform service work, assuming thorough knowledge of precision appliances and access to service tools.
Factory Settings and Post-Repair Calibration
The settings section provides check and adjustment procedures for 28 items and identifies related settings that must be revisited after major assembly work. These cross-references help technicians plan the checks required after replacing a hook, feed assembly, or sewing head.
Hook and feed assemblies: Hook replacement leads back to gear play, needle clearance, hook height, needle-bar height, and timing checks. Feed-unit or lower-shaft repair also requires alignment, feed-dog height, hook synchronization, and basic and fine stitch-balance settings.
Sewing-head rebuilding: Follow-up checks cover the needle, hook, threader, presser-foot parallelism and height, pivot position, and needle center position.
Setting gauges: Named factory tools include hook-timing spacer 63-102600-18/000, feeler gauge 61-111600-02/000, and needle-height gauge 412 35 29-02.
The tool list also identifies feed-dog lift gauge 413 12 73-01, distance gauge 412 38 85-01, ESD wrist strap 412 23 02-01, and separate PAL and North American service DVDs.
Service Program and Model-Specific Electronics
The service program provides functional checks and calibration commands rather than a catalog of diagnostic fault codes.
Step motors and sensors: Menu 1 covers the needle, feed, and presser-bar step motors. Menu 2 checks the display, synchronizer, bobbin-winding, presser-foot, buttonhole, and foot-control sensors, with bobbin-thread, thread-cut sensor, and cutter-sequence tests for the 870/875 group.
Test patterns and machine information: Menus 3 and 4 provide controlled stitch patterns, stitch-balance checks, buttonhole-column adjustment, operating-time data, and software-version information.
After PC-board replacement: The 830/835/850/855 mechanical-tension group requires presser-foot height and sewing-head pivot settings. The 870/875 electronic-tension group requires pivot adjustment and upper-thread-tension calibration. Software older than 9863_20081118 provides three tension-setting points instead of four.
Electrical Connections and Exploded Views
Electrical coverage includes power-supply pin test specifications and two pages titled “Circuit board - Circuit diagram,” one for each tension-system group. They show connector and cable locations for the motor, sewing head, step motors, sensors, bobbin winder, power supply, and synchronizer. These are connection/location drawings, not component-level electronic schematics.
Housing and drive: Exploded plates show the front housing and controls, main electronics and drive motor, feeding unit, and upper and lower shaft assemblies.
Sewing and tension assemblies: Separate plates detail the sewing head, needle and presser bars, and the 870/875 hook-cover and cutter assembly. Model-specific listings distinguish main PC boards, LCD and keyboard parts, tension units, hook covers, and accessory packs.
Cable, Fastener, and Electronics Cautions
Forcing the front cover can damage the foil-keyboard cables. The feed-step-motor retaining screw is left-hand threaded, so treating it as a standard fastener risks damaging the screw or threads.
Disconnect the machine from power before removing the power supply or circuit board, and use the specified ESD controls whenever loose PC boards are handled.
Power-Supply Test Values: A Preview
The power-supply check specifies 6.5–7.5 V DC at contact 3 and approximately 3.3 V DC at contact 4, with contacts 5–6 identified as ground. A numbered connector detail accompanies the test data, linking the voltage checks to the correct contact positions.
