2008 Husqvarna Viking Sapphire 830/850/870 Quilt Sewing Machine User's Guide (P/N 413 11 44 - 26D)

The Husqvarna Viking User's Guide covers the 2007–2008 Sapphire 830, 850, and 870 Quilt sewing machines. Back-cover code 413 11 44 - 26D identifies this English-language guide to machine operation, routine maintenance, and stitch programming.

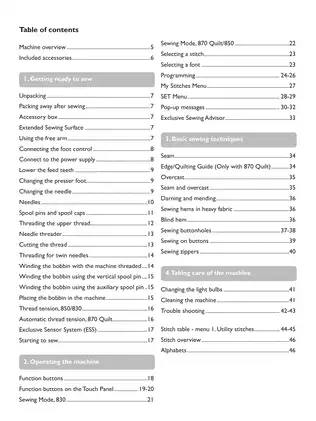

Text search and navigation: The PDF has searchable text and a printed table of contents. Embedded PDF bookmarks are not included.

• Threading and setup: Upper-thread and twin-needle threading, bobbin winding and insertion, needle and presser-foot changes, and built-in needle threader operation.

• Tension and fabric feed: Manual and automatic thread tension, the Exclusive Sensor System, Sensor Foot Pressure, and Sensor Foot Lift settings.

• Stitch programming: GraphicDisplay and Touch Panel controls, font selection, custom stitch sequences, My Stitches storage, and SET Menu options.

• Buttonholes and fabric repair: One-Step Sensor Buttonhole Foot use, manual and corded buttonholes, darning and mending, hems, and zipper insertion.

• Free-motion sewing: Free Motion Floating and Free Motion Spring Action modes, with pivot-height settings and presser-foot requirements.

• Maintenance and troubleshooting: Light bulb replacement, stitch plate removal and refitting, bobbin-area cleaning, symptom checklists, and operating pop-up messages.

This guide is suited to owners handling sewing setup and routine upkeep, with illustrated threading instructions and basic sewing examples.

Machine Operation and Setup

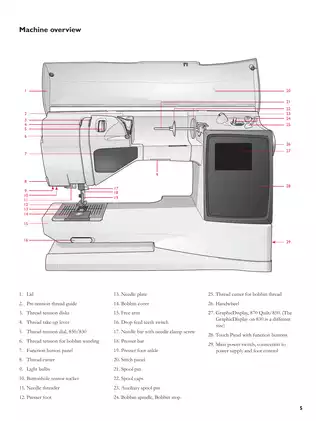

The Machine Overview identifies external controls and connections. The Exclusive Sewing Advisor links fabric type and sewing technique to stitch settings and presser-foot recommendations.

Thread tension: The 830 and 850 use a manual tension dial; the 870 Quilt sets tension automatically, with adjustments through the SET Menu. The illustrations of correct and incorrect tension provide a visual reference for checking an uneven seam before arranging a repair.

Model-specific controls: Selective Thread Cutter, Start/Stop, Stitch Re-start, and end-to-end mirroring are 870 Quilt features. Separate Sewing Mode illustrations explain the 830 and 850/870 Quilt displays.

The free-motion sections distinguish the included Embroidery/Darning Foot R in Floating mode from optional Spring Action feet. Sensor foot settings cover pressure, pivot height, and automatic lifting when sewing stops with the needle down.

Programming and Stitch References

My Stitches provides 10 memories on the 830, 15 on the 850, and 20 on the 870 Quilt. The programming section explains editing stitches and letters, inserting FIX and STOP commands, and adding Selective Thread Cut on the 870 Quilt.

It also explains which changes to a stitch program are lost when returning from Sewing Mode to Programming Mode.

The Utility Stitches table pairs stitch numbers, presser feet, and applications across the three models. The Stitch Overview and Alphabets pages show model-specific patterns and the availability of Block, Brush Line, and Script fonts.

Owner Maintenance and Troubleshooting

Cleaning instructions cover the feed teeth, bobbin case, and bobbin case holder, followed by stitch plate refitting. Bulb replacement uses the included light bulb remover, and routine oiling is not required.

The troubleshooting checklists address skipped stitches, fabric puckering, thread breakage, uneven bobbin winding, feeding problems, and a machine that will not sew. Separate pop-up explanations cover main motor overload and, on the 870 Quilt, low bobbin thread and cleaning reminders.

Needle and plate protection: The twin-needle and Stitch Width Safety notes explain the risk of needle breakage, or damage to the presser foot and needle plate, from incompatible stitch widths.

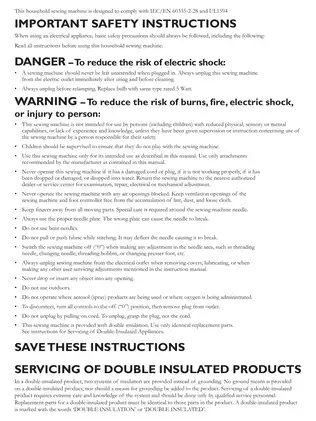

Always power down and unplug the machine before performing any maintenance or clearing thread jams to prevent accidental needle engagement.

Repair scope: This is an operating and owner-care guide. It does not cover internal mechanical or electrical repair, sensor calibration, or wiring diagrams; unresolved sewing faults are referred to an authorized Husqvarna Viking dealer.

English PDF and Included Pages

The printable, English-language 48-page PDF contains 42 pages of machine instructions and stitch/alphabet references on pages 5–46. This total already includes six pages of front and back matter: the front cover, safety instructions, section guide, table of contents, legal/disposal information, and back cover.
