2002-2010 Saturn VUE Service Manual

Access diagnostic information, removal sequences, and service data for the 2002-2010 Saturn VUE. Includes diagrams and part numbers. J35749

4.5starstarstarstarstar_half(2)
visibility Preview Available
Saturn 2002-2010 Saturn VUE Service Manual manual page preview - page 1 of

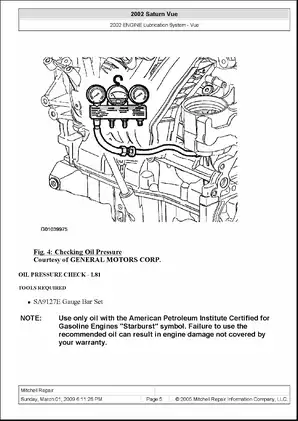

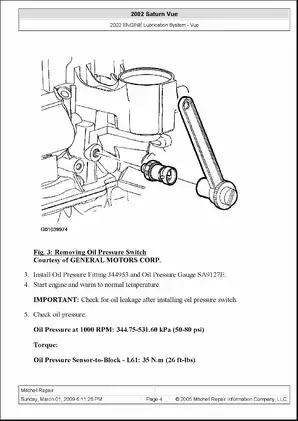

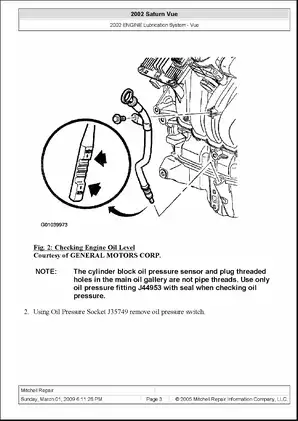

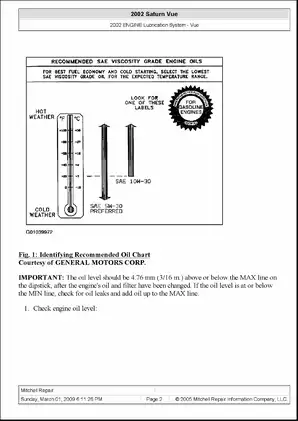

Sample pages from the 2002-2010 Saturn VUE Service Manual manual

Saturn 2002-2010 Saturn VUE Service Manual manual preview page 1 - thumbnail
Saturn 2002-2010 Saturn VUE Service Manual manual preview page 2 - thumbnail
Saturn 2002-2010 Saturn VUE Service Manual manual preview page 3 - thumbnail
Saturn 2002-2010 Saturn VUE Service Manual manual preview page 4 - thumbnail
Saturn 2002-2010 Saturn VUE Service Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$18.29 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Saturn Models Covered & Key Technical Specifications

Models: Saturn VUE
Sub-models / Variants: L61, L81
Build Years: 2002–2010
Technical Data:

  • Oil pressure at 1000 RPM: 344.75–531.60 kPa (50–80 psi)
  • Oil pressure at idle (standard): 90 kPa (13.0 psi) minimum
  • Oil pressure at 2000 RPM (standard): 250 kPa (36.0 psi) minimum
  • Oil pressure (cold up to 2500 RPM): 560 kPa (80 psi) maximum
  • Oil capacity (L61): 4.7 L (5 qt)
  • Oil capacity (L81): 4.7 L (5 qt)
  • Oil pan drain plug torque: 25 N.m (18 ft-lbs)
  • Oil filter cap torque: 15 N.m (11 ft-lbs)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
28507 / Joseph Henry
File Size:
629.45 MB
File Type:
ZIP
Language:
English
Printable:
Yes
Category:
SUV
Last updated / verified
Feb 20, 2025

Saturn Manual Features & Content Preview

Technical Scope of the 2002–2010 Saturn VUE Service Manual

  • Covers 2002–2010 Saturn VUE SUV models equipped with L61 and L81 engine variants, detailing lubrication system maintenance and major component replacement
  • Official General Motors Corporation documentation, derived from the 2002 Saturn VUE factory technical library
  • Contains 91 pages of exploded-view diagrams, torque specifications, and system-specific diagnostic flow charts
  • Accessible from your device as soon as the order is placed
  • OCR text layer lets you jump to a torque spec by keyword
  • Suitable for printing individual sections for shop-floor use
  • Stored against your account so you can retrieve it after a hard-drive loss
  • This reference documents oil pump, oil cooler, oil pan, and sensor replacement procedures specific to the Saturn VUE engine family

Engine Lubrication and Service Diagnostics

The 2002–2010 Saturn VUE service manual provides comprehensive coverage for maintaining the L61 and L81 engine lubrication systems. This document serves as the technical record for oil pressure diagnostics, oil filter housing maintenance, and front cover assembly tasks. Detailed sections explain the chemical properties of engine oil, the role of additives, and viscosity requirements for the Saturn VUE. Owners gain insight into the function of oil pressure switches, oil pump drive mechanisms, and proper oil filter sealing. The text clarifies oil level checking procedures, including the use of what an OEM service publication covers to facilitate maintenance operations.

Specification Highlights and Component Data

Technical specifications are provided throughout the document to support accurate reassembly and component integrity. Engine oil capacity is documented at 4.7 liters for both L61 and L81 configurations. The oil pan drain plug torque is specified at 25 N.m (18 ft-lbs) in the lubrication data table. Front cover-to-block bolt torque is documented at 25 N.m (18 ft-lbs) for the L61 engine series. Reference values for idle and high-RPM oil pressure are mapped to confirm system performance thresholds. An official 91-page General Motors Corporation workshop manual covering the 2002–2010 Saturn VUE, documenting engine lubrication, oil cooler, and sensor specifications for L61 and L81 engine builds.

Document Reference: Courtesy of GENERAL MOTORS CORP.

Manual FAQ, Purchase & Download Details

What content information regarding the edition or revision status is included in this service manual for the Saturn VUE? keyboard_arrow_down

Document is titled as the 2002-2010 Service Manual for the Saturn VUE and focuses on the lubrication system and engine data. It contains specific publication references and figures that outline the lubrication system configurations for the L61 and L81 engine variants.

Is there information regarding the oil pressure sensor placement or related component locations? keyboard_arrow_down

Manual includes multiple exploded view diagrams and illustrations that show the oil pressure sensor, filter housing, and internal engine oil gallery routing.

Are there tables within the document that show the recommended viscosity grades or technical pressure thresholds for the engine? keyboard_arrow_down

Document contains specification charts detailing the temperature-based viscosity recommendations for engine oil. It also includes sections that reference pressure ranges and target operating thresholds for the lubrication system.

Which component breakdown diagrams are featured in the engine lubrication sections? keyboard_arrow_down

Manual contains exploded view diagrams for the oil filter cap assemblies, the oil pump routing, and the oil pressure sensor installations for both L61 and L81 engines.

Can this manual be used to reference fluid specification data or oil-related service requirements? keyboard_arrow_down

Document includes technical sections detailing recommended oil viscosity grades based on temperature ranges and API performance standards. It also contains guidance on oil filter part number identification and specific torque values for engine-related components. These tables and descriptions serve as a reference for the lubrication system specifications.
