Chevrolet Captiva Sport / Saturn VUE 2007–2010 Repair Manual Set (P/N 15863775 B)

5,115 Pages • ZIP Download: 73 Printable PDFs • 207.91 MB

4.6starstarstarstarstar_half(5)
$18.65 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Chevrolet Models Covered & Key Technical Specifications

Models: Captiva Sport / Saturn VUE

Sub-models / Variants: FWD/AWD; selected VUE XE, Red Line and Hybrid sections

Model Years: 2007–2010 (2007, 2008, 2009, 2010)


  • Engine displacement: 2.4L (LE5/LAT), 3.5L (LZ4), 3.6L (LY7/LCS)

  • Engine configuration: Inline-4 (2.4L), V6 (3.5L, 3.6L)

  • Automatic transmission: Hydra-Matic 4T45-E (MN5; shift-table variants EWJ — LE5, DAJ — LAT, EPJ — LZ4)

  • Six-speed transmission files: LZ4/LY7 on-vehicle replacement sections in the folder labeled “6T70–6T75”; the included specification sheet identifies 6T40/6T45 FWD units (RPO MH8, MH7)

  • VIN engine identifiers, 8th character: N — LZ4; 7 — LY7

  • Tightening torque: Component-specific specifications

  • Wheel fitment: 18 inch where equipped (P235/55R18)

  • Nominal electrical voltage: 12 V

Chevrolet Manual Features & Selected Content Preview

Publication Pages
Captiva Sport / Saturn VUE GM service sections, supplied as 69 PDFs 4,270
Saturn VUE Owner Manual, file labeled 2007–2008 — P/N 15863775 B, second printing 412
Saturn VUE Owner Manual, file labeled 2009–2010 — P/N 25812262 B, second printing 386

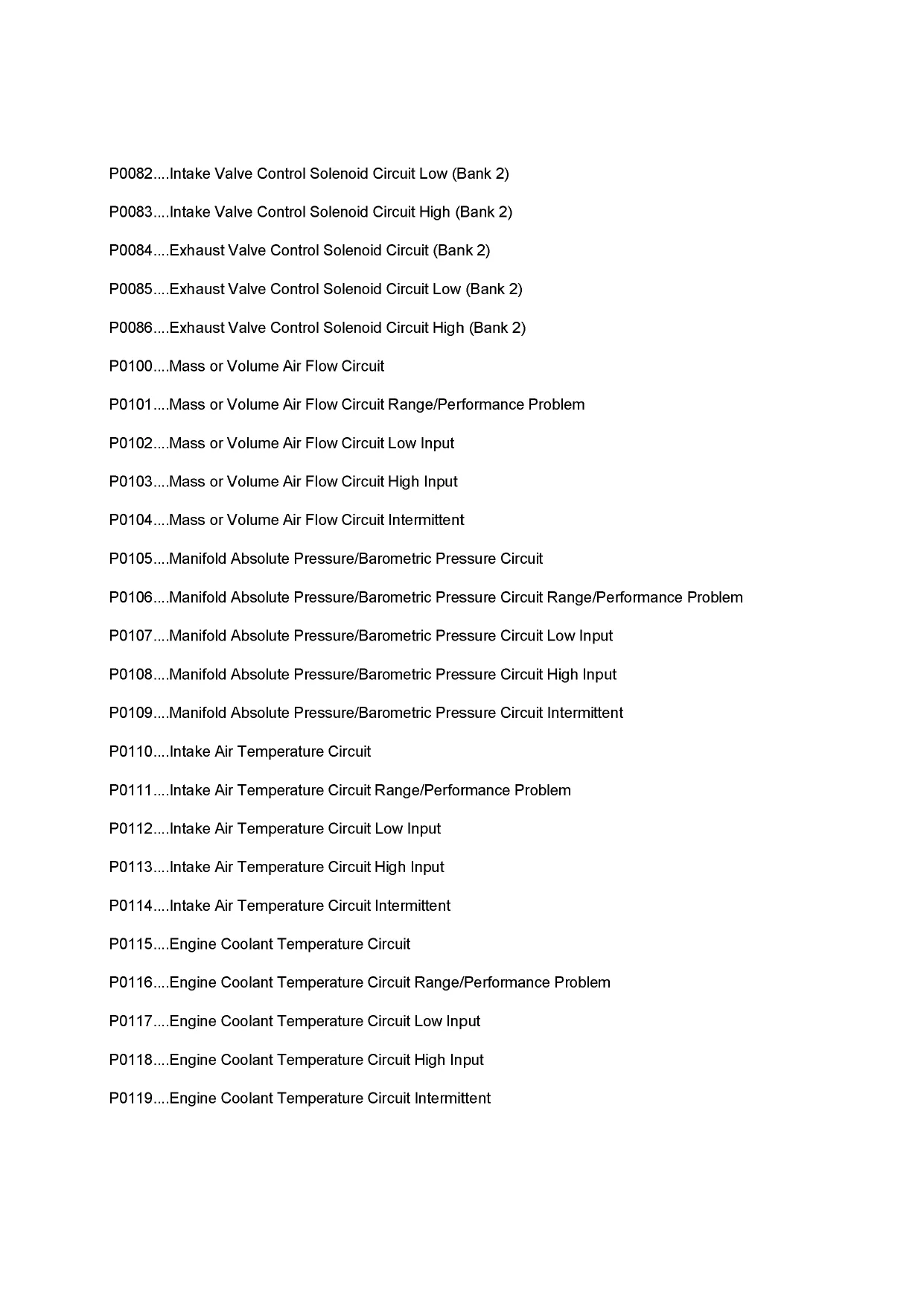

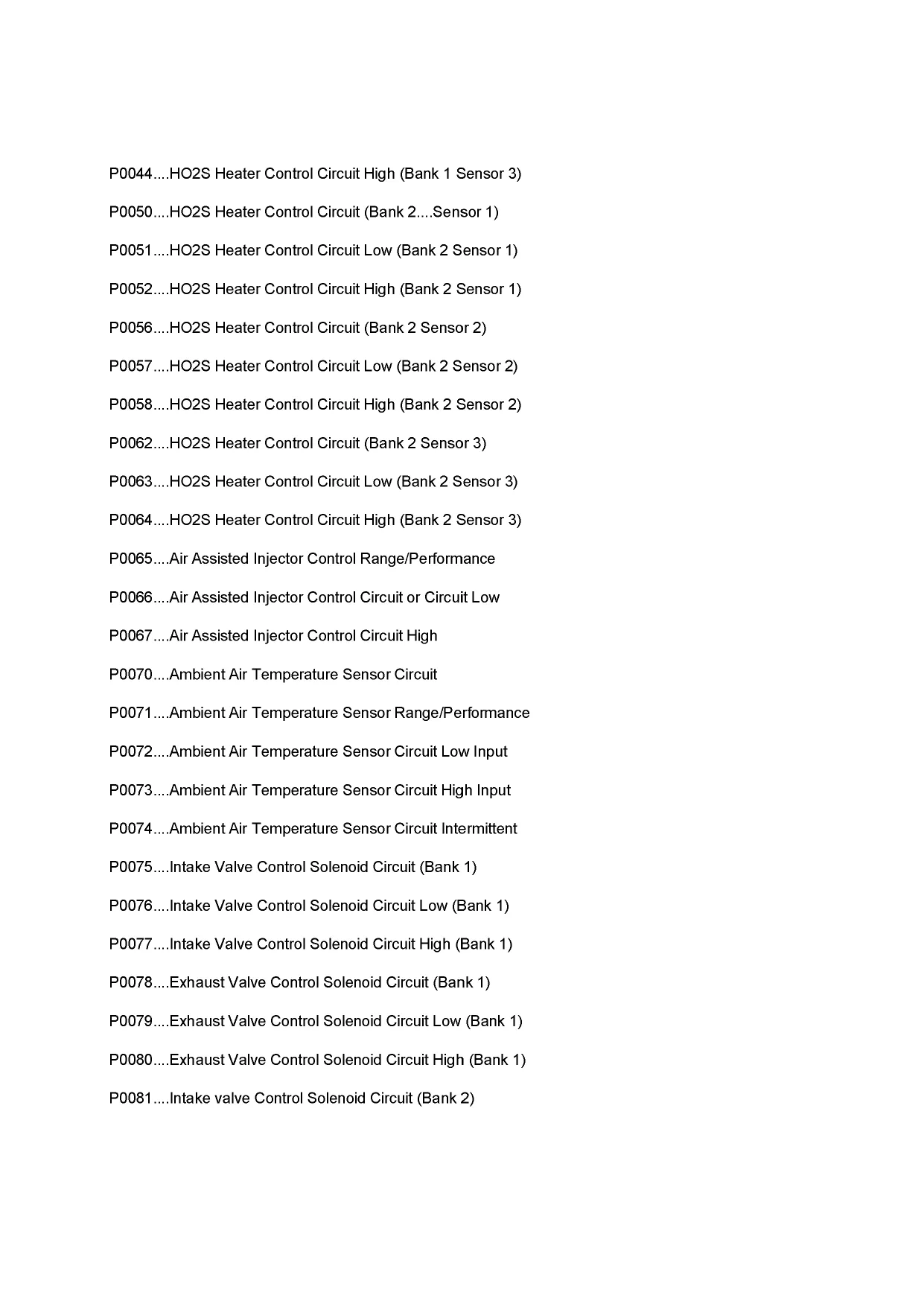

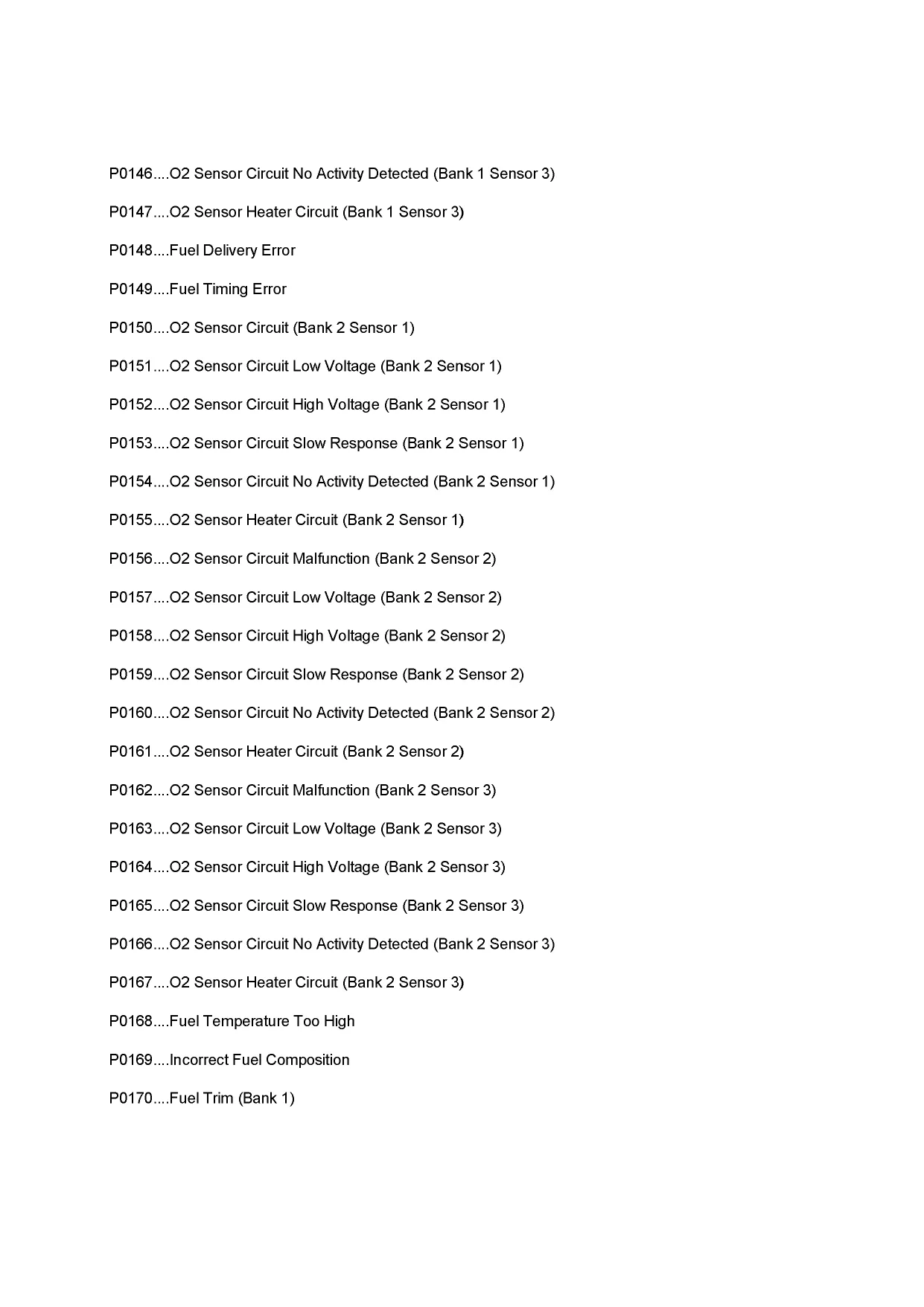

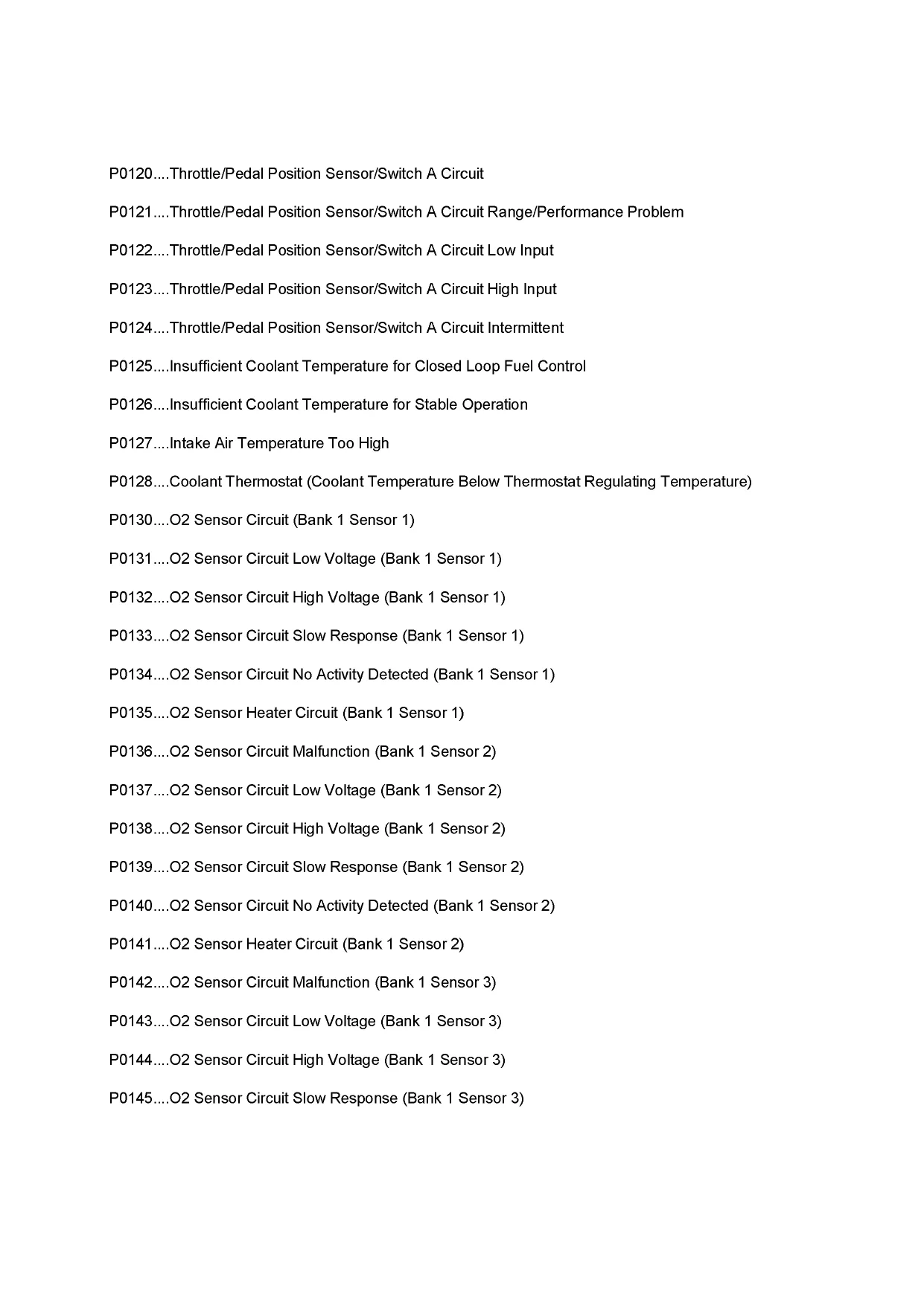

Generic OBD-II trouble-code definitions 33
GM trouble-code definitions 14

Use the service sections for repair procedures and component specifications; the owner's manuals support vehicle operation and routine maintenance. Coverage follows engine and equipment codes, with selected FWD, AWD, Red Line, and Hybrid material.

Repair scope: Manual-transmission overhaul and dedicated hybrid battery/inverter repair are outside this set. Hybrid engine and A/C procedures reference separate high-voltage isolation instructions that are not included.

Transmission file mismatch: The folder labeled “6T70–6T75” contains a specification PDF identifying 6T40/6T45 units, RPO MH8/MH7. Match the transmission code to the individual document before selecting specifications.

PDF Search, Bookmarks, and File Contents

Finding text and reading diagrams: The owner's manuals have searchable text. Service PDFs combine searchable text with image-based illustrations and schematics; small wire-color, circuit, and pin labels require zooming. The two code lists have no embedded search text. Both owner's manuals and 27 service PDFs have bookmarks, although some service entries are numeric or truncated; the remaining 44 PDFs have none.

The ZIP contains 73 printable PDFs totaling 5,115 pages. This total includes eight introductory pages, 26 index pages, and 14 notes pages within the owner's manuals, together with both code-list supplements.


Powertrain Repair, Chassis Service, and Electrical Systems

The following selected contents outline the service coverage. Additional topics include parking-brake adjustment and windshield-wiper performance checks.

  • Engine repair: Step-by-step engine removal, cylinder-head disassembly, piston and bearing inspection, timing-chain service, and engine prelubing, with separate on-vehicle and off-vehicle instructions.

  • Automatic transmissions: 4T45-E and six-speed repair sections cover removal, valve-body work, clutch assemblies, internal disassembly, reassembly, and exploded component views.

  • Brakes and chassis: ABS automated bleeding, steering-angle sensor centering, brake-caliper service, wheel-bearing replacement, strut work, and power-steering bleeding.

  • AWD driveline: Transfer-case disassembly and assembly, rear differential clutch-module replacement, propeller-shaft removal, and drive-shaft joint and boot repair.

  • Engine controls: Crankshaft position variation learning, throttle learning, ECM replacement, fuel-pressure gauge installation, and fuel-pump, injector, and EVAP component service.

  • Climate control: Manual and automatic HVAC sections, actuator replacement, refrigerant recovery and recharging, and compressor oil-balancing procedures for different equipment configurations.

  • Electrical systems: System wiring diagrams, immobilizer relearn, keyless-entry transmitter programming, tire-pressure sensor learning, and sunroof initialization and synchronization.

The repair sections suit technicians familiar with GM scan-tool functions and internal powertrain work.

Engine Variants and Repair Details

Mechanical coverage distinguishes LE5/LAT, LZ4, and LY7/LCS engines. The four-cylinder material covers balance-shaft timing; the V6 sections distinguish pushrod valve gear from overhead-cam timing-chain arrangements. These differences help identify the appropriate repair procedure before disassembly or parts selection.

Reference tables provide component-specific torque specifications, bearing clearances, wear limits, and fluid capacities. Cooling sections address water pumps, thermostats, and static or vacuum-assisted filling.

The balance-shaft bushing instructions warn that an off-center EN-43650 removal tool can damage the bearing bore and engine block.

Transmission and AWD Coverage

Transmission references include clutch-application charts, shift-solenoid states, pressure specifications, and internal component locations.

The transfer-case material covers shaft, bearing, and seal inspection. Its DT-48094 seal-protector note addresses the risk of damaging the intermediate-shaft seal during installation.

Brake Hydraulics and Rotor Correction

Brake procedures extend to master-cylinder bench bleeding and manual or pressure bleeding. Rotor lateral-runout correction covers indexing, correction plates, and on-vehicle lathe work, with the associated inspection requirements.

Electrical Diagrams and Service Functions

Diagram examples include Power, Ground, Serial Data and MIL (LAT/LE5), Wheel Speed and YAW/Lateral Speed Sensors, and All-Wheel Drive Schematics. HVAC and SRS sections each include Module Power, Ground and Data Communications diagrams.

The throttle-learning material explains why idle quality can change after throttle-body cleaning or replacement. Immobilizer programming references GM's Service Programming System and compatible scan equipment; the PDFs themselves do not provide programming software.

Separate engine-electrical sections cover battery-current sensors and engine-specific starter and generator replacement. The supplemental generic OBD-II and GM code lists provide code definitions, rather than vehicle-specific fault-isolation charts.

Body Repair and Owner Information

Collision repair sections cover body reference dimensions, structural identification, panel replacement, and sectioning. Separate files address glass, door and liftgate hardware, exterior trim, seats, and interior panels.

The owner's manuals explain RKE transmitter operation, manual and power seat adjustment, active head restraints, safety belts, rear outboard comfort guides, and LATCH child restraints. Passenger sensing and frontal, side-impact, and roof-rail airbags are also covered.

Consult a qualified technician before servicing brake or airbag systems, and follow the relevant service precautions.

Preview: Balance-Shaft Inspection Specifications

For the LE5/LAT engine sections, the balance-shaft specifications list bearing clearance of 0.030–0.060 mm and end play of 0.050–0.300 mm. These inspection dimensions accompany the balance-shaft service material and distinguish radial bearing clearance from axial shaft movement.
