Yamaha RX10H RX10SH RX10MH RX10MSH RX10RH RX10RSH (RX-1, RX-1 LE, RX-1 Mountain, RX-1 Mountain LE, RX-1 ER, RX-1 ER LE) - Comprehensive Snowmobile Service Manual (2002)
Product Gallery
Sample pages from the Yamaha RX10H RX10SH RX10MH RX10MSH RX10RH RX10RSH (RX-1, RX-1 LE, RX-1 Mountain, RX-1 Mountain LE, RX-1 ER, RX-1 ER LE) - Comprehensive Snowmobile Service Manual (2002) manual
Purchase Information
Technical Specifications
- Document Number / Seller:
- 28508 / Elizabeth Morgan
- File Size:
- 11.62 MB
- File Type:
- Language:
- English
- Pages:
- 330
- Printable:
- Yes
- Estimated Download Time:
- 0.24 Minutes
- Delivery Format:
- Digital (PDF) - Instant Access
- Category:
- Snowmobile
- Brand:
- Yamaha
- Reviewed and Approved:
- Jan 2, 2026
Yamaha Models and Parts Covered in this Snowmobile Manual
- Yamaha RX10H (2002)
- Yamaha RX-1 (2002)
- Yamaha RX10SH (2002)
- Yamaha RX-1 LE (2002)
- Yamaha RX10MH (2002)
- Yamaha RX-1 Mountain (2002)
- Yamaha RX10MSH (2002)
- Yamaha RX-1 Mountain LE (2002)
- Yamaha RX10RH (2002)
- Yamaha RX-1 ER (2002)
- Yamaha RX10RSH (2002)
- Yamaha RX-1 ER LE (2002)
- Yamaha RX10 (2002)
- Yamaha RX10S (2002)
- Yamaha RX10M (2002)
- Yamaha RX10MS (2002)
- Yamaha RX10R (2002)
- Yamaha RX10RS (2002)
Complete Manual Information
Yamaha RX10 Series Snowmobile Service Manual - 2002 Edition
This factory-issued service manual provides the authorized engineering protocols required for the maintenance and overhaul of the Yamaha RX10 4-stroke platform. It contains critical data for high-performance tuning, including a hyper-specific requirement for the oil level gauge coupler which must be disconnected prior to gauge removal to prevent lead twisting and potential severance. Adherence to these factory benchmarks ensures maximum operational uptime and preserves the integrity of the dry sump lubrication and liquid-cooling systems.
Technical Applicability & Chassis Configurations
The service procedures documented herein apply to the following 2002 model year designations, categorized by chassis length and transmission architecture:
- Standard Performance Chassis (Short Track / No Reverse)
- RX10 (RX-1)
- RX10S (RX-1 LE)
- Extended Utility Chassis (Reverse Transmission Equipped)
- RX10R (RX-1 ER)
- RX10RS (RX-1 ER LE)
- High-Altitude Mountain Chassis (Long Track)
- RX10M (RX-1 Mountain)
- RX10MS (RX-1 Mountain LE)
Operational Parameters & Service ROI
- Precision Maintenance: Step-by-step disassembly and assembly instructions utilizing 2D exploded views for error-free component mating.
- System Validation: Comprehensive electrical troubleshooting via dedicated circuit diagrams and self-diagnosis terminal protocols.
- Calibration Accuracy: Detailed jetting and clutch weighting charts specific to high-altitude environments and variable ambient temperatures.
Document Metadata
- Print Number: LIT-12618-02-28
- Factory Code: 8FA-28197-10
- Model Year: 2002
- Document Type: Full Service Manual
Calibration Data & Factory Benchmarks
The engine architecture requires strict adherence to top-tier technical specifications to maintain the 11.8:1 compression ratio and high-RPM durability.
- Cylinder Compression: Standard 1,450 kPa (206 psi) at 400 r/min.
- Valve Clearance (Cold): Intake: 0.11 ~ 0.20 mm; Exhaust: 0.21 ~ 0.25 mm.
- Lubrication Architecture: Dry sump system requiring API SE, SF, or SG grade 5W-30 oil.
- Torque Application: Cylinder head M10 nuts require a multi-stage sequence (20 Nm + 120-140 degrees) following the plastic-region tightening method.
Visual Navigation Aids
- System Schematics: Comprehensive wiring diagrams for the DC-CDI ignition, charging system, and grip/thumb warmer circuits.
- Mechanical Overlays: Illustrated cable and hose routing guides (Section 9) ensuring interference-free operation of throttle and brake lines.
- Component Breakdowns: Exploded views for the primary and secondary sheaves, including specific bushing press points.

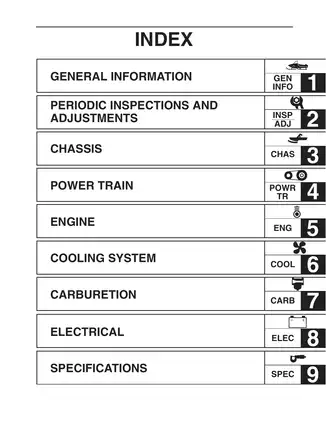

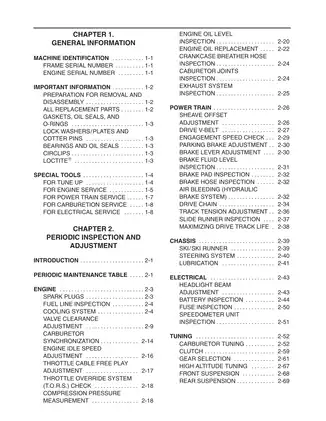

Table of Contents
- General Information: Machine identification, special tools, and fundamental service protocols.
- Periodic Inspections and Adjustments: Maintenance schedules, engine synchronization, and chassis lubrication.
- Chassis: Steering system, ski geometry, and front suspension double-wishbone service.
- Power Train: Primary/Secondary sheave overhaul, drive chain housing, and track tensioning.
- Engine: Cylinder head, camshafts, valves, and bottom-end crankcase/piston assembly.
- Cooling System: Thermostat testing, water pump overhaul, and heat exchanger replacement.
- Carburetion: BSR37 Mikuni disassembly, fuel pump testing, and TPS adjustment.
- Electrical: Ignition timing, starting system, lighting, and self-diagnosis logic.
- Specifications: Tightening torques, high-altitude settings, and general dimensions.
Operational Limits & Fluid Specifications
- Coolant Capacity: 4.7 Liters (60% antifreeze, 40% distilled water ratio).
- Chaincase Lubricant: 0.25 Liters of Gear Oil API GL-3 (SAE #75 or #80).
- Spark Plug Specifications: NGK CR9E with a gap of 0.7 ~ 0.8 mm (0.028 ~ 0.031 in).
- Brake Fluid: DOT 4 glycol-based fluid; avoid contact with plastic/painted surfaces.
