2006–2007 Yamaha PZ50W, PZ50GTW, PZ50FXW, PZ50MW, PZ50VTW, PZ50MPW Snowmobile Service Manual (P/N LIT-12618-02-58)

• Factory coverage: 2007 Yamaha PZ50W, PZ50GTW, PZ50FXW, PZ50MW, PZ50VTW, and PZ50MPW; 426-page PDF, Yamaha P/N LIT-12618-02-58, first edition, July 2006.
• Engine overhaul procedures: Covers engine removal and installation plus internal service of the liquid-cooled DOHC twin, including camshafts, cylinder head, valves, starter clutch, oil pump, balancer, crankcase, connecting rods, pistons, and crankshaft.
• Clutch and power train work: Details primary and secondary sheave disassembly, inspection, assembly, and setup; drive-chain and secondary-shaft service; reverse gear-case repair on equipped models; hydraulic brake work; slide-rail suspension; front axle; and track procedures.
• Fuel-injection diagnostics: Includes throttle-body synchronization, compression and fuel-pressure testing, ECU self-diagnostic mode, fault-code tables, injector and pressure-regulator inspection, and throttle-position sensor adjustment.
• Electrical and cooling systems: Provides circuit tests and troubleshooting for ignition, starting, charging, lighting, signal, grip warmer, radiator-fan, and drive/reverse systems, along with radiator, thermostat, water-pump, and mechanical-seal service.
• Chassis setup and factory data: Covers steering and front-suspension repair, ski inspection, brake bleeding, clutch and suspension tuning, track alignment and tension, maintenance schedules, torque tables, capacities, wear limits, clearances, electrical test values, and cable routing.

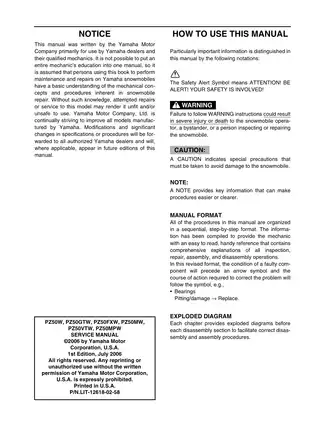

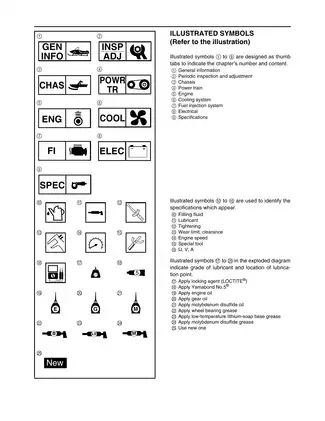

Yamaha states that this manual was written primarily for its dealers and qualified mechanics, and it assumes a basic understanding of snowmobile repair. Its sequential procedures and exploded views are intended for users who already understand normal shop practices rather than someone learning mechanical fundamentals from scratch.

PZ50 Model Codes and Reverse-System Differences

The specifications identify the six model families by region: 8GC1/8GC2 for PZ50, 8GK1/8GK2 for PZ50GT, 8GN1/8GN2 for PZ50FX, 8GP1/8GP2 for PZ50M, 8GJ1/8GJ2 for PZ50VT, and 8GR1/8GR2 for PZ50MP. USA/Canada and European versions are separated where their chassis, drive, or specification data differ; PZ50MP coverage is for Canada and Europe.

Configuration differences are carried into the repair chapters. The base PZ50 has no reverse system, while the other five families receive secondary-shaft/reverse-gear-case and electric drive/reverse-selector coverage. Separate illustrations and procedures address model-group differences in cowlings, steering, skis, front suspension, seat and fuel-tank arrangements, exhaust, slide-rail suspension, and track hardware. The electrical material also distinguishes radiator-fan circuits on the M/VT/MP configurations and passenger-grip warmer equipment on the touring variants.

ECU Diagnostics, Circuit Diagrams, and Exploded Views

Fuel-injection troubleshooting goes beyond a list of fault codes. The manual provides circuit checks and reinstatement criteria for cylinder-identification and crankshaft-position inputs, intake-pressure and throttle-position circuits, temperature and speed sensors, injectors, ignition coils, the fuel pump, and related relays. Component tests are tied to the ECU diagnostic mode and the meter's self-diagnostic display.

Named diagnostic graphics include the fuel-injection wiring diagram, ignition-system circuit diagram, electrical-starting-system circuit diagram, charging-system circuit diagram, grip-warmer-system circuit diagram, and drive/reverse-selecting-system circuit diagram. Full 2007 machine wiring diagrams for the base PZ50 and the GT/FX/M/VT/MP group appear at the end, with component legends and wire color codes. Exploded assembly views precede the manual's major disassembly sections.

Yamaha Special Tools and Assembly Cautions

The special-tool section supplies North American numbers and their 90890-series equivalents for engine, clutch, fuel-injection, and electrical repair. Examples include primary sheave puller YS-01881-A/YS-01881-1 (90890-01898), clutch spider separator YS-28890-C (90890-01711), fuel-pressure adapter YM-03176 (90890-03176), and digital circuit tester YU-A1927 (90890-03174).

The primary-sheave spider has a left-hand thread, and the manual warns that poor support while breaking it loose can crack the assembly. It also requires crankshaft journal bearings and connecting-rod big-end bearings to remain in their matched positions so the specified oil clearances are preserved and engine damage is avoided. Fuel-tank work can leave residual fuel in the hose; clutch, suspension, brake, and track service also requires secure machine support and the specified holding or pulling tools.
