2009 Yamaha YZF-R6 YZFR6Y / YZFR6YC Service Manual (P/N LIT-11616-22-51)

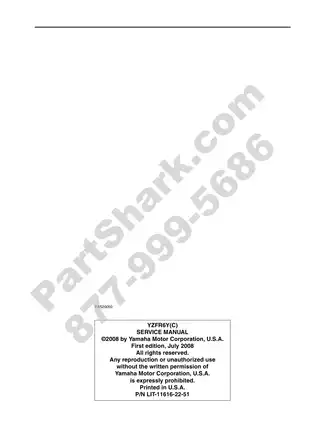

Yamaha's first-edition service manual for the 2009 YZF-R6 YZFR6Y and YZFR6YC, P/N LIT-11616-22-51, was published in July 2008. It covers maintenance, mechanical repair and electrical diagnosis for the USA and California configurations.

Searchable Service Text and Wiring Sheets

Text access and diagram detail: Service text is searchable, with 72 embedded bookmarks covering the main chapters, component sections and appended wiring diagrams. Lettering within several chapter circuit diagrams is not searchable. Small wiring labels require zooming, and gray watermarks overlap portions of the diagrams.

One printable, English-language 434-page PDF includes the cover and preliminary pages, seven blank separator pages, the back cover and two appended landscape wiring sheets—one monochrome and one color.

Engine Overhaul, Chassis Service and FI Diagnosis

These selected service topics are part of the manual's coverage; other contents include instrument-display settings and wheel static-balancing procedures.

• Engine repair: Engine removal and installation, camshaft timing, cylinder-head and valve service, crankcase separation, piston inspection and crankshaft bearing selection.

• Clutch and transmission: Step-by-step disassembly and reassembly, clutch-pack inspection and width adjustment, transmission shaft checks, shift-fork inspection and shift-drum installation.

• Chassis and brakes: Front-fork overhaul, steering-head and swingarm service, brake-caliper and master-cylinder repair, hydraulic bleeding and drive-chain inspection.

• Cooling system: Radiator and cap pressure testing, thermostat checks, oil-cooler removal, water-pump disassembly and seal installation.

• Fuel and intake controls: Throttle-body synchronization, fuel-pressure testing, primary and secondary injector checks, YCC-T/YCC-I operation and throttle-position-sensor adjustment.

• Electrical troubleshooting: System circuit diagrams, ECU self-diagnostic tables, sensor and actuator tests, starting interlock checks, charging diagnosis and wiring diagrams.

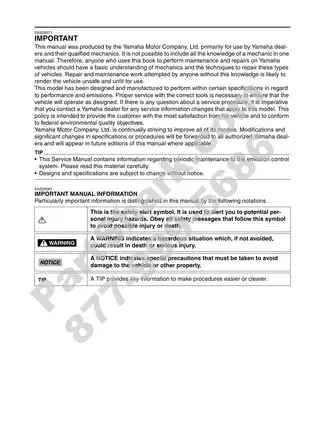

Written primarily for Yamaha dealers and their qualified mechanics, this manual assumes a basic understanding of mechanics and vehicle repair techniques.

Engine Inspection and Assembly References

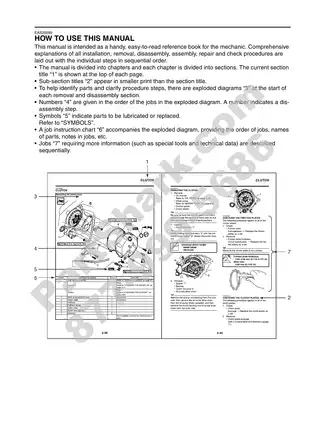

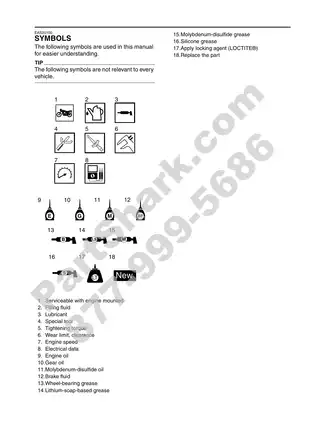

Exploded assembly views identify part relationships, lubrication points and replacement items alongside job charts and component-specific torque data. Together with inspection limits, these references support teardown planning and parts assessment during a repair.

The engine sections explain valve-pad selection, camshaft alignment and Plastigauge checks for crankshaft and connecting-rod bearings. Clutch service distinguishes plate-thickness options and total pack-width adjustment. Connecting-rod fasteners have a staged torque-and-angle procedure.

The valve section explains that titanium intake and exhaust valves used for seat lapping must be replaced rather than returned to service.

Fuel Injection and Electrical Fault Tracing

The YCC-T/YCC-I system outline and control outline explain the relationship between throttle sensors, the ECU, throttle servo and intake-funnel drive. Diagnostic-mode tables connect displayed faults with sensor readings, actuator tests and reinstatement checks, helping distinguish harness faults from component faults before replacement.

Fuel-system procedures distinguish the California rollover valve and hose arrangement. Throttle-body coverage includes cleaning, inspection and sensor adjustment; the throttle bodies are not to be disassembled.

The electrical chapter includes Ignition System, Electric Starting System, Charging System and Fuel Injection System circuit diagrams. Component tests cover the YTZ10S battery, ignition coils, relays and sensors.

The disposable oil-coated paper air filter carries a specific compressed-air warning because that cleaning method can damage the element.

Forks, Steering and Hydraulic Brakes

Front-fork service covers the 41 mm telescopic fork, including seals, damper components, oil-level measurement and bleeding. The special-tool references identify fork spring compressor YM-01441 and damper rod holder YM-01506. The cap-bolt collar projections can break if the preload assembly is handled incorrectly.

Brake coverage includes caliper-piston and seal inspection, master-cylinder service and bleeding instructions. Rear-shock coverage addresses removal, inspection and suspension-linkage service; the manual warns against opening the nitrogen-charged unit.

Cooling Checks and Maintenance Planning

Mileage- and time-based maintenance charts cover emissions checks and general lubrication. Cooling procedures include leak testing, thermostat operation and water-pump seal installation, supported by the Engine Oil Lubrication Chart, Cooling System Diagrams and Cable Routing drawings.

Because high-performance motorcycle maintenance involves inherent safety risks, always verify procedures and consult a certified technician before proceeding with advanced mechanical work.

Examples of Valve, Cooling and Electrical Specifications

For valve-clearance inspection, the intake specification is 0.12–0.19 mm with the engine cold. Cooling data list a radiator capacity of 2.30 L, including all routes, separately from the coolant reservoir.

Electrical tests specify crankshaft-position-sensor resistance of 248–372 ohms at 20 °C (68 °F). The AC magneto reference output is 14.0 V, 420 W at 5,000 rpm.
