2001 Yanmar 4JH2E / 4JH2-TE / 4JH2-HTE / 4JH2-DTE / 4JH2-UTE Marine Diesel Engine Factory Service & Repair Manual (P/N A0A1029-0104)

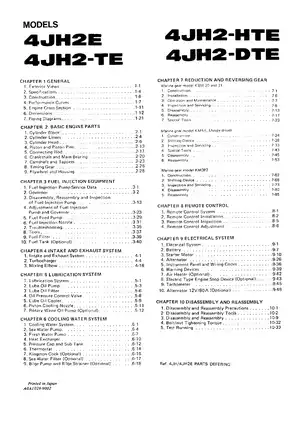

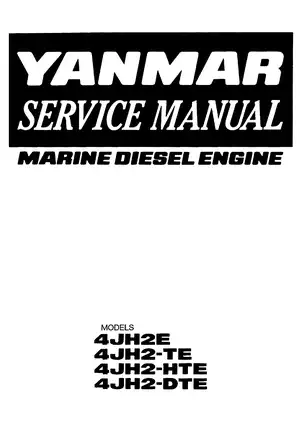

This 2001 Yanmar service and repair manual covers the 4JH2E, 4JH2-TE, 4JH2-HTE, 4JH2-DTE, and 4JH2-UTE marine diesel engines and their associated marine gears. Publication A0A1029-0104 includes the April 2001 revision.

• Base engine overhaul: Cylinder block measurements, cylinder head inspection, piston and connecting rod service, crankshaft bearing checks, timing gear inspection, and engine reassembly.

• Fuel injection: In-line and distributor pump servicing, governor adjustment, injection timing, nozzle testing, calibration data, and troubleshooting for starting and running faults.

• Intake and exhaust: IHI RHB52 and RHB52HW turbocharger inspection and overhaul, rotor clearance checks, air cooler service, and exhaust mixing elbow coverage.

• Marine gears: KBW20 and KBW21 clutch inspections, KM4A angle drive and KM3P2 cone clutch servicing, shaft adjustment, gearbox reassembly, and remote control setup.

• Lubrication and cooling: Trochoid lube oil pumps, oil coolers, seawater pump impellers, centrifugal fresh water pumps, heat exchangers, and wax pellet thermostat inspection.

• Electrical diagnosis: Starter and alternator component testing, instrument panel wiring, warning devices, electric engine stop equipment, and tachometer troubleshooting procedures.

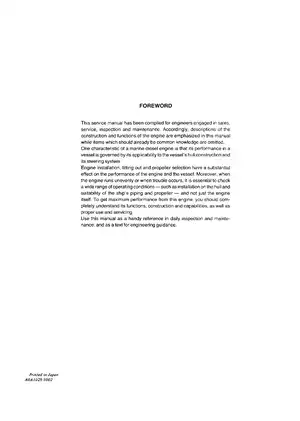

Written for engineers involved in sales, service, inspection, and maintenance, the manual assumes existing engine service knowledge. It suits experienced marine mechanics and technicians planning component repairs and overhauls.

Cylinder Head, Pistons, and Crankshaft Inspection

The basic engine chapter details cylinder block measurements, piston ring installation, and connecting rod twist and parallelism checks. Cylinder head work includes distortion measurement, valve seat angles, seat grinder corrections, and lapping.

It also documents top clearance measurement using fuse wire and crankpin oil clearance checks with Plastigage. Standard dimensions and wear limits help technicians assess whether components remain serviceable before ordering replacements. The connecting rod section explains why incorrect installation of its tapered small-end bushing can cause twisting or binding.

Engine cross-section views and dimensional drawings show the assembly layout; valve timing charts support inspection after timing gear work. The disassembly and reassembly chapter follows major engine components through removal, installation, and test running.

Injection Pump Calibration and Turbocharger Service

The YPES-4CL material covers governor operation, boost compensation, governor spring settings, and pump calibration. The 4JH2-UTE has a separate NP-VE4 distributor pump section covering its governor, timer, disassembly, and adjustment. Calibration procedures call for dedicated pump test equipment.

Nozzle coverage includes opening-pressure adjustment, spray evaluation, and seat tightness testing. Fuel piping diagrams and troubleshooting charts help trace starting difficulties, uneven running, smoke, and reduced output.

Turbocharger procedures address dismantling, cleaning, inspection, and reassembly. The RHB52 and water-cooled RHB52HW configurations have model-specific component differences; the shared service procedures do not make their parts interchangeable. Engine performance curves provide additional reference information.

Marine Gear Rebuilds and Control Linkage

The reduction and reversing gear chapter distinguishes KBW20/KBW21 multi-disc clutches from the KM4A angle drive and KM3P2 cone clutch arrangements. It includes friction surface and gear inspections, bearing checks, shaft shimming, and reassembly. Exploded views show the clutch and shaft assemblies.

Shifting-device sections explain clearance adjustment and cable travel. The remote control chapter covers Morse single-lever controls, throttle and clutch coordination, and inspection of cables and brackets.

The file also contains a 3JH2 marine-gear specification page and a torque-summary page headed 3JH2 Series. These are not 4JH2-specific reference tables.

Oil Circuits, Cooling Components, and Electrical Faults

Lubrication coverage follows oil flow through the filter, pressure control valve, cooler, and piston cooling nozzles. Cooling water schematics distinguish the fresh water and seawater circuits, with inspection procedures for the heat exchanger, pressure cap, and thermostat. Fresh water pump faults are addressed through inspection and assembly replacement.

Electrical sections cover starter engagement faults, alternator charging diagnosis, and warning-device tests. B-, C-, D-, and E-type instrument panel wiring diagrams accompany sender and tachometer checks. The alternator precautions explain that high-voltage insulation testers can damage the IC regulator and diodes.

High-pressure fuel and rotating components require qualified service work using the applicable manufacturer procedures.

Selected Cylinder Head and Bearing Inspection Values

The following examples are a small selection of the manual's inspection data. For cylinder head distortion, the standard is 0.05 mm or less, while the wear limit is 0.15 mm.

For crankpin and main journal bearings, the specified oil clearance is 0.038–0.093 mm, with a wear limit of 0.25 mm. These examples distinguish normal inspection dimensions from wear limits; the surrounding procedures explain the corresponding measurement methods.

Chapter Bookmarks and Wiring Diagram Readability

Search, navigation, and diagram detail: Text search is limited to the opening title page; the manual pages are not text-searchable. PDF bookmarks navigate the chapters and subsections. Small wiring labels require enlargement, and some connector and wire-code labels in the E-type diagram remain difficult to read.

The download contains one printable 406-page PDF in English. That total includes five opening pages, 397 chapter pages (including two heading-only pages), two pages comparing 4JH and 4JH2 parts, and two closing cover/contact pages.
