2004–2008 Yanmar 3YM30/3YM20/2YM15 Marine Diesel Engine Service Manual (P/N M9961-03E101)

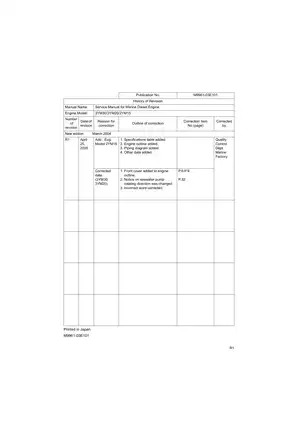

This Yanmar service manual covers the 2004–2008 3YM30, 3YM30C, 3YM20, 3YM20C, 2YM15, and 2YM15C marine diesel engines. P/N M9961-03E101 is the March 2004 publication with the April 25, 2005 R1 revision, which adds the 2YM15.

• Engine repair: Engine removal and reinstallation, cylinder-head service, valve-seat correction, piston and connecting-rod work, crankshaft inspection, and timing-gear assembly.

• Fuel equipment: Injection-pump removal and installation, injection timing adjustment, nozzle pressure and spray-pattern tests, fuel-system bleeding, and fuel feed-pump service.

• Lubrication and cooling: Trochoid lube oil pump inspection, seawater-pump overhaul, heat-exchanger leak testing, thermostat checks, and cooling-water passage cleaning.

• Electrical systems: B-type instrument-panel wiring, starter-motor construction and performance data, alternator inspection, alarm diagnosis, glow plugs, and the electric engine-stop device.

• Troubleshooting: Nine cause-and-remedy charts cover sudden stopping, uneven cylinder output, poor exhaust color, hard starting, and other engine or marine-gear faults.

• Drive configurations: KM2P-1 marine-gear and SD20 sail-drive installations, engine outline drawings, four piping diagrams, and remote-control installation and adjustment.

Written for engineers working in service, inspection, and maintenance, it assumes existing engine knowledge.

Engine Inspection and Internal Repair

Maintenance schedules extend from daily pre-start checks to 1,000-hour or four-year service, distinguishing owner maintenance from shop inspection. Internal repair sections include cylinder-bore measurement, piston sizing, bearing-clearance checks, valve-guide service, and camshaft inspection, supported by wear limits and bolt-and-nut torque tables.

Piston identification marks and cylinder/piston pairing tables help establish the correct replacement combination before assembly. Compression-test diagnosis links low readings to valve sealing, head-gasket leakage, and piston or cylinder wear; the tool section identifies compression gauge TOL-97190080.

Propeller-shaft alignment: Alignment checks appear in the maintenance schedule, but the centering procedure is in a separate pleasure-boat installation manual.

Fuel Injection and Drive-Service Boundaries

Model-specific pump data cover injection quantities, governor settings, and timing. A fuel-system diagram and pump/governor cross-section show the connections and internal arrangement.

The manual provides on-engine pump removal, installation, and timing work, plus fuel-adjustment data. Detailed YPES-ML pump disassembly and reassembly require the separate injection-pump service manual.

KM2P-1 specifications and routine oil service are included; internal gear inspection, disassembly, and reassembly refer to the GM-series service manual. SD20 oil-change procedures refer to the separate sail-drive operating manual.

Cooling, Lubrication, and Breather Service

Seawater-pump coverage includes impeller, shaft, bearing, and oil-seal inspection. Heat-exchanger work includes cooler-core removal and leak testing. The manual specifies assembly replacement for a faulty freshwater pump.

The seawater-pump notes warn that incorrect rotation can twist and damage the impeller. Oil-change instructions also identify excessive crankcase vacuum during oil extraction as a cause of breather-diaphragm damage.

Trochoid pump inspection includes rotor-clearance limits and pressure-control-valve information. Intake and exhaust sections cover the crankcase breather and both L-type and U-type mixing elbows.

Starting, Charging, and Alarm Circuits

The standard Hitachi LR160-741 and optional LR180-03C alternators have separate wiring diagrams, exploded views, and output-characteristic charts. Starter coverage includes its structure, circuit, and load/no-load performance specifications; warning-device tables distinguish indicator, switch, and wiring faults.

Safety notes address high-pressure fuel spray, battery isolation before electrical work, and hot cooling-system components.

Coolant Capacity Examples

These are a few of the coolant specifications listed in the manual.

Engine-side capacity is 4.9 L for the 3YM30/3YM30C and 3.0 L for the 2YM15/2YM15C. The recovery tank is listed separately: 0.8 L at the FULL mark, within an overall tank capacity of 1.3 L.

PDF Navigation and Page Breakdown

Text search and diagram detail: The main text is searchable, with embedded bookmarks for chapters and subsections. Some drawing labels are not searchable. Small labels in the B-type wiring diagram require enlargement for comfortable reading.

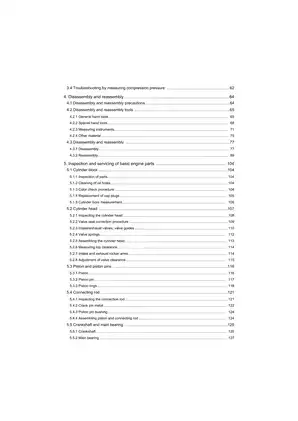

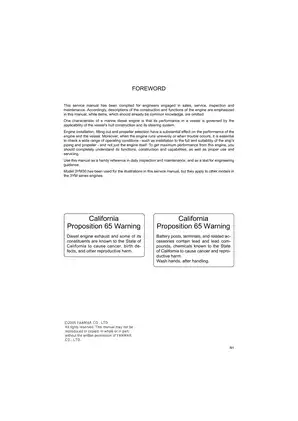

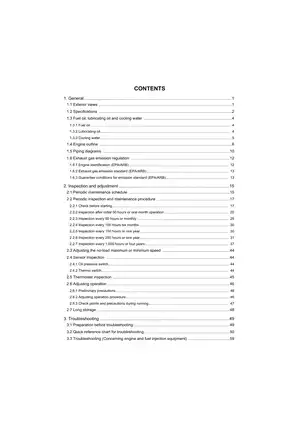

The download contains one printable English-language PDF with 231 pages: 214 technical pages, 15 opening pages covering the cover, revision history, foreword, contents, and safety/service notes, plus two closing publication and contact pages. All are already included in the total.
