1985 onwards Yanmar 4JH(B)E, 4JH-T(B)E, 4JH-HT(B)E & 4JH-DT(B)E Marine Diesel Engine Service Manual (P/N 0000A0A1647)

This Yanmar 4JH series service manual, document code 0000A0A1647, covers the 1985-onward 4JHE, 4JH-TE, 4JH-HTE and 4JH-DTE marine diesel engines, including the 4JH-BE, 4JH-TBE, 4JH-HTBE and 4JH-DTBE angle-drive variants.

• Internal engine: Cylinder block, liners, cylinder head, pistons, connecting rods, crankshaft and valve-train inspection, with wear limits and reassembly procedures.

• Fuel injection: Bosch-type YPES-CL pump and centrifugal governor overhaul, automatic advancing timer identification, injector testing, injection timing and pump calibration.

• Air intake and exhaust: Turbocharger disassembly, rotor inspection, reassembly and troubleshooting, together with intercooler construction, exhaust mixing elbows and breather arrangements.

• Lubrication and cooling: Oil-pump inspection, oil-cooler testing, sea water pump rebuilding, fresh water pump inspection, heat-exchanger testing and thermostat checks.

• Marine gears: KBW20 and KBW21 multidisc clutch overhaul, KM4A cone-clutch inspection, bearing and shim adjustment, shifting checks and fault diagnosis.

• Electrical systems: Starter and alternator repair, charging-system diagnosis, instrument-panel wiring diagrams, warning devices, tachometer checks and engine-stop solenoid testing.

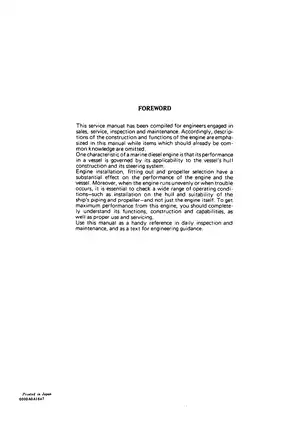

Written for engineers engaged in service, inspection and maintenance, the manual assumes established engine knowledge rather than explaining basic workshop practice.

Internal Engine Inspection and Parts Compatibility

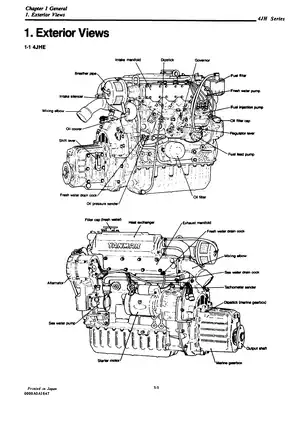

Engine cross sections, exploded assembly views, dimension charts and performance curves accompany cylinder-block, cylinder-bore, piston and crankshaft inspection. Separate procedures cover engine disassembly, reassembly, installation and test running.

The parts-identification tables distinguish cylinder heads, pistons, injectors and advancing timers by model and engine number, helping match replacement parts to the engine's production configuration.

The 4JHE and 4JH-TE crankshafts cannot substitute for the 4JH-HTE/4JH-DTE crankshaft: identical dimensions do not provide the required material durability. The liner section links excessive projection to rust on the block ledge and warns that tapping liners into place can deform them.

Fuel Injection Overhaul and Calibration

Pump section views support the procedures for plungers, delivery valves, the centrifugal governor and automatic advancing timer. The fuel chapter also covers diaphragm feed-pump inspection, nozzle opening-pressure and spray-pattern testing, and model-specific injection settings.

Calibration after major pump-component replacement requires a dedicated pump tester; the tool listings include rack indicator 158090-51500. Fuel-piping diagrams distinguish later arrangements and transitional engines that retain the earlier air-bleeding procedure.

High-pressure marine diesel fuel-system work requires factory precautions to prevent equipment damage or personal injury.

Turbocharger, Lubrication and Cooling Work

Turbocharger troubleshooting relates low output, abnormal noise and oil leakage to inspection points. Rotor-clearance checks and component inspection accompany the disassembly and reassembly procedures.

Lubrication coverage includes the oil pump, pressure-control components, filters and oil coolers. The cooling chapter provides sea water pump overhaul and heat-exchanger inspection, but specifies replacement of the fresh water pump as an assembly rather than internal overhaul.

Marine Gear Overhaul and Shift Controls

KBW20/KBW21 sections provide multidisc wet-clutch tolerances, wear limits, shaft-bearing checks and shim adjustment. KM4A sectional views accompany cone-clutch lapping, torque-limiter inspection and shifter adjustment; its engine-oil lubrication differs from the ATF specified for KBW20/KBW21 gears.

Morse MT-2 and MV controls and 33C cables are covered through installation and adjustment procedures.

Electrical Diagnosis and Wiring

Coverage includes the Hitachi S12-77A starter, standard LR155-20 alternator and optional LR180-03 alternator. Alternator fault-finding flowcharts accompany rotor, stator, diode and regulator tests.

B-, C- and D-type instrument-panel diagrams show circuit connections, couplers and wire colors. Separate checks address alarms, the tachometer, air heater and engine-stop solenoid.

A Preview of Valve and Connecting-Rod Data

The valve and connecting-rod values below are a small selection from the manual's adjustment, torque and wear-limit data.

For 4JHE and 4JH-TE cylinder-head inspection, the specified intake and exhaust valve-seat angles are 120° and 90°, respectively. The 4JH-series valve-adjustment section specifies intake and exhaust clearance of 0.2 mm (0.0079 in.) with the engine cold.

Connecting-rod bolt tightening torque is 4.5–5.0 kg-m (32.5–36.1 ft-lb), with engine-oiled bolts specified in the assembly procedure. The reference sections also supply fluid capacities and component tolerances, with metric and imperial equivalents.

Reading the PDF and Its Wiring Diagrams

Text search, bookmarks and diagram detail: Technical content is not searchable. Bookmarks use generic image names instead of chapter titles, and the first entry has no valid page target. Small labels and fine lines in the C- and D-panel overview diagrams remain partly difficult to read when enlarged; separate panel detail drawings are clearer.

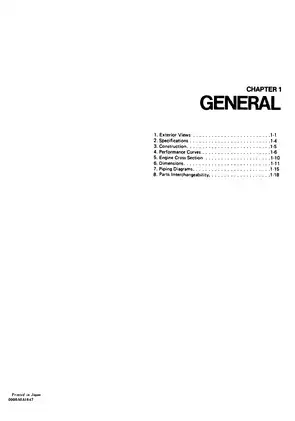

Supplied as one printable English PDF totaling 317 pages. This includes 303 technical pages and 14 cover, introductory and chapter-divider pages: front and back covers, foreword, contents and ten chapter dividers.
