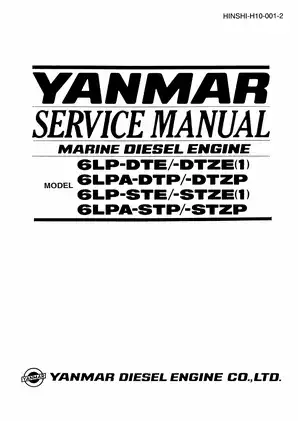

1998–2001 Yanmar 6LP/6LPA Marine Diesel Engine Service Manual (P/N HINSHI-H10-001-2)

Yanmar service manual HINSHI-H10-001-2, second revised edition, June 2001, covers the 1998–2001 6LP and 6LPA series marine diesel engines listed above, in inboard and sterndrive configurations.

Navigation and wiring detail: Embedded PDF bookmarks link to chapters and individual service procedures. The manual pages do not support text search; only the opening cover has searchable text. Small wiring labels and connector details require zooming.

• Engine repair: Cylinder head and block disassembly, piston and connecting rod inspection, crankshaft checks, bearing selection and reassembly.

• Valves and timing: Valve clearance inspection and adjustment, timing belt removal and installation, tensioner inspection and timing gear backlash checks.

• Fuel system: BOSCH VE6 injection pump removal, installation and timing adjustment, fuel filter replacement, and dual-spring injection nozzle testing and adjustment.

• Turbocharger: Construction, internal disassembly, turbine shaft play measurement, bearing and seal inspection, cleaning and reassembly procedures.

• Cooling and lubrication: Fresh water pump service, sea water pump overhaul, thermostat testing, oil pressure checks and oil pump repair.

• Electrical diagnosis: Starter and alternator repair, instrument panel wiring diagrams, connector details and symptom-based engine troubleshooting charts.

This manual is suited to mechanics experienced in marine diesel repair and equipped for precision measurement and component testing.

Model Differences and Marine Drive Coverage

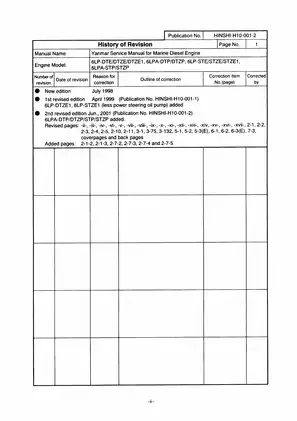

The 2001 revision adds 6LPA-DTP/DTZP/STP/STZP coverage. The 6LP-DTE procedures also apply to the 6LPA-DTP series, while 6LP-STE procedures apply to the 6LPA-STP series.

The 6LP-DTZE1/STZE1 variants omit the engine-mounted power steering pump, tank and cooler, although their nameplates read DTZE/STZE.

Marine gear specifications identify HURTH HSW630A1 and MERCRUISER BRAVO/Bravo X configurations; detailed drive servicing requires the drive manufacturer's manual. Boat-specific installations may differ from the standard engine described here.

Cylinder Head, Block and Timing Repair

Factory specifications include wear limits, oil clearances, fluid capacities and component-specific torque tables. Piston protrusion charts distinguish head gasket grades, while crankshaft bearing selection tables match journal markings to replacement bearing sizes, helping identify the appropriate parts before reassembly.

DTE engines use valve-lifter shims; STE engines use rocker arms and valve bridges. The timing sections distinguish the DTE tension spring from the STE belt tensioner.

The timing belt instructions warn that incorrect shaft positioning with the belt disengaged can cause piston-to-valve contact and damage the piston crowns and valve heads.

Fuel Injection and Turbocharger Service

Nozzle procedures distinguish the DTE capsule assembly from the STE spring-and-shim arrangement. They cover leakage, spray condition, needle lift, pre-lift and both opening pressures.

Injection pump reference data include injection characteristics, timer curves and boost-compensator charts. Yanmar directs pump and nozzle servicing to a DENSO service shop; the pump section provides component references and specifications without a complete internal overhaul sequence.

The RHE62W turbocharger specifications are accompanied by sectional and exploded views, axial and radial shaft checks, and inspection criteria for the floating bearings, thrust bearing and seal rings. The turbocharger section also provides periodic inspection guidance and fault tables for smoke, oil consumption, output loss and abnormal vibration.

Cooling, Lubrication and Front PTO

Cooling system maintenance includes fresh water cooler cleaning, pressure-cap tests, leak checks and optional Kingston cock inspection. Piping diagrams locate the intercooler, mixing elbow and fuel, oil and cooling circuits.

Lubrication coverage extends to lube oil cooler relief/check valves and piston cooling oil nozzles. The diagrams distinguish the additional seawater-cooled oil cooler used on STE/STP variants.

Engine performance curves, specific fuel consumption charts and front PTO output charts are included. The PTO section identifies permitted belt-drive arrangements and warns that exceeding the allowable output can break the crankshaft.

Starting, Charging and Fault Tracing

Starter tests cover pull-in, hold-in, pinion return and no-load operation. Alternator checks address the IC regulator, rotor, stator and rectifier.

Wiring diagrams cover the B-type panel and C/D-type combinations with a second B-type or C-type panel, with wire-color keys and coupler views. Engine troubleshooting charts address hard starting, uneven running, sudden stops, exhaust color, low output and knocking.

Special Tools and Service Precautions

Tool references include Yanmar valve-adjustment tool 119770-01110 for the DTE family and Toyota plunger stroke measuring tool 09275-54011.

Always consult a certified marine technician before executing major service work, particularly where rotating machinery, hot coolant or electrical isolation is involved.

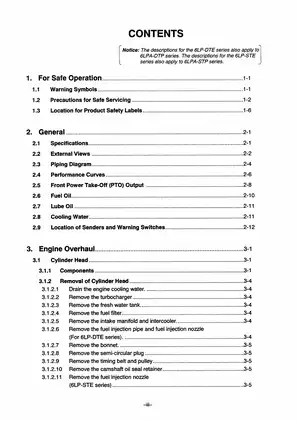

PDF Contents and Included Revision Pages

One printable English 247-page PDF contains 19 front-matter pages, 226 chapter pages and two closing publication/back-cover pages. This total already includes one extra opening cover, the six specification/performance pages added for the 6LPA revision, and the one-page additional crankshaft bearing selection table.
