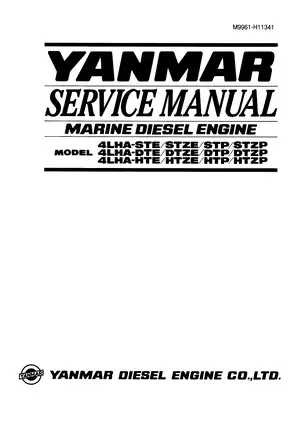

2000–2001 Yanmar 4LHA-STE/STZE/DTE/DTZE/HTE/HTZE/STP/STZP/DTP/DTZP/HTP/HTZP Marine Diesel Engine Service Manual (P/N M9961-H11341)

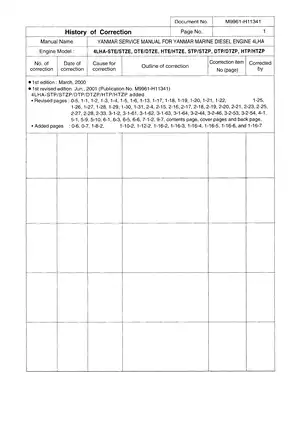

This Yanmar 4LHA marine diesel engine service manual covers the 2000–2001 models listed above. Publication M9961-H11341 is the June 2001 first revised edition, which adds STP/STZP, DTP/DTZP, and HTP/HTZP coverage to the earlier STE/STZE, DTE/DTZE, and HTE/HTZE models.

• Basic engine repair: Cylinder-block and liner inspection, cylinder-head and valve work, piston and bearing measurements, and timing-gear assembly specifications.

• Fuel injection: VE distributor and YPES-AL in-line pump inspection, governor overhaul, injection-timing checks, nozzle testing, and test-bench adjustments.

• Turbocharger service: RHC61W disassembly, component inspection, reassembly, shaft-play checks, and troubleshooting for smoke, oil consumption, noise, and poor response.

• Lubrication and cooling: Oil-pump clearance checks, oil-cooler pressure tests, sea-water pump overhaul, heat-exchanger service, and thermostat inspection.

• Marine gears: KM5A and HSW630A1 disassembly, clutch inspection, shaft and bearing adjustments, reassembly, and shifting-system service.

• Electrical diagnosis: Starter and alternator repair, charging-system fault charts, warning-device checks, tachometer tests, and model-specific wiring diagrams.

• Remote controls: Morse MT-2 and MV control-head arrangements, control-cable installation, inspection, and throttle and clutch adjustment.

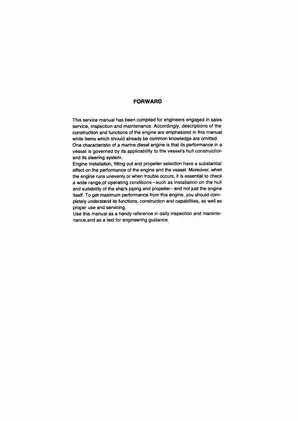

Written for service engineers carrying out inspection and maintenance, this manual assumes basic engine-service knowledge rather than teaching mechanical fundamentals.

Cylinder Block, Head, and Rotating Assembly

Exploded component views, dimensional tolerances, wear limits, and assembly specifications cover the cylinder block, head, pistons, connecting rods, crankshaft, and camshaft. Valve-seat correction, liner insertion, and the timing-gear match-mark drawing provide detail for internal engine repair.

Head assembly includes bolt-tightening sequences, while fluid capacities accompany the engine and gear specifications.

Piston-to-cylinder identification marks show permitted size combinations before parts are matched during a rebuild. The head section distinguishes the grooved exhaust valve guide from the plain intake guide and addresses distortion that can damage the gasket and cause compression leaks.

The liner section warns that hammering a liner can deform it and identifies rust on the block ledge as a cause of excessive liner projection.

Performance curves for STE, DTE, and HTE variants plot output, torque, and fuel consumption; dimensional drawings show different engine and gear installations.

Injection Pumps and Fuel-System Diagnosis

VE pump coverage includes cross-sectional and fuel-delivery cutaway views plus a test-bench piping diagram. The YPES-AL section examines plungers, delivery valves, governor components, and the automatic advancing timer.

Fault tables connect starting trouble, smoke, rough idling, and low output with fuel-supply, timing, pump, and nozzle faults. These checks help narrow the cause before the injection pump is removed.

Pump calibration requires a pump tester and dedicated measuring equipment. Listed tools include rack indicator 121978-51500 and pre-stroke measuring device 121978-51350.

Turbocharger, Lubrication, and Cooling Circuits

The RHC61W sectional view accompanies inspection of floating bearings, thrust components, seals, and the compressor impeller. Troubleshooting distinguishes turbocharger faults from intake restrictions, exhaust problems, and lubrication failures.

Fresh-water and sea-water line diagrams trace the cooling circuits. Sea-water pump procedures cover the impeller, wear plate, shaft, and mechanical seal; the fresh-water pump is inspected and replaced as an assembly.

Marine Gears, Controls, and Electrical Faults

KM5A procedures cover cone-clutch wear, torque-limiter inspection, and shaft shimming. HSW630A1 coverage extends to clutch-disc arrangement, bearing preload, and functional testing.

Drive-service scope: For detailed Bravo/Bravo X and HSW450A2 work, the specification pages refer readers to the drive maker’s manual.

Model-specific piping drawings distinguish inboard gear-oil cooling from stern-drive power-steering circuits. Wiring diagrams provide coupler layouts, wire-color codes, and optional second-station panel connections. Electrical testing covers starter components, alternator diodes and regulators, and tachometer senders.

Remote-control adjustments address cable travel and agreement between control-head positions and engine-side throttle and clutch movement.

Follow the manual’s safety precautions for fuel-system work, hot coolant, rotating parts, and electrical isolation.

A Preview of Head and Piston Inspection Data

The cylinder-head inspection table lists combustion-face distortion of 0.05 mm or less as the standard, with a separate 0.2 mm wear limit.

For piston inspection, standard outside diameter is 99.895–99.925 mm, with a 99.79 mm wear limit. The specified measurement position is 25.5 mm above the skirt bottom, at right angles to the piston pin.

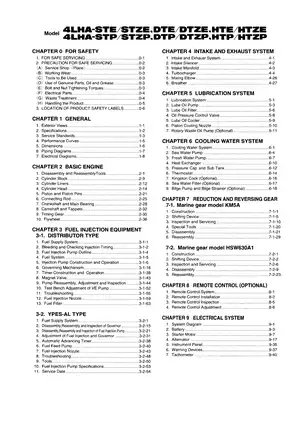

Bookmarks, Wiring Detail, and PDF Contents

Search, navigation, and wiring labels: Text search is limited to the additional front cover; the manual pages have no searchable text. Embedded bookmarks link chapters and subsections. Small wiring labels and coupler codes require zooming.

Supplied as one printable English-language PDF with 400 pages total: 399 pages of service-manual material plus one additional front cover, already included in the total.
