2004 John Deere X465 / X475 / X485 / X575 / X585 Service Manual (P/N TM2023)

• Covers the John Deere X465, X475, X485, X575, and X585 garden tractors identified in Technical Manual TM2023, June 2004, North American Version
• John Deere factory technical manual supplied as a 576-page PDF
• Engine sections cover the Kawasaki FH641D 21 HP air-cooled, FD671D 23 HP liquid-cooled carbureted, and FD711D 25 HP liquid-cooled EFI configurations
• Electrical coverage is separated for X465, X475/X575, and X485/X585 systems, with distinct instrument-panel schematics for SN -30000 and SN 30001-
• Includes specifications, component locations, theory of operation, diagnostics, tests and adjustments, electrical schematics and harnesses, and detailed repair procedures

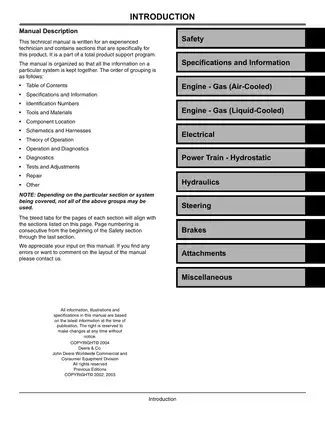

Contents Overview

Having exact factory documentation on the bench makes it much easier to separate an adjustment problem from a failed component. TM2023 keeps specifications, component locations, system theory, diagnostics, tests, adjustments, and repair information grouped by system. Major sections cover the air- and liquid-cooled engines, electrical system, hydrostatic power train, hydraulics, power steering, internal wet-disc brakes, attachments, and chassis-related miscellaneous repair.

The hydrostatic section goes well beyond basic service. It covers 2-WD and MFWD hardware, two-wheel-steer and all-wheel-steer transaxle configurations, the charge pump, directional control valves, differential lock, mid-PTO clutch and brake, optional 540 rear PTO, hydrostatic pump inspection, transaxle teardown, MFWD final drives, and front axle assemblies. Factory capacities are configuration-specific: 6.6 L (7.0 qt) for two-wheel-steer and four-wheel-drive transaxles and 5.6 L (6.0 qt) for all-wheel-steer units, using J20D Low Viscosity HY-GARD. Hydraulic test data includes 1958 kPa (284 psi) minimum charge pressure and 6371 kPa (924 psi) minimum implement relief pressure, with separate flow specifications for 2-WD and MFWD charge pumps.

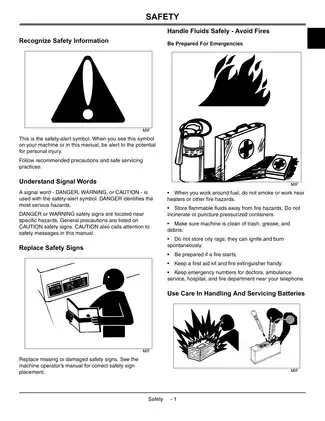

Servicing heavy lawn equipment and pressurized hydraulics involves serious physical risks. Review the manual's safety procedures before working under a raised machine, opening hydraulic lines, handling hot cooling-system components, or servicing rotating PTO equipment.

Attachment coverage is specific rather than generic. The manual includes diagnosis, adjustment, and repair information for 48C, 54C, and 62C mower decks and the 45 Loader, plus a dedicated PTO generator section with electrical schematic, stator and rotor tests, GFCI checks, gearbox work, generator disassembly, and control-panel repair.

Engine and Technical Data Preview

Factory tolerances make the difference between a usable overhaul and a repeat teardown. The FH641D is a 675 cc, 21 HP air-cooled V-twin with a 1.8 L (1.9 qt) crankcase capacity with filter. Specified oil pressure is 241–310 kPa (35–45 psi), minimum warm compression is 390 kPa (57 psi), and intake/exhaust valve clearance is 0.075–0.125 mm (0.003–0.005 in.). The engine repair section reaches into cylinder-head service, piston and ring inspection, cylinder-bore honing and resizing, camshaft and crankshaft measurement, oil-pump inspection, flywheel/stator work, and starter disassembly.

The FD671D and FD711D are 745 cc liquid-cooled engines rated at 23 HP and 25 HP. Both use a 1.8 L (1.9 qt) crankcase capacity with filter, while the cooling system holds 4.0 L (4.2 qt). Minimum warm compression is 620 kPa (90 psi), cold valve clearance is 0.15 mm (0.006 in.), and minimum oil pressure is 276 kPa (40 psi). The FD671D section covers carburetor and fuel-pump pressure testing; the FD711D adds EFI-specific injector, fuel-pressure-regulator, air-temperature, vacuum-pressure, and coolant-temperature diagnostics. Its regulator maintains injector fuel pressure at 175 kPa (25 psi).

Electrical diagnosis is equally model-specific. Examples of named diagrams and system views include Charging Circuit Electrical Schematic - All Models, Ignition Circuit Electrical Schematic - X485 and X585, Instrument Panel Circuit Electrical Schematic - All Models (SN -30000 / SN 30001-), Cooling System Operation, Hydraulic Schematic - Power Train, and Transaxle Oil Flow System Operation. The electrical section also provides connector and harness layouts, wire-color references, circuit theory, normal-condition diagnostic tables, and tests for charging, starting, ignition, PTO/RIO, fuel delivery, and the X485/X585 EFI system.

Factory procedures include carburetor clean/inspect/rebuild, engine removal and installation, cylinder-bore reconditioning, FD711D fuel-pressure and injector testing, hydrostatic transmission and charge-pump testing, PTO clutch/brake repair, MFWD axle and final-drive repair, steering-valve and cylinder testing, hydraulic control-valve and lift-cylinder leakage tests, brake service, mower-deck gearbox work, and PTO generator repair. Required-tool tables identify equipment such as the JT03503 crankcase vacuum test kit, JDG356 fuel-pump pressure test kit, JDG692 radiator test kit, JDT39 transmission gear spacer, and JT05469 hydraulic flowmeter kit.

Several repair notes are the kind that prevent expensive damage. On the FH641D, incorrect cylinder-head bolt removal can warp the head, and pulling the flywheel without the correct puller can damage the flywheel or crankshaft. In the hydraulic control valve, the spool and housing are a matched assembly; the spool belongs in its original bore, and the manual specifies new O-rings to prevent leakage after service.
