2004 John Deere X495 / X595 Garden Tractor Technical Manual - Export Version (P/N TM2158)

Technical manual TM2158 (May 2004) covers 2004 John Deere X495 and X595 garden tractors powered by the Yanmar 3TNE74 3-cylinder diesel engine. This is the Export Version, including the export lighting and trailer-wiring equipment.

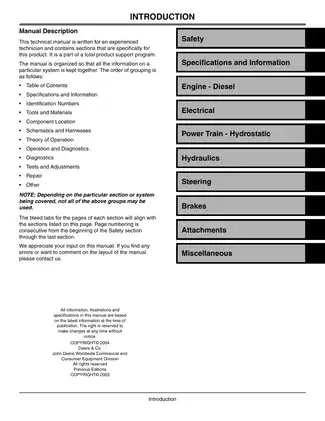

Supplied as one 442-page PDF in English.

• Engine and fuel-system repair: Engine removal, cylinder-head reconditioning, piston and crankshaft inspection, injection-nozzle service, compression testing, and fuel-transfer-pump checks.

• Electrical troubleshooting: Starting, charging, glow-plug, fuel-supply, PTO/RIO, and lighting circuits, with wiring diagrams, harness color codes, and component tests.

• Hydrostatic power train: Transaxle teardown, charge-pump tests, neutral and linkage adjustments, differential repair, MFWD front-axle service, and mid/rear PTO work.

• Hydraulics and steering: Control-valve service, lift-cylinder leakage tests and replacement, steering-valve disassembly, steering-cylinder checks, and front-wheel toe-in adjustment.

• Brakes and chassis: Brake/differential linkage adjustment, brake removal and installation, lift-linkage service, and access procedures for the fuel tank and body panels.

• Mower decks: 48C, 54C, and 62C deck diagnosis, leveling, belt replacement, blade service, spindle repair, and drive-shaft and gearbox work.

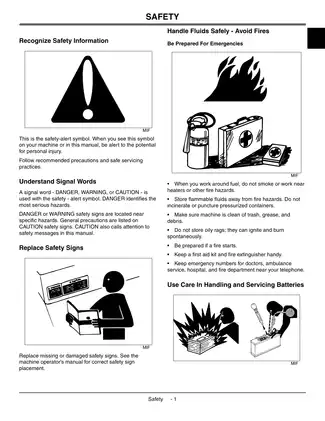

The manual is written for experienced technicians, with workshop test equipment and established service skills assumed.

Diesel Engine Repair and Fuel-System Limits

The documentation covers theory of operation, component locations, and diagnostic workflows for the cooling, lubrication, fuel, and air intake systems. Diesel Engine Component Location and Fuel System Component Location views identify the assemblies used in the diagnostic checks.

Repair data extends to valve-seat measurements, cylinder-bore inspection, bearing clearances, and cylinder-head tightening sequences. Cooling diagnosis includes the Radiator Bubble Test, thermostat testing, and radiator-cap pressure checks; water-pump and radiator removal are also covered.

Fuel injection: Nozzle tests address opening pressure, leakage, chatter, and spray pattern, supported by disassembly, cleaning, and fuel-system air-bleeding procedures. For EPA engines, the timing section specifies complete pump/governor assembly replacement when repair is required, with removal and installation restricted to authorized, factory-trained technicians.

The injection-line removal notes warn that turning the pump's delivery-valve fittings can damage the pump internally.

Electrical Diagnosis and Serial-Number Changes

The Main Electrical Schematic and Cranking Circuit Electrical Schematic accompany circuit-specific test tables. Connector views and wire-color charts cover homologated headlights, turn/marker lights, the horn, license lamp, and trailer connections.

Instrument-panel variants: Separate schematics cover SN -30000 and SN 30001-, distinguishing the earlier service indicator from the later park-brake indicator. This lets a technician choose the matching indicator circuit before tracing a fault.

Charging specifications distinguish the standard 20-amp and optional 40-amp alternators, with a separate high-capacity alternator repair section.

Hydrostatic Transmission, MFWD, and PTO

Power-train procedures distinguish 2WD and MFWD assemblies, including their differentials, hydrostatic pump and motor components, and optional rear PTO. Charge-pump flow and pressure tests, mid-PTO engagement/brake tests, and cruise-control linkage checks accompany the teardown procedures.

PTO brake exploded views and clutch inspection data support internal repair. The tool list identifies the JDT39 transmission gear spacer for PTO-clutch disassembly and assembly.

The reassembly cautions explain how tightening a misaligned rear cover against the transaxle can damage the cover or case.

Hydraulic Controls, Steering, and Brakes

The Hydraulic Schematic - Power Train shows how the charge circuit supplies the transmission, steering, lift cylinder, and auxiliary controls. Valve-operation illustrations distinguish neutral, raise, float, and optional regeneration functions.

Separate leakage tests
