Chevrolet Impala & Caprice 1968–1985 Repair Manual Set

773 Pages • ZIP Download: 178 Printable PDFs (English)

4.5starstarstarstarstar_half(2)
$19.57 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Chevrolet Models Covered & Key Technical Specifications

Models: 1968–1985 Chevrolet Impala, 1968–1985 Chevrolet Caprice, 1971–1973 Chevrolet Vega 2300cc; 1965–1973 Chevrolet engine reference articles.

Models & Model Codes:

Impala — 1BL35 (4-door wagon), 1BL47 (2-door hardtop), 1BL69 (4-door notchback sedan)

Caprice Classic — 1BN35 (4-door wagon), 1BN47 (2-door hardtop), 1BN69 (4-door notchback sedan)

Monte Carlo — 1AZ37 (2-door hardtop)

Malibu — 1AT27 (2-door notchback coupe), 1AT35 (4-door wagon)

Malibu Classic — 1AW27 (2-door notchback coupe), 1AW69 (4-door notchback sedan)

Corvette — 1YY87 (2-door hardtop)

Additional models / applications: Selected sections for Biscayne, Bel Air, Chevelle SS, Monte Carlo, Nova and Corvette; printed-circuit references for Malibu, El Camino and GMC Caballero. Coverage varies by document and system.

VIN identification: In the main guide's 17-character VIN chart, position 5 identifies the series (L = Impala, N = Caprice Classic, Z = Monte Carlo, T = Malibu, W = Malibu Classic, Y = Corvette). Positions 6–7 identify the body style.

B-body engine identification: VIN position 8 identifies the engine in the same chart. A = Buick 3.8L V6 2-barrel (LD5), H = Chevrolet 5.0L V8 4-barrel (LG4), J = Chevrolet 4.4L V8 2-barrel (L39), K = Chevrolet 3.8L V6 2-barrel (LC3), L = Chevrolet 5.7L V8 4-barrel (LM1), N = Oldsmobile 5.7L V8 diesel (LF9).

Vega 2300cc engine suffixes (1-barrel manual / 1-barrel automatic / 2-barrel manual / 2-barrel automatic):

  • 1971: CHC / CHA / CHD / CHB

  • 1972: CNA, CGB / CND, CGD / CNB / CSK, CBM

  • 1973: CAA, CAJ / CAB, CAH / CAD, CAL / CAC, CAK

  • The 1974 Vega 2300cc article lists the same suffixes as the 1973 table.

Full-size Chevrolet transmission references: 3-speed column-shift manual, Muncie and Saginaw 4-speed manuals, 2-speed Powerglide automatic, and 3-speed Turbo Hydra-Matic 200, 350 and 400 automatics. Procedures vary by unit.

Model Years: 1968–1985


  • Engine configurations: Inline-4, inline-6, V6 and V8; small-block, Mark IV big-block and diesel applications.

  • Chevrolet engine repair displacement range: 2300cc (140 cu. in.) through 454 cu. in.

  • Engine references: 153-cu.-in. four and 2300cc Vega; 194/230/250 inline-sixes; 229/231 V6s; 267/283/302/305/307/327/350/400 small-block V8s; 396/402/427/454 big-block V8s; 350 diesel.

  • Electrical systems: Delco-Remy starters, integral-regulator alternators, fuse/circuit-breaker layouts and selected wiring, printed-circuit and accessory references.

  • Driveline and chassis: Integral-housing rear axles, clutch-pack and cone-brake limited-slip differentials, Saginaw steering gears, rack-and-pinion systems and model-specific suspension.

  • Service specifications: Component-specific torque tables, tune-up data, fluid capacities, clearances, wear limits, ride-height and wheel-alignment information.

Chevrolet Manual Features & Selected Content Preview

Publication Pages
Chevrolet Repair & Tune-Up Guide, 1968–1985 full-size Chevrolet, including Impala and Caprice 262

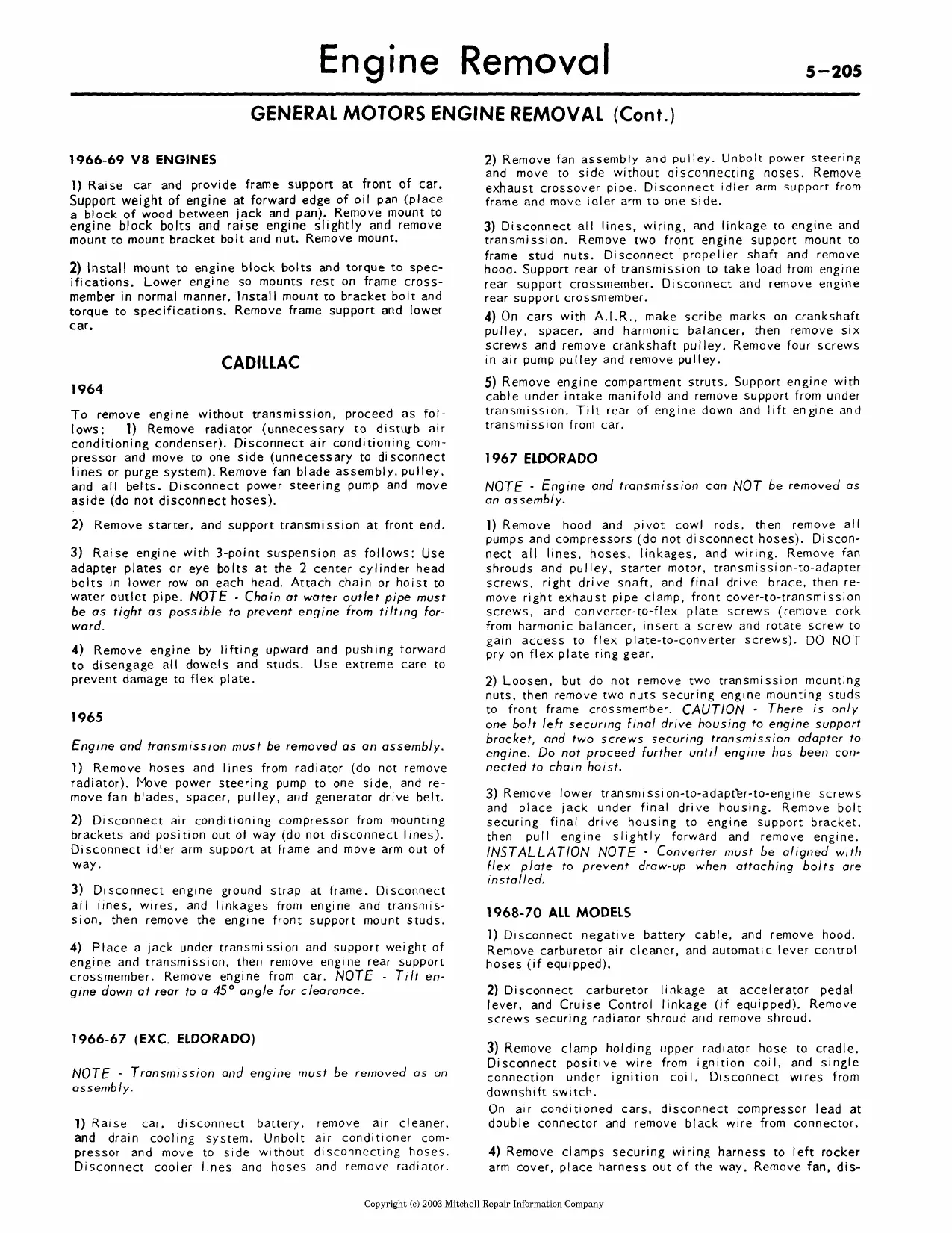

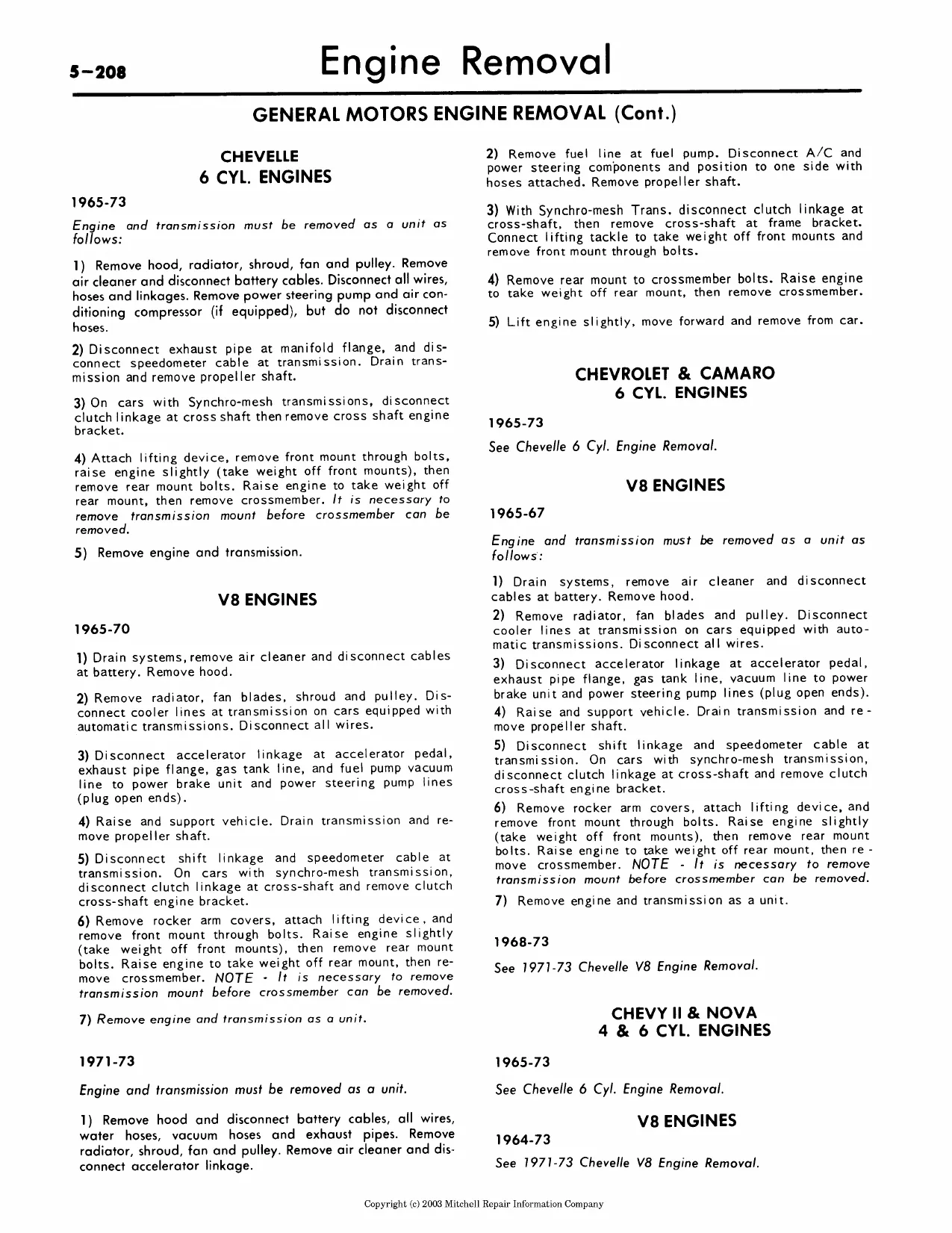

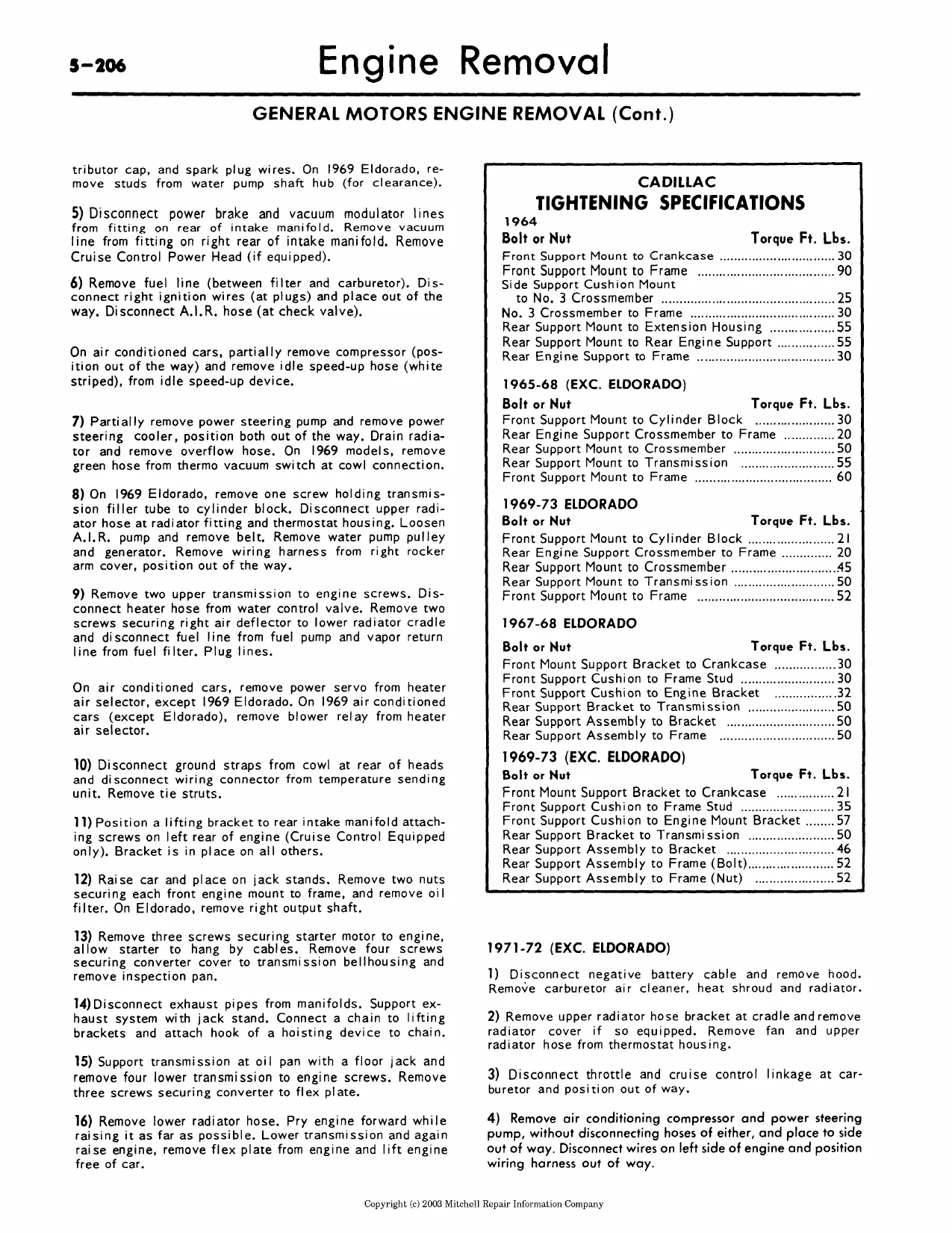

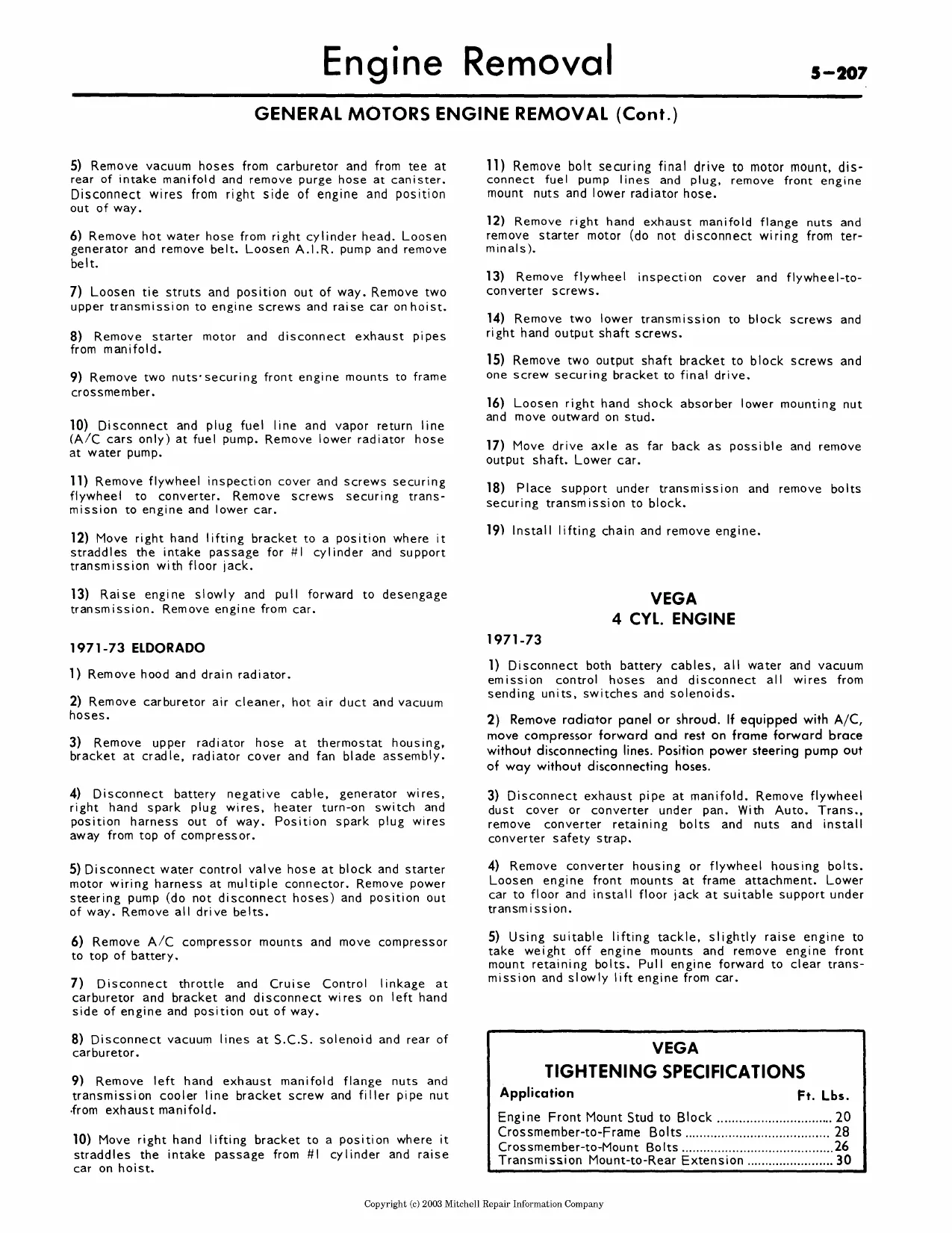

Mitchell engine and cooling articles, including Chevrolet engine variants and GM engine removal 65
Mitchell wiring diagrams and printed circuits, including 1983 Impala wiring 44
Mitchell electrical and accessory articles, including 1983 Impala accessories 76
Mitchell driveline and rear-axle articles for selected GM applications 141
Mitchell steering articles for selected GM applications 44
Mitchell suspension articles for selected GM applications 141

Use the main guide for maintenance, troubleshooting, and repair. The supplemental articles add application-specific diagrams, component tests, and overhaul procedures. Match the model, body type, and equipment listed in the relevant article before selecting a procedure.

The main guide covers clutch service, transmission removal and installation, linkage adjustment, and fluid checks. Internal transmission rebuilding is outside its scope. Vehicle wiring diagrams are supplied in the supplements, with coverage varying by model and year.

PDF Search and Diagram Readability

Text search and navigation: The main guide has an OCR text layer with recognition errors. The five 1983 accessory PDFs have searchable prose. The separate 1983 Impala wiring PDF has searchable headings and captions. Most other supplements lack searchable technical text, and none of the PDFs have embedded bookmarks.

Small wire codes and connector labels often need zooming. Some Cruise Master labels remain blurred, and all four diagram pages in the 1983 Impala wiring PDF are cropped at the bottom. The first page of the 1978 Chevette rear-suspension article is unreadable below its heading.

The ZIP contains 178 printable English-language PDFs totaling 773 pages. The total includes the main guide’s contents and quick-reference pages and one nontechnical closing page in the power-window article.


Engine, Electrical, and Chassis Service

This selection of procedures and references is part of a broader guide that also includes compression testing and symptom charts for rough idle and poor fuel economy.

  • Engine repair: Engine removal, cylinder-head and valve-gear service, camshaft and timing drive work, crankshaft and piston inspection, and lubrication-system service.
  • Fuel and cooling: Rochester carburetor overhaul and adjustment, diesel injection-pump testing and replacement, and radiator, thermostat, and water-pump service.
  • Starting and charging: Delco-Remy starter and integral-regulator alternator tests and overhaul, plus model-specific fuse and circuit-breaker layouts.
  • Electrical diagnosis: Selected wiring diagrams and instrument-cluster printed circuits, with test and replacement procedures for power windows, locks, seats, Cruise Master, and vacuum pumps.
  • Clutch and driveline: Clutch and shift-linkage checks, driveshaft and U-joint service, propeller-shaft alignment, and rear-axle and limited-slip differential overhaul.
  • Steering, suspension, and brakes: Saginaw steering gears, manual and power rack-and-pinion units, spring and control-arm service, disc and drum brakes, and hydraulic bleeding.
  • Shop reference data: Tune-up settings, tightening tables, fluid capacities, clearances, wear limits, ride height, alignment figures, and identified service tools.

The main guide explains routine work for DIY mechanics. The supplemental tests and overhaul procedures suit experienced DIY mechanics and technicians equipped with the specified gauges, pullers, and spring-control tools.

Engine Overhaul and Fuel-System Diagnosis

The guide gives step-by-step instructions for camshaft-bearing replacement with the J-6098 tool set. The overhaul chapter also covers timing chains, gears, and belts, piston and bearing inspection, and oil-pump service. It identifies operations intended for a machine shop.

The harmonic-balancer procedures specify puller removal and drawing the damper into place. Prying or hammering can damage the damper or disturb front-cover seal alignment. The C-4 and Computer Command Control sections cover basic self-diagnosis. Complete fault isolation is outside their scope.

Wiring Diagrams and Accessory Tests

Selected 1968–1978 diagrams include Biscayne, Bel Air, Impala, Caprice, Chevelle SS, and Monte Carlo applications. The 1980 printed circuits cover Malibu, Monte Carlo, El Camino, and GMC Caballero instrument clusters. The separate 1983 Impala file has engine-compartment, fuse-block and underdash, instrument-panel, and rear-compartment diagrams.

The accessory articles pair the Cruise Master vacuum and wiring diagram, four-door power-window diagram, and electric vacuum-pump connector view with circuit tests. The window article identifies Impala and Caprice as B-body applications, so you can find the matching regulator and motor procedure.

Axle, Steering, and Brake Work

The axle articles distinguish conventional integral-housing units from clutch-pack and cone-brake limited-slip designs. They cover axle-shaft service, bearing preload, and gear-contact checks. The U-joint section cautions that vise pressure can deform the driveshaft tube and affect balance.

Sectional and exploded views show Saginaw ball-bearing worm-and-nut gears, rotary-valve power steering, and Corvette linkage. Suspension articles cover coil-spring, leaf-spring, and strut layouts, with ride-height checks and procedures for ball joints, shocks, wheel bearings, and stabilizer bars.

Brake procedures cover four-piston and sliding front calipers, master cylinders, wheel cylinders, and parking-brake adjustment. Use rated supports and the specified spring-control equipment for under-car and coil-spring work. The main guide identifies the J-22944 spring cradle and warns against suspending a caliper by its hose.

Sample Piston Clearance and Cruise-Control Test Values

For the 1971–1973 Vega 2300cc engine, the piston table specifies 0.0018–0.0028 in. of piston clearance for inspection during overhaul.

In the 1983 Impala Cruise Master article, the servo diaphragm test calls for 14 in. of vacuum at the servo tube opening and allows a drop of no more than 5 in. in one minute.
