Evinrude E-TEC 250/300 HP Outboard Service Manual, 2008 (P/N 5007533)

Covers 2008 Evinrude E-TEC 250 HP High Output and 300 HP outboards, detailing powerhead service, EMM calibration, and system diagnostics. Published by BRP US Inc., Technical Publications, this service manual is identified as P/N 5007533.

Searchable Service Text and Wiring Diagram Detail

Search, bookmarks, and diagrams: Service text is searchable, with embedded bookmarks for chapters and subsections. Some diagram labels are not searchable. Small pin numbers in the main engine wiring diagram require zooming.

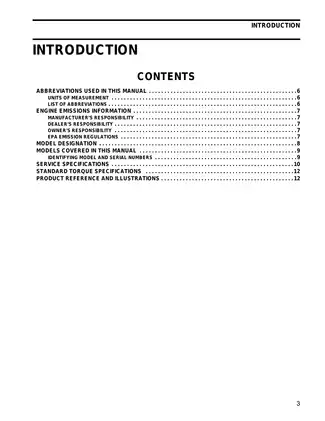

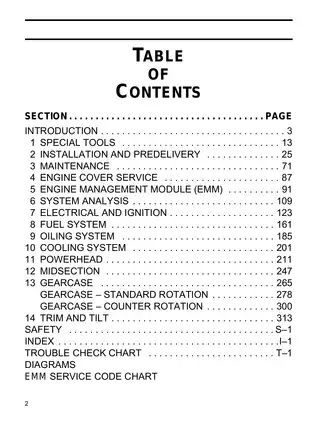

The download is one printable, English-language, 396-page PDF, including 344 pages of introductory material and 14 service sections, plus 24 safety pages. Also included are a nine-page index, six Trouble Check Chart pages, seven diagram pages, a two-page EMM Service Code Chart, two covers, and two blank divider pages.

Powerhead, EMM, and Lower Unit Service

The following selected service topics outline the repair coverage. Other subjects include engine-cover service and procedures for recovering submerged outboards.

• Powerhead repair: Step-by-step removal, disassembly, inspection, and reassembly procedures, including cylinder bores, pistons, connecting rods, crankshaft bearings, and cylinder heads.

• EMM and electrical diagnosis: Cylinder-drop tests, fault-code interpretation, ignition and charging tests, starter-circuit diagnosis, timing verification, and Throttle Position Sensor (TPS) calibration.

• Fuel system: Pressure and vacuum tests, injector replacement and programming, fuel manifold service, vapor separator replacement, and throttle-body and reed-plate service.

• Oiling system: Pump electrical and flow tests, oil-supply vacuum testing, distribution-hose replacement, system priming, and oil-control programming.

• Cooling system: Water-flow diagrams, temperature checks, thermostat inspection, pressure-relief valve service, and diagnosis of overheating or low operating temperature.

• Gearcase overhaul: Standard and counter rotation procedures, bearing and seal service, driveshaft shimming, shift-rod adjustment, leak testing, and water-pump rebuilding.

• Midsection and trim/tilt: Exhaust-housing and bracket service, hydraulic leakdown testing, motor and relay checks, and trim/tilt cylinder disassembly and resealing.

Written for qualified, factory-trained technicians already familiar with Evinrude/Johnson special tools, this manual assumes workshop experience.

System Analysis and EMM Calibration

The diagnostic sections support workshop troubleshooting by linking operating symptoms to component tests and service specifications. Cylinder-drop and fuel-control tests help distinguish cylinder-specific problems before injectors or ignition components are replaced.

EMM coverage explains Start Assist Circuit (SAC) operation, idle control, RPM limiting, shift interrupt, and sensor-generated faults. Hard, stored, and persistent faults are distinguished, with logging and engine-history reports supporting intermittent-problem diagnosis.

Programming and calibration procedures call for Evinrude Diagnostics software, P/N 764642, and the diagnostic interface cable, P/N 437955. EMM replacement includes engine-data transfer and synchronization of electronic timing with crankshaft position.

A spark checker can generate radio-frequency interference that disrupts EMM operation; the documented static ignition test uses diagnostic software and an inductive timing light.

Fuel Injection and Lubrication Service Limits

Replacement injector flow coefficients and cylinder assignments must match EMM programming; incorrect installation can cause powerhead failure. The fuel section also covers injector crush-ring replacement and fuel-pressure relief.

The vapor separator and circulation pump are serviced as an assembly. Intake service includes reed-plate inspection, but damaged reed-valve assemblies are replaced rather than dismantled.

Oil-system coverage distinguishes TC-W3 and XD100 programming and explains break-in oiling after a powerhead rebuild. Oil Supply and Oil Recirculation Diagrams show how lubricant reaches the bearings and cylinders.

Cooling, Maintenance, and Rigging

Cooling diagnosis separates thermostat-controlled operation from pressure-relief operation and traces water through the EMM and vapor separator. The Hose Routing and Water Flow Diagram supports hose identification.

Maintenance schedules, spark-plug indexing, corrosion protection, self-winterization, and pre-season checks are included. Installation material covers control cables, battery-switch arrangements, CANbus connections, and dual-outboard alignment.

When working on high-pressure fuel circuits or advanced electrical systems, always adhere to standard workshop safety practices to prevent injury or component damage.

Powerhead and Gearcase Rebuild Detail

Internal engine inspection includes bore taper and out-of-round limits, ring checks, crankshaft-journal measurements, and connecting-rod cap alignment. Assembly sections provide component-specific torque requirements and sealing instructions.

Separate L2 and M2 procedures identify the appropriate shimming equipment and bearing-housing installation methods. Counter rotation gearcases use distinct components and service procedures; standard and counter rotation parts must not be interchanged.

Hydraulic Testing and Circuit References

Trim/tilt coverage explains impact relief, manual release, pressure leakdown diagnosis, and cylinder resealing. The pump manifold is replaced as an assembly rather than internally repaired. Midsection instructions also address exhaust-housing distortion and steering-shaft bushings.

Battery and Switch Wiring Diagrams, the EMM Inputs and Outputs Diagram, and the Fuel System Circuit Diagram accompany the electrical checks. The engine wiring diagram identifies connector pins and wire colors, including the 55 V circuit.

Selected CPS and Ignition Coil Test Values

The CPS resistance specification is 560 Ω ±10% at 77°F (25°C), alongside synchronization checks in the sensor-test section.

Ignition Coil Tests lists primary resistance of 0.090 ±0.005 Ω and secondary resistance of 301 ±14 Ω, both at 77°F (25°C).
