Honda TRX250EX Sportrax ATV 2001–2005 Service Manual

Honda service manual for the 2001–2005 TRX250EX Sportrax ATV, covering scheduled maintenance, troubleshooting and repair of the engine, drivetrain, chassis and electrical systems.

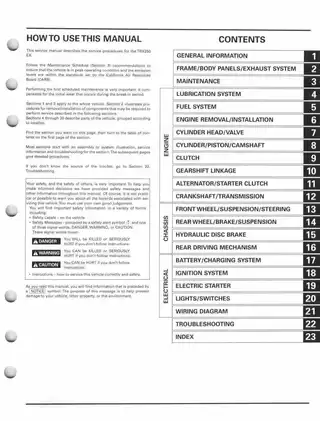

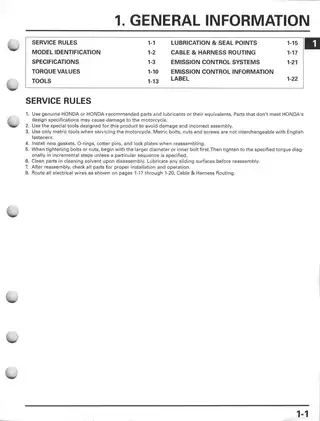

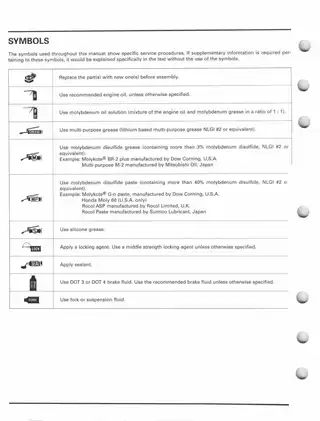

Search, Bookmarks and Wiring Detail

Text search and diagram detail: OCR text supports searches throughout the manual, although recognition errors can affect exact terms and diagram labels. Embedded bookmarks cover the chapters and separate U.S. and Canada wiring diagrams. Small wire-color labels in the full wiring diagrams require zooming.

One printable, English-language 304-page PDF, including the cover and eight memo pages.

Engine, Drivetrain and Electrical Service

These selected service topics outline the repair coverage. Other documented work includes spark-arrester cleaning and headlight aiming.

• Engine repair: Step-by-step procedures for cylinder-head disassembly, valve-guide replacement, piston and camshaft service, crankcase separation and crankshaft inspection.

• Fuel and lubrication: Carburetor overhaul, pilot-screw adjustment, high-altitude settings, oil-pump inspection and oil-cooler removal and installation.

• Clutch and transmission: Centrifugal and change-clutch service, gearshift-linkage repair, reverse-stopper inspection, transmission disassembly and shift-fork checks.

• Rear driving mechanism: Axle removal, final-drive disassembly, bearing replacement, backlash inspection and gear-tooth contact-pattern checks.

• Brakes and suspension: Front hydraulic-disc brake bleeding and overhaul, rear drum-brake service, wheel-bearing replacement, steering repair and swingarm-pivot service.

• Electrical diagnosis: Charging and ignition tests, starter-motor overhaul, starter-clutch inspection, switch continuity checks and U.S./Canada wiring diagrams.

Written for qualified professional technicians with the training, tools and equipment required for the documented service work.

Engine Access, Carburetor and Clutch Work

The engine-service notes help mechanics plan teardown by distinguishing in-frame cylinder-head, piston, camshaft and clutch work from crankshaft, transmission and oil-strainer service requiring engine removal.

Cylinder-head coverage extends to valve-seat inspection and refacing, rocker-arm measurements and valve-guide reaming. Camshaft installation includes timing-mark alignment and tensioner checks, while piston inspection covers ring end gaps, groove clearance and cylinder wear.

The carburetor chapter explains the idle-drop pilot-screw procedure and altitude-specific settings. Float level is inspected rather than adjusted. Special-tool references include carburetor float-level gauge 07401-0010000 and clutch holder 07HMB-HB70100.

The clutch instructions address crankshaft-thread damage at the staked, left-hand drum lock nut; the carburetor instructions warn of pilot-screw seat damage from overtightening.

Final-Drive Setup, Steering and Brakes

Final-drive setup relates shim selection to backlash and tooth contact. The Gear Tooth Contact Pattern Check illustrates normal, high and low contact on the drive and coast sides.

An overly thick ring-gear shim can lock the gears as the case cover is tightened, a condition addressed in the assembly instructions.

Chassis illustrations show ball-joint press setups and swingarm-pivot bearing replacement. Brake coverage distinguishes the front hydraulic discs from the rear mechanical drum, with internal master-cylinder and caliper inspection alongside rear brake-cam and shoe service.

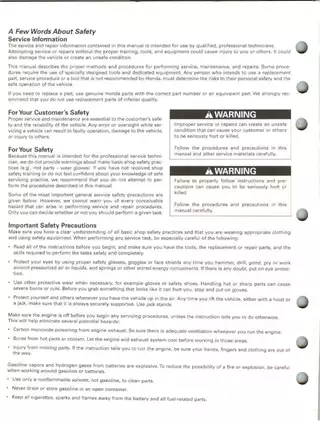

Support the ATV securely during wheel and suspension work, and follow the manual’s brake-service precautions before returning it to use.

Charging, Starting and Fault Isolation

Charging-system troubleshooting separates battery condition, current leakage, alternator faults and regulator/rectifier wiring problems. Starter diagnosis distinguishes a motor that will not turn from a motor that turns without cranking the engine.

The Battery/Charging System and Electric Starter circuit schematics complement the Cable & Harness Routing illustrations. Separate full-vehicle wiring diagrams show U.S. and Canadian arrangements, including Quebec-specific brake-light circuits in the Canadian diagram.

Reference tables provide component-specific torque values, battery-voltage thresholds, ignition timing and spark-plug specifications. Engine and rear final-gear oil capacities appear in metric and customary units, alongside piston-ring and valve-guide wear limits. The engine is air-cooled.

Valve-Clearance and Ignition-Test Examples

The valve-clearance section specifies 0.13 mm (0.005 in) for both intake and exhaust, checked with the engine cold, below 35°C (95°F). This is valve lash, distinct from valve stem-to-guide clearance.

The ignition pulse-generator test specifies a minimum peak voltage of 0.7 V while cranking with the starter motor, with normal cylinder compression and the spark plug installed. The test uses a peak-voltage tester or adapter.
