Honda Models Covered & Key Technical Specifications

Models: TRX420, Fourtrax Rancher

Sub-models / Variants: TRX420FE (4WD/Electric Shift Program), TRX420FM (4WD/Foot Operated Gearshift), TRX420TE (2WD/Electric Shift Program), TRX420TM (2WD/Foot Operated Gearshift)

Model Years: 2007–2008


  • Engine: Single cylinder, liquid-cooled, OHV, 420 cc displacement

  • Transmission: 5-speed constant mesh with reverse, automatic centrifugal wet clutch

  • Fuel System: PGM-FI (Programmed Fuel Injection) with 34 mm throttle bore

  • Engine Oil Capacity: 2.7–3.1 liters (after draining/disassembly)

  • Coolant Capacity: 1.5 liters (radiator and engine)

  • Ignition System: Full transistorized ignition

Honda Manual Features & Selected Content Preview

Honda service manual for the 2007–2008 TRX420TM, TRX420TE, TRX420FM, and TRX420FE FourTrax Rancher. It covers the 2WD and 4WD configurations with foot-operated shifting or Electric Shift Program (ESP).

PDF Bookmarks and Wiring Diagram Detail

Search, navigation, and diagram labels: PDF text search is not available. Embedded bookmarks provide access to the contents and all 26 sections. Small wiring-diagram labels require zooming, and some of the smallest pin and wire codes remain blurred when enlarged.

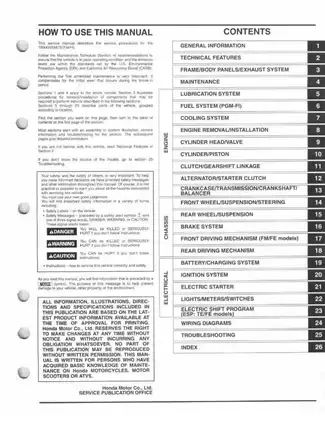

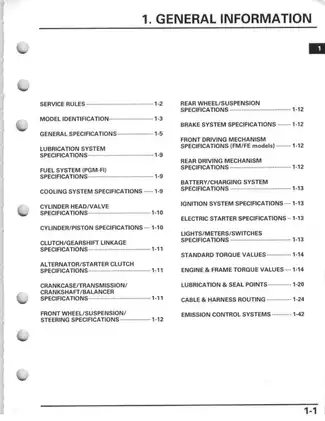

One 498-page printable PDF in English, including the cover, three introductory pages, and seven memo pages.


Engine, Drivetrain, and PGM-FI/ESP Service

The following selected topics illustrate the repair coverage. Other included subjects include body-panel and exhaust-system removal, plus reverse-lock cable adjustment.

  • Maintenance and cooling: Scheduled service, valve-clearance and clutch adjustments, radiator-cap and system pressure tests, thermostat inspection, coolant replacement, air bleeding, and water-pump seal replacement.

  • Engine repair: Step-by-step procedures for engine removal and installation, cylinder-head disassembly, valve-guide replacement, valve-seat refacing, camshaft timing, and cylinder/piston inspection.

  • Clutch and transmission: Centrifugal and change-clutch service, gearshift linkage, crankcase separation, transmission teardown, shift-drum and fork inspection, crankshaft/balancer service, and starter-clutch repair.

  • Final drives: FM/FE front drive shafts, propeller shaft, front final clutch, and differential repair, plus rear axle and final-drive service across the covered range.

  • Chassis and brakes: Wheel hubs and knuckles, suspension arms, shocks, steering shaft and tie rods, swingarm service, front master-cylinder/caliper repair, hydraulic bleeding, and rear drum-brake service.

  • PGM-FI and electrical diagnosis: DTC charts, symptom troubleshooting, connector views, charging and ignition tests, starter-circuit diagnosis, and separate TM/FM and TE/FE wiring diagrams.

  • ESP diagnosis: TE/FE pre-checks, shared PGM-FI/ESP fault diagnosis, shift-angle and gear-position checks, gearshift-switch testing, and shift-control-motor/reduction-gear service.

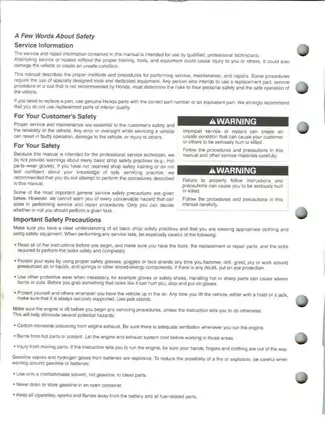

Honda directs this service and repair information to qualified professional technicians and assumes basic Honda maintenance knowledge. The procedures require the corresponding test equipment, special tools, and shop-safety training.

Engine and Transmission Repair

In-frame versus engine-out work: Rocker-arm, cylinder-head, valve, camshaft, and cylinder/piston service can be performed with the engine installed. Internal transmission, crankshaft/balancer, alternator-stator, flywheel, and starter-clutch service requires engine removal. These distinctions help plan the extent of disassembly before a job starts.

The top-end chapters cover compression testing, pushrods, valve guides and seats, cam-chain timing, cylinder wear, piston rings, and service limits. Internal transmission procedures include gear, bushing, shaft, shift-fork, and shift-drum inspection, with assembly illustrations and bearing-replacement instructions.

Foot shift and ESP: TM/FM models use a left-foot gearshift with automatic clutch operation; they do not use a hand-operated clutch. TE/FE models use handlebar shift switches and a PCM-controlled motor. The change-clutch sections distinguish the disc/plate arrangements and spring specifications for these configurations.

Final-Drive Setup, Steering, and Brakes

Final-drive work is treated as a setup job, not just parts replacement. Front and rear gearcase chapters cover pinion and ring-gear inspection, tooth-contact patterns, backlash, bearing and seal replacement, and shim selection. FM/FE differential procedures also include limited-slip torque inspection and face-cam component checks.

Steering procedures distinguish TM/TE toe-in from FM/FE toe-out. Suspension coverage includes ball-joint and swingarm-bearing replacement. The brake sections provide inspection limits for the hydraulic front discs and mechanical rear drum, alongside component disassembly and reassembly procedures.

Lubrication and Cooling-System Service

Oil-pump and relief-valve procedures accompany the lubrication-system diagram. Maintenance sections cover engine oil and filter changes, final-drive lubricants, and the mechanically selected FM/FE 2WD/4WD cable adjustment.

Cooling-system coverage extends to radiator and fan removal, thermostat testing, and water-pump mechanical-seal replacement. The pump procedure specifies replacement of the impeller and pump shaft when the mechanical seal is renewed.

PGM-FI, ESP, and Electrical Fault Tracing

Fuel injection: The manual provides MIL readout and DTC-erasing procedures, PCM/ECM terminal checks, fuel-pressure and flow testing, and diagnosis of MAP, TP, ECT, IAT, bank-angle, injector, fuel-pump, and idle-air-control circuits. TP sensor replacement is accompanied by a reset procedure.

ESP: TE/FE troubleshooting distinguishes mechanical shifting problems from electrical faults. It covers vehicle-speed and shift-angle sensors, the gear-position switch, shift switches, and motor circuits. The shared PGM-FI/ESP fault information helps explain why an engine-management fault can also interrupt electric shifting.

Battery-current leakage, charging voltage, alternator-coil resistance, ignition peak voltage, starter-motor inspection, and relay tests are also covered. Meter diagnosis includes the PCM-to-combination-meter serial communication line.

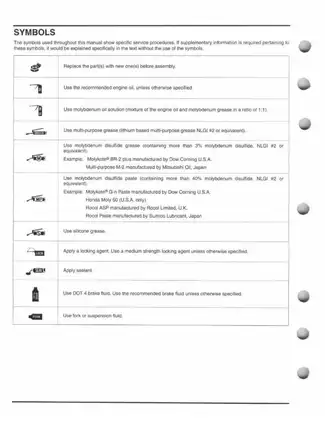

Named visual references include the PGM-FI system diagram, lubrication-system diagram, cooling-system flow pattern, battery/charging system diagram, ESP system diagram, and variant-specific wiring diagrams. Torque tables, clearances, wear limits, electrical test values, and lubrication/sealant maps accompany the relevant service information.

Special Tools and Shop Cautions

Tool callouts include SCS connector 070PZ-ZY30100, HDS pocket tester TDS 3557-0112-01 for U.S.A. applications, fuel-pressure gauge 07406-0040004 with U.S.A. alternative 07406-0040008, and differential inspection tool 07KMK-HC50101. Pullers, drivers, holders, reamers, and locknut adapters are identified for the corresponding jobs.

The manual warns that disturbing the white-painted throttle-body fasteners can cause malfunction, and that excessive vise pressure can damage a final-drive housing. It also distinguishes actual fastener torque from torque-wrench readings when leverage-increasing adapters are used.

Fuel-system work involves pressurized gasoline, hot cooling-system service can cause scalding, and opened brake hydraulics require correct bleeding and contamination control; follow the manual’s safety procedures and equipment requirements throughout the repair.

Selected Valve-Clearance and Radiator-Cap Specifications

For the covered engine, the valve-clearance section specifies intake clearance of 0.15 ± 0.02 mm and exhaust clearance of 0.23 ± 0.02 mm with the engine cold, below 35°C (95°F).

The cooling-system testing section specifies radiator-cap relief pressure of 108–137 kPa (16–20 psi).
