Honda TRX300EX Sportrax & TRX300X 2007–2009 ATV Service Manual (P/N 61HM362)

Honda factory service manual P/N 61HM362 covers maintenance, diagnosis, and repair for the 2007–2009 TRX300EX Sportrax and TRX300X ATVs, following their shared air-cooled single-cylinder platform.

PDF Search, Chapter Bookmarks, and Page Count

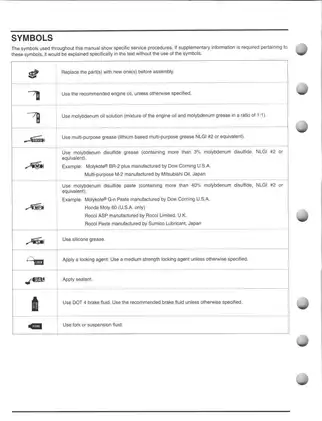

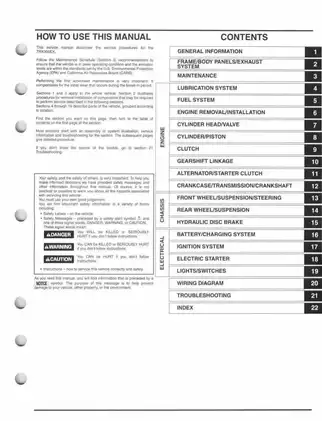

Search and diagram detail: Most pages have searchable OCR text, but recognition errors and some technical pages without searchable text limit results. Embedded bookmarks provide access to the contents and technical chapters. Small wiring-diagram labels need zooming.

One printable PDF, 36.96 MB, contains 366 pages, including 352 pages of technical material and index, one cover, three introductory pages, and ten memo pages.

Engine Overhaul, Chassis Service, and Fault Tracing

The following selected coverage highlights show the main workshop areas. Additional topics include body-panel removal and spark-arrester maintenance.

• Engine and lubrication: Compression testing, camshaft and valve-timing work, cylinder-head and piston repair, oil-pump inspection, strainer cleaning, and relief-valve service.

• Carburetor service: Removal, disassembly, inspection, cleaning, reassembly, and installation, including the float system, jets, accelerator pump, pilot-screw idle-drop adjustment, and high-altitude setup.

• Clutch and transmission: Cable-operated wet-clutch repair, reverse-shifter and gearshift-linkage service, crankcase separation, transmission teardown, and crankshaft/balancer work.

• Chassis and steering: Wheel-hub and bearing replacement, suspension-arm service, shock-absorber removal and installation, steering-shaft and tie-rod work, toe adjustment, and rear axle/bearing-holder repair.

• Hydraulic brakes: Fluid replacement and air bleeding, pad and disc inspection, front and rear master-cylinder and caliper overhaul, parking-brake adjustment, and brake-pedal service.

• Charging and ignition: Battery-condition and current-leakage tests, charging-voltage diagnosis, regulator/rectifier and alternator checks, ignition peak-voltage testing, ICM diagnosis, and ignition-timing inspection.

• Starter and switch circuits: Starter-motor overhaul, relay and diode tests, switch-continuity checks, and a full wiring diagram with switch-continuity references.

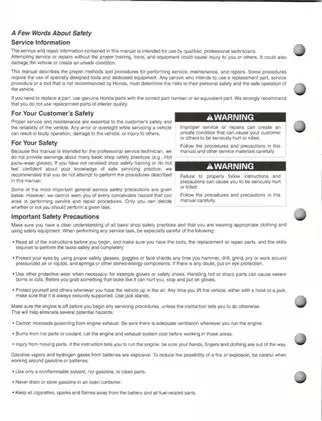

The service information is written for qualified technicians and assumes the training, tools, and equipment needed for professional service and repair.

Engine Repair Depth and Job Planning

Most sections open with an assembly or system view, service information, and symptom-based troubleshooting before moving into detailed procedures. That organization makes it practical for fault tracing as well as planned overhaul work.

Step-by-step top-end instructions include valve-guide replacement, valve-seat refacing, camshaft-bearing replacement, and rocker-arm installation. Inspection criteria and wear limits accompany the related disassembly and assembly procedures.

In-frame work versus engine removal: Cylinder-head, camshaft, cylinder/piston, lubrication, clutch, alternator/starter-clutch, and starter-motor work can generally be handled with the engine in the frame where the section allows it. Internal transmission and crankshaft/balancer repair requires engine removal and crankcase separation.

That distinction helps plan workspace, engine support, replacement seals, and special tools before disassembly.

Carburetor Calibration and Lubrication Cautions

The high-altitude section distinguishes modified jetting from standard settings and warns that using the high-altitude configuration at lower elevations can overheat the engine.

Carburetor cautions explain how overtightening the pilot screw damages its seat and how cleaning passages with wire can damage the carburetor body. Oil-filter installation notes flag the severe engine damage possible if the filter is installed backward.

Drivetrain and Rear-Axle Assembly Details

Deeper drivetrain coverage includes primary-drive-gear service, stator and flywheel removal, starter one-way-clutch inspection, shift-drum and shift-fork checks, crankshaft/balancer timing, and crankcase-bearing replacement.

Chassis instructions include swingarm-bearing replacement and identify reusable parts, one-time fasteners, left-hand threads, sealing points, and required final adjustments. The rear-axle section distinguishes actual axle-locknut torque from torque-wrench readings when the special wrench changes leverage.

Electrical Fault Tracing and System Diagrams

The final troubleshooting chapter extends beyond individual systems, covering hard starting and no-start conditions, lack of power, poor low-speed or high-speed performance, and handling complaints. It directs the technician back to the relevant fuel, ignition, compression, drivetrain, brake, steering, or suspension checks.

The lubrication-system diagram and cable/harness-routing views support mechanical assembly. Battery/charging, ignition, and electric-starter system diagrams support circuit diagnosis alongside the full machine wiring diagram.

Model-Year Notes and Factory References

Year-specific callouts cover changes after the 2007 model year, including emission-label location, fuel-permeation equipment, tire-information presentation, and tie-rod joint-boot inspection. These notes help distinguish the applicable inspection points and configurations across the model years.

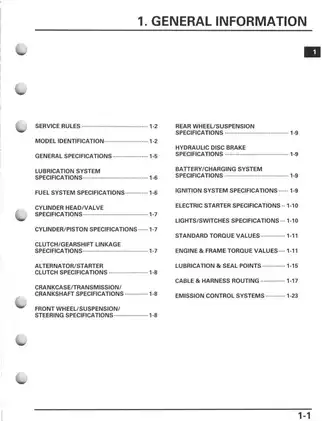

Reference tables include capacities, adjustment data, wear limits, and clearances. The maintenance schedule, component torque tables, electrical test specifications, and lubrication/seal-point charts support scheduled service and reassembly.

Factory tool listings identify the drive-chain tool set 07HMH-MR10103 and carburetor float-level gauge 07401-0010000. They also specify the valve-spring compressor 07757-0010000 and rear-axle locknut wrench 07916-HA20000.

The manual calls for proper vehicle support, ventilation around running engines, and strict fire precautions when working near gasoline or the battery.

Valve-Clearance and Float-Level Examples

For valve-clearance inspection, the manual specifies 0.10 mm (0.004 in) for both intake and exhaust with the engine cold, below 35°C (95°F).

The carburetor float-level specification is 18.5 mm (0.73 in), measured with the float valve seated and the float arm just touching it. The manual identifies this as an inspection dimension; the float level is not adjustable.
