2003-2007 Cadillac CTS Vehicle Dismantling Manual
Detailed guide for dismantling 2003-2007 Cadillac CTS vehicles, covering all activity areas from pretreatment to engine components. PN GMP/07-D1-ELV.
Manual Preview
Sample pages from the 2003-2007 Cadillac CTS Vehicle Dismantling Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
2003-2007 Cadillac CTS (GMP/07-D1-ELV) - 2007 Vehicle Dismantling Manual The ultimate guide for dismantling your Cadillac CTS, covering every aspect from start to finish.
- Authorized Data: 4500+ pages provide the most comprehensive information for dismantling procedures.
- Critical Material Breakdown: Details specific materials used in components, aiding in proper disposal and recycling.
- Operational Overview: Covers 7 distinct activity areas, ensuring thoroughness in vehicle breakdown.
- Fundamental Component Identification: Lists all parts with reference numbers and associated materials for clarity.
- Specific Disassembly Procedures: Outlines steps for engines, interior trim, exterior components, and more.
- Core Weight Metrics: Includes total material weight for components to assist in material management.
Professional Workshop Service Manual & Technical Specifications
Precision Maintenance Manual: Cadillac CTS manual, covers 2003-2007 Parts-Reference
System-Coverage: All models // Serial-Range: 2003-2007 / System-Coverage: Vehicle Dismantling
| Metric | Operational-Logic | Validation-Data |
|---|---|---|
| Vehicle | Cadillac CTS | Sedan LHD/RHD |
| Year Range | 2003-2007 | - |
| Manual Type | Vehicle Dismantling Manual | GMP/07-D1-ELV |
The service manual covers disassembly procedures for various vehicle components, including but not limited to engine compartment parts, interior trim, exterior elements, and seating. This thorough manual details component identification and material composition, aiding in the systematic breakdown of the vehicle. The manual meticulously documents the procedures for dismantling all major sections of the Cadillac CTS, providing a structured approach for technicians.

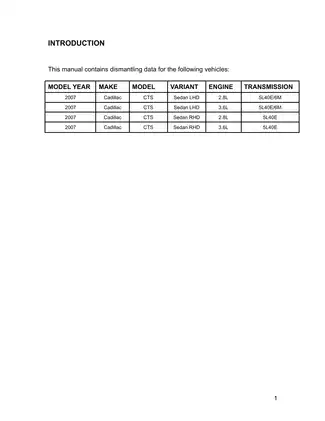

Introduction
This manual contains dismantling data for the following vehicles:
| MODEL YEAR | MAKE | MODEL | VARIANT | ENGINE | TRANSMISSION |
|---|---|---|---|---|---|
| 2007 | Cadillac | CTS | Sedan LHD | 2.8L | 5L40E/6M |
| 2007 | Cadillac | CTS | Sedan LHD | 3.6L | 5L40E/6M |
| 2007 | Cadillac | CTS | Sedan RHD | 2.8L | 5L40E |
| 2007 | Cadillac | CTS | Sedan RHD | 3.6L | 5L40E |
Activity Area 0 -- Pretreatment
The manual details the pretreatment phase, outlining specific materials and quantities for components like the engine oil filter, coolant, and passenger air bags.
Activity Area 1 -- Doors and Glazing
This section covers the dismantling of doors and glazing, including the windshield, front door windows, and rear stationary glass with their respective weights.
Activity Area 2 -- Exterior Trim
Details the removal of exterior trim components such as the grille, front bumper fascia, and rocker panels, specifying materials like TEO and PP.
Activity Area 3 -- Instrument Panel
Documents the disassembly of the instrument panel, including the dash end panel and radio bezel, highlighting the materials used.
Activity Area 4 -- Seating
Covers the dismantling of the seating components, including front and rear seat foam and headrests, specifying PUR material.
Activity Area 5 -- Interior Trim
Details the removal of interior trim pieces like door sill plates and B-pillar garnish moldings, specifying PP and TEO materials.
Activity Area 6 -- Engine Compartment
Provides procedures for dismantling engine compartment parts such as the air cleaner housing, radiator shroud, and coolant reservoir.
Activity Area 7 -- Load Space
Covers the dismantling of components within the load space area, such as the jack storage tray.
