Chevrolet CK Pickup Truck 1987–1992 Repair Manual Set

533 Pages • ZIP Download: 4 Printable PDFs • 276.20 MB

4.5starstarstarstarstar_half(4)
$19.16 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Chevrolet Models Covered & Key Technical Specifications

Models: CK Pickup Truck

Sub-models / Variants: C1500, K1500, C2500, K2500, C3500, K3500, 454 SS, Regular Cab, Extended Cab, heavy-duty 1-ton (C3HD; special brake and front-suspension diagnosis and repair referred to specialists)

Model Years: 1988–1992 (1988, 1989, 1990, 1991, 1992)


  • Engine Displacement Options: 4.3L V6 (RPO LB4), 5.0L V8 (RPO L03), 5.7L V8 (RPO L05), 7.4L V8 (RPO L19)

  • Cylinder Bore: 3.74 inches (5.0L), 4.00 inches (5.7L)

  • Engine Oil Pressure: V6 and small-block V8 engines: minimum 6 psi at 1000 RPM and 18 psi at 2000 RPM; 7.4L V8: 10 psi at 500 RPM and 40–60 psi at 2000 RPM

  • Exhaust Manifold Bolt Torque: V6 and small-block V8 engines: 26 ft-lbs for center bolts, 20 ft-lbs for outer bolts through 1990, and 32 ft-lbs for 1991 outer bolts; small-block V8 stainless-steel manifolds: 26 ft-lbs; 7.4L V8: 40 ft-lbs

  • Wheel Lug Nut Torque: 90–100 ft-lbs

  • Manual Transmission Variants: Five-speed (RPO MG5), normal-duty four-speed (RPO MCO), heavy-duty four-speed (RPO M20)

  • Automatic Transmission Variants: Three-speed 3L80/3L80-HD (400/475), four-speed 4L60 (700R-4), electronically controlled four-speed Hydra-matic 4L80-E; 4L80-E diagnosis and repair are referred to specialists

Chevrolet Manual Features & Selected Content Preview

Publication Pages
Chevrolet/GMC C/K pickup repair manual — 1988–1992 gasoline 2WD and 4WD trucks with 4.3L V6, 5.0L/5.7L small-block V8, and 7.4L Mark IV big-block V8 engines 329
How to Rebuild the Small-Block Chevrolet — first-generation small-block rebuilding reference, including the truck-relevant 305 and 350; supplied as an extract 152

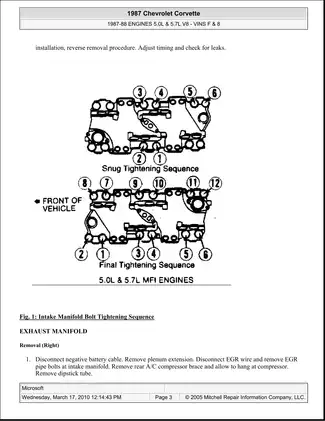

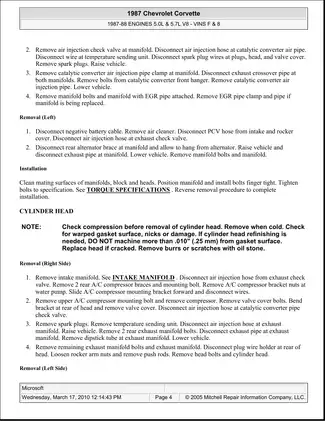

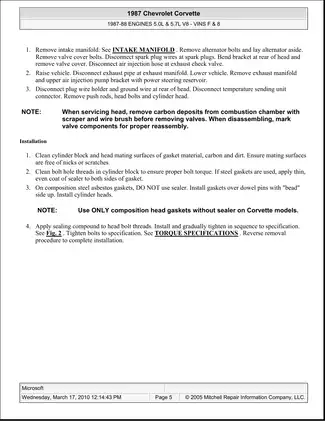

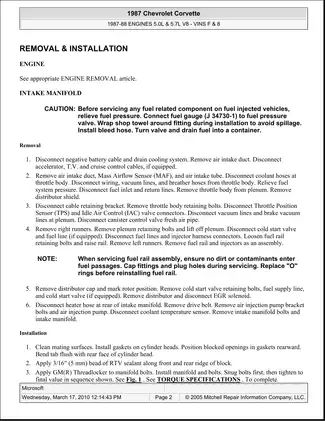

Mitchell 1987–88 Engines: 5.0L & 5.7L V8 — VINs F & 8 — Camaro/Firebird LB9 and L98 applications, plus Corvette L98 27
Small Block Chevy Rebuild — illustrated small-block assembly refresher 25

Use the pickup manual for vehicle-specific service and the engine-building references for additional guidance on small-block preparation, parts fitting, and assembly.

Coverage boundaries: The Mitchell article covers passenger-car TPI engines; it does not extend the pickup manual’s TBI coverage. The rebuilding-book extract ends with a Work-A-Long Sheet page in Appendix A; the Source Guide listed as Appendix B is not included.

PDF Search, Diagram Detail and File Contents

Text search and diagram access: All four PDFs support text search. The pickup manual and rebuilding-book extract use OCR, which can miss words and misread diagram labels. None has embedded PDF bookmarks. Small connector numbers and wire labels in the pickup wiring diagrams require zooming.

The ZIP contains four printable PDFs totaling 533 pages. This total already includes six front-matter pages and three supplied Appendix A pages in the rebuilding-book extract, plus one additional notice page in the illustrated refresher.


Pickup Service, Drivetrain Repair and Small-Block Rebuilding

The following selected coverage highlights show the main workshop areas. Other included topics range from door-glass and latch service to windshield-wiper motor replacement.

  • Engine service and overhaul: Step-by-step in-vehicle repairs, engine removal, cylinder-head servicing, internal inspection and measurement, reassembly, pre-oiling, startup, and break-in.

  • TBI fuel and emissions: Fuel-pressure testing, pump and tank removal, injector service, ECM trouble codes, PROM/CALPAK handling, and oxygen-sensor, EST, ESC, EGR, AIR, EVAP, and PCV checks.

  • Transmissions and four-wheel drive: Manual-transmission removal and seal service, automatic-transmission diagnosis and adjustments, transfer-case servicing, and internal New Process 241 overhaul.

  • Brake service: Disc-caliper, drum-brake, wheel-cylinder, and master-cylinder procedures, hydraulic bleeding, parking-brake adjustment, RWAL information, and vacuum/Hydro-boost component replacement.

  • Suspension, steering and driveline: Clutch hydraulics, driveshafts, U-joints, rear axles, CV joints, hubs, torsion bars, coil and leaf springs, steering gears, and alignment fundamentals.

  • Cooling and climate control: Radiator and water-pump replacement, thermostat testing, fan-clutch service, heater-component removal, and air-conditioning component replacement with professional refrigerant handling.

  • Electrical diagnosis and illustrations: Ignition, starting, and charging checks; open-, short-, and ground-circuit tests; component-location drawings, exploded views, and representative multi-sheet wiring diagrams.

The pickup manual is suited to home mechanics tackling maintenance and component repairs, while precision engine work requires suitable measuring equipment and transmission overhaul calls for specialist experience.

Before beginning repair work, support the truck only at the specified lifting points, relieve fuel-system pressure before opening any line or throttle-body component, and have the air-conditioning system professionally discharged before service.

Engine Repairs and Small-Block Parts Fitting

The pickup volume separates repairs possible with the engine installed from engine-out overhaul. In-vehicle procedures cover valve-train components, intake and exhaust manifolds, cylinder heads, timing components, camshaft, oil pump, crankshaft seals, and engine mounts.

The rebuilding-book extract adds parts selection, machine-shop preparation, cleaning, and preassembly fitting. Checks include crankshaft endplay, bearing oil clearance, camshaft fit and degreeing, ring end gap, and connecting-rod side clearance.

Piston-to-head and piston-to-valve checks, rocker-arm geometry, oil-pump pickup positioning, and compression-ratio measurement extend the fitting coverage. These checks help establish whether the selected components work together before final assembly.

The illustrated refresher follows a basic four-bolt-block assembly after cleaning and honing. It is a generic visual overview rather than C/K-specific service information and relies on the applicable shop manual for final specifications.

Transmission and Transfer-Case Limits

Manual-transmission coverage includes removal, installation, seals, and exploded component drawings; internal overhaul is referred to a transmission shop. Automatic-transmission procedures cover general diagnosis, maintenance, linkage and TV-cable adjustments, seals, and removal/installation rather than internal rebuilding. 4L80-E diagnosis and repair require specialist service.

Transfer-case overhaul instructions apply specifically to the New Process 241. Borg-Warner external-component illustrations support seal service without establishing equivalent internal-overhaul coverage.

Special-tool references include GM J-23028 for controlled front coil-spring removal and J-29369-1 with J2619-01 for NP241 bearing work. The NP241 assembly cautions explain how damage to the oil-pump pickup-tube O-ring can cause pump failure.

Fuel Controls and Circuit Diagnosis

The ALDL trouble-code material and component checks help distinguish fuel-control faults from ignition or mechanical problems. TBI service cautions address the spring-loaded pressure regulator: disassembly can cause injury, damage the assembly, and leave a fuel leak.

Wiring examples include Throttle Body Injection, Fuel Control/Idle Air Control, and Starting/Charging Circuits. Additional multi-sheet diagrams cover Turn Signal and Hazard Lights, Instrument Panel, and Power Windows. These are representative commonly needed circuits, rather than a complete diagram collection for every covered year.

Heavy-Duty Chassis and 454 SS Scope

The pickup manual identifies C3HD heavy-duty 1-ton brake and front-suspension arrangements but directs their diagnosis and repair to a qualified facility. Its ordinary disc/drum and independent-front-suspension procedures should not be treated as instructions for those special systems.

The volume includes Mark IV big-block procedures and a Chevrolet 454 SS identification photo, rather than a dedicated 454 SS-only repair chapter.

Selected Piston and Ring Inspection Specifications

For the pickup manual’s V6 and small-block V8 engines, standard piston-to-bore clearance is 0.0007–0.0017 in, with a 0.0027 in service limit.

The same overhaul tables distinguish compression-ring positions: top-ring end gap is 0.010–0.020 in, while second-ring end gap is 0.010–0.025 in.
