Honda CB750F2 Factory Repair Manual 1992–1997

201 Pages • ZIP Download: 1 Printable PDF • 25.71 MB

4.5starstarstarstarstar_half(2)
$18.85 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Honda Models Covered & Key Technical Specifications

Model: CB750F2

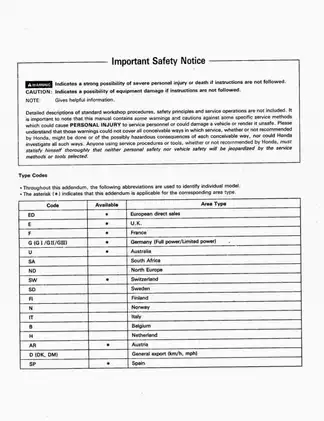

Sub-models / Variants: European direct sales (ED), U.K. (E), France (F), Germany (GI/GII/GIII), Australia (U), Switzerland (SW), Austria (AR), Spain (SP)

Model Years: 1992–1997 (1992, 1993, 1994, 1995, 1996, 1997)


  • Engine: In-line four, 747 cc, air-cooled, DOHC

  • Compression ratio: 9.3:1

  • Transmission: 5-speed

  • Clutch: Multi-plate, wet, mechanical type

  • Drive system: Chain drive

  • Ignition system: Full transistor ignition

  • Charging system: Triple phase output alternator

Honda Manual Features & Selected Content Preview

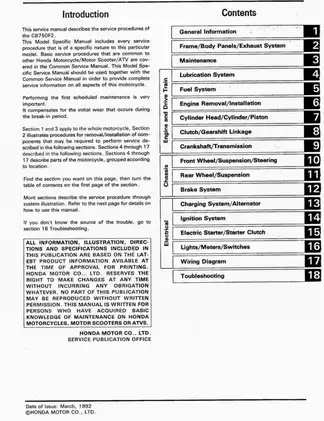

Honda Motor Co., Ltd.’s model-specific CB750F2 factory service manual, issued March 1992, covers repair, maintenance and electrical diagnosis with market-specific fuel-system data. Honda specifies using it with the separate Common Service Manual, which is not included.

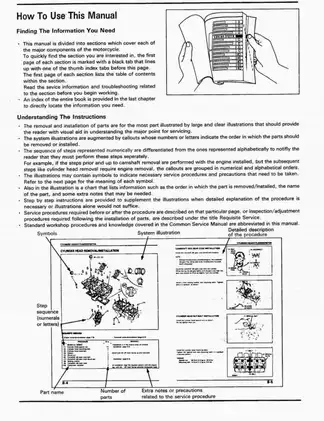

PDF Search, Bookmarks and Wiring Detail

Search and diagram readability: PDF text search is not available. Embedded bookmarks use image filenames rather than chapter names. Small wiring-diagram labels require zooming, and some remain blurred.

The ZIP download contains one 201-page printable PDF, including four introductory pages, four memo pages and a two-page index.


Engine, Carburetor and Chassis Service

These selected coverage highlights are not a complete contents list; other topics include body-panel and exhaust-system removal.

  • Engine repair: Step-by-step procedures for engine removal and installation, camshaft and cylinder-head work, piston removal, and hydraulic-tappet inspection and bleeding.

  • Lubrication: Oil-pump removal and disassembly, oil-cooler replacement, oil-pressure testing, and a Lubrication System Diagram showing the engine’s oil circuits.

  • Clutch and transmission: Clutch removal and assembly, gearshift-linkage service, crankcase separation, transmission disassembly, crankshaft installation, and bearing-selection charts.

  • Suspension and steering: Fork overhaul, steering-stem bearing service, rear shock spring removal and assembly, swingarm disassembly, and pivot-bearing replacement.

  • Brake service: Front and rear pad replacement, master-cylinder and caliper removal and assembly, front brake-hose replacement, and brake-system troubleshooting.

  • Electrical diagnosis: Charging-system tests, ignition and pulse-generator checks, starter-motor and starter-clutch service, lighting and instrument checks, and market-specific wiring diagrams.

Honda wrote this manual for readers who already have basic Honda maintenance knowledge and familiarity with standard shop procedures.

Engine Work and Bearing Selection

The engine uses a silent multi-link cam chain and hydraulic tappets. Cylinder-head, cylinder/piston, clutch and oil-pump service can be performed with the engine in the frame; transmission, crankshaft and starter-clutch work requires engine removal.

Cylinder Head Disassembly/Assembly and Transmission Disassembly/Assembly illustrations pair component layouts with installation notes. Main-journal and connecting-rod bearing charts match crankcase, rod and crankshaft codes to replacement-bearing colors.

The reference tables provide bore-and-stroke data, intake and exhaust cam-lobe heights, crankpin clearances, and oil capacities for draining, filter changes and disassembly. Standard values and service limits support measuring parts before replacement; component-specific torque tables cover final assembly.

Valve-guide and valve-seat specifications and tool references are included, while detailed valve-guide replacement is referred to the Common Service Manual.

Tool references include hydraulic tappet bleeder 07973-MJ00000 and clutch center holder 07JMB-MN50300. The manual warns that improvised wire tools can damage hydraulic tappets and identifies gear-tooth damage risks during clutch outer guide installation.

Market-Specific Carburetor Data

Fuel-system coverage is notably market-specific. Carburetor identification is VE66E for E/F/ED/SP/U, VE66G for AR, VE66H for GI, VE66J for GII, VE66L for GIII, and VE66K for SW.

Those distinctions matter when selecting the correct repair data for carburetor setup and emissions-related checks. The SW and AR types have a secondary-air supply system with reed valves and an air injection control valve.

The Carburetor Separation drawings show the carburetor-bank arrangement, while the overhaul section details vacuum-chamber, float-chamber and bystarter components. A pilot-screw idle-drop procedure is included for SW models. Synchronization coverage supplies adapter locations, adjusting-screw locations and specifications; the detailed synchronization procedure is in the Common Service Manual.

Suspension and Hydraulic Brakes

Chassis data covers the double-cradle frame, telescopic fork, swingarm rear suspension and hydraulic disc brakes. Tables include suspension travel, fork-fluid capacity and level, rear-damper nitrogen pressure, and front-axle torque.

Fork assembly references seal driver 07947-KA50100 and identifies the fork-tube edge as a damage risk for new oil seals. Rear shock coverage includes spring service and disposal precautions.

The brake sections specify DOT 4 fluid and show master-cylinder and caliper assembly details. Brake-fluid replacement and air bleeding are referred to the Common Service Manual.

Electrical Tests and Fault Tracing

Charging-system diagnosis includes current-leakage, regulated-output and alternator tests. Ignition diagnosis uses no-spark troubleshooting charts, coil checks and pulse-generator testing, with peak voltage adaptor 07HGJ-0020100 identified among the test tools. Spark-plug gap specifications are also provided.

Four Wiring Diagrams cover E/ED/F/SW/SP, G, U and AR types. Switch-continuity charts and Cable & Harness Routing drawings support tracing circuits and checking market-specific connections.

Troubleshooting charts address hard starting, power loss, poor low- and high-speed performance, handling problems and noisy hydraulic tappets.

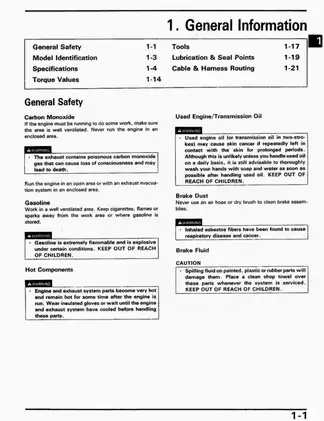

Always ensure a well-ventilated workspace and wear appropriate protective gear when handling fuel, oils, brake fluid or battery electrolyte.

Preview: Carburetor Settings and Engine Inspection Data

Pilot-screw initial openings are 2 turns out for E/F/ED/SP/U/G, 2-1/4 turns for AR, and 2-3/4 turns for SW. Air injection control valve vacuum specifications are 350 mmHg for SW and 300 mmHg for AR.

The oil-pressure reference is 630 kPa (90 psi) at 6,000 rpm with oil at 80°C/176°F. Main-journal oil clearance is 0.020–0.054 mm, with a 0.06 mm service limit.
